2D mouse world coordinates in scene view

Community Showcases
1

I repeatedly felt that there was a missing feature in the Unity Editor: The simple display of the world coordinates of the current mouse position in the scene view. So, I implemented this little script that I want to share here. There were some forum posts regarding the calculation of the coordinates, but they were outdated, as I discovered. This script is up-to-date and works with the latest LTS, which is Unity 2022.3, and it has been tested on Windows 11.

Here are the key features of this little script:

  • It displays the current world coordinates of the mouse cursor within a draggable window in the scene view
  • It works during both edit mode and play mode
  • Works in prefab mode
  • It includes some main menu entries to enable/disable the window and to reset the window position
  • It is restricted to the 2D mode of the scene view
  • It uses the new input system (package: com.unity.inputsystem)

Known issues:

  • (Fixed in improved version) Sometimes the scene view window background is not drawn
  • (Fixed in improved version) Updates the coordinates when the mouse cursor is not inside the scene view

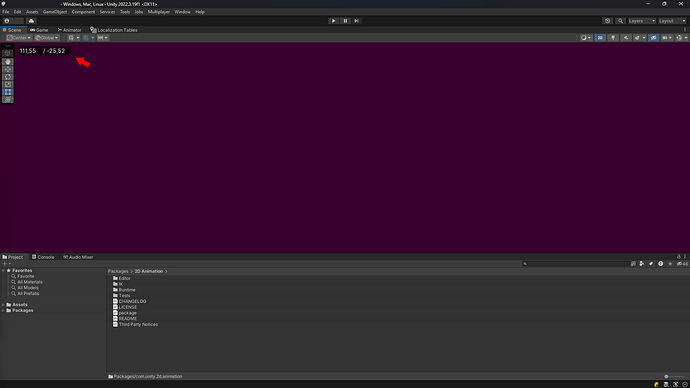

Screenshot:

9784584--1404516--upload_2024-4-23_11-56-22.png1920×1080 68.7 KB

EDIT: Added an improved version of the script and a screenshot.

Thats the new script, which is improved:
MouseWorldSceneWindow (Improved version)

#nullable enable
#if UNITY_EDITOR

using System.Globalization;
using System.IO;

using UnityEditor;

using UnityEngine;
using UnityEngine.InputSystem;

namespace My.Common.Scripts.Editor
{
  /// <summary>
  /// A window in the scene view that shows the current world coordinates of the mouse cursor in 2D mode.
  /// </summary>
  /// <remarks>
  /// Creates some assets in the project for the GUI skin and the window background texture.
  /// </remarks>
  [InitializeOnLoad]
  public class MouseWorldSceneWindow
  {
    private static Vector3 _currentMouseWorldPosition;
    private static GUISkin? _customSkin;
    private static Vector2Int _formerMouseScreenPosition;
    private static bool _isWindowEnabled;

    private static double _nextUpdateTime;
    private static Rect _windowRect = new(0, 0, 150, 20);

    private const string BaseAssetPath = @"Assets\My\Common\Resources\UI\Styles\" + MouseWorldSceneWindow.MouseWorldSceneWindowName;
    private static readonly Vector2 DefaultPosition = new(50f, 10f);
    private const string GuiSkinAssetPath = MouseWorldSceneWindow.BaseAssetPath + @"\GUISkin.asset";
    private const string MouseWorldSceneWindowName = nameof(MouseWorldSceneWindow);
    private const string ResetSceneWindowMenuName = "Tools/SceneView/Reset " + MouseWorldSceneWindow.MouseWorldSceneWindowName;
    private const string ToggleSceneWindowMenuName = "Tools/SceneView/Toggle " + MouseWorldSceneWindow.MouseWorldSceneWindowName;

    /// <summary>
    /// The update frequency of the mouse world position.
    /// The divisor defines the update times per second.
    /// </summary>
    private const double UpdateFrequency = 1 / 30d;

    private const string WindowBackgroundTextureAssetPath = MouseWorldSceneWindow.BaseAssetPath + @"\T_WindowBackground.asset";
    private const string WindowEnabledEditorPrefsName = MouseWorldSceneWindow.MouseWorldSceneWindowName + "/WindowEnabled";
    private const string WindowPositionXEditorPrefsName = MouseWorldSceneWindow.MouseWorldSceneWindowName + "/SceneWindowPositionX";
    private const string WindowPositionYEditorPrefsName = MouseWorldSceneWindow.MouseWorldSceneWindowName + "/SceneWindowPositionY";

    /// <summary>
    /// Static constructor that initializes the window.
    /// </summary>
    static MouseWorldSceneWindow()
    {
      // Load preferences
      var desiredWorkingState = EditorPrefs.GetBool(MouseWorldSceneWindow.WindowEnabledEditorPrefsName, true);
      MouseWorldSceneWindow._windowRect.x = EditorPrefs.GetFloat(MouseWorldSceneWindow.WindowPositionXEditorPrefsName, MouseWorldSceneWindow.DefaultPosition.x);
      MouseWorldSceneWindow._windowRect.y = EditorPrefs.GetFloat(MouseWorldSceneWindow.WindowPositionYEditorPrefsName, MouseWorldSceneWindow.DefaultPosition.y);

      MouseWorldSceneWindow.CreateGUISkin();

      // Toggle the working state
      MouseWorldSceneWindow.ToggleEnabledState(desiredWorkingState);
    }

    /// <summary>
    /// Create the GUI skin for the scene window.
    /// </summary>
    private static void CreateGUISkin()
    {
      MouseWorldSceneWindow._customSkin = AssetDatabase.LoadAssetAtPath<GUISkin>(MouseWorldSceneWindow.GuiSkinAssetPath);

      // Because of skinning does not seem to work when called at first, do it a few times
      if (!MouseWorldSceneWindow._customSkin || MouseWorldSceneWindow._customSkin == null)
      {
        Color semiTransparentBackground = new Color32(0, 0, 0, 160);
        Color textColor = new Color32(224, 224, 224, 255);

        var windowTexture = MouseWorldSceneWindow.CreateWindowBackgroundTexture((int)MouseWorldSceneWindow._windowRect.width, (int)MouseWorldSceneWindow._windowRect.height,
          semiTransparentBackground, 5);

        var customSkin = ScriptableObject.CreateInstance<GUISkin>();
        customSkin.window.normal.background = windowTexture;
        customSkin.window.onNormal.background = windowTexture;
        customSkin.window.focused.background = windowTexture;
        customSkin.window.onFocused.background = windowTexture;

        var labelStyle = new GUIStyle();
        labelStyle.fontSize = 16;
        labelStyle.normal.textColor = textColor;
        labelStyle.onFocused.textColor = textColor;
        labelStyle.hover.textColor = textColor;
        customSkin.label = labelStyle;

        MouseWorldSceneWindow._customSkin = customSkin;

        MouseWorldSceneWindow.EnsureFolder(MouseWorldSceneWindow.BaseAssetPath);
        AssetDatabase.CreateAsset(windowTexture, MouseWorldSceneWindow.WindowBackgroundTextureAssetPath);
        AssetDatabase.CreateAsset(customSkin, MouseWorldSceneWindow.GuiSkinAssetPath);
      }
    }

    /// <summary>
    /// Creates the background texture for the window.
    /// </summary>
    private static Texture2D CreateWindowBackgroundTexture(int width, int height, Color col, int borderRadius)
    {
      var tex = new Texture2D(width, height);
      var colors = new Color[width * height];
      var cornerReferencePoints = new[]
      {
        new Vector2(borderRadius, borderRadius),
        new Vector2(width - borderRadius, borderRadius),
        new Vector2(borderRadius, height - borderRadius),
        new Vector2(width - borderRadius, height - borderRadius),
      };

      for (var y = 0; y < height; y++)
      {
        for (var x = 0; x < width; x++)
        {
          bool isBorder;

          var coord = new Vector2(x, y);

          if (coord.x < cornerReferencePoints[0].x && coord.y < cornerReferencePoints[0].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[0]) > borderRadius;
          }
          else if (coord.x > cornerReferencePoints[1].x && coord.y < cornerReferencePoints[1].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[1]) > borderRadius;
          }
          else if (coord.x < cornerReferencePoints[2].x && coord.y > cornerReferencePoints[2].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[2]) > borderRadius;
          }
          else if (coord.x > cornerReferencePoints[3].x && coord.y > cornerReferencePoints[3].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[3]) > borderRadius;
          }
          else
          {
            isBorder = false;
          }

          colors[y * width + x] = isBorder ? Color.clear : col;
        }
      }

      tex.SetPixels(colors);
      tex.Apply();

      return tex;
    }

    private static void DrawWindow(int windowID)
    {
      // Show the mouse world position
      const string FormatString = "F2";
      GUILayout.Space(3);
      GUILayout.BeginHorizontal();
      GUILayout.Space(5);
      GUILayout.Label(MouseWorldSceneWindow._currentMouseWorldPosition.x.ToString(FormatString, CultureInfo.CurrentCulture), GUILayout.Width(60));
      GUILayout.Space(5);
      GUILayout.Label("/", GUILayout.Width(5));
      GUILayout.Space(5);
      GUILayout.Label(MouseWorldSceneWindow._currentMouseWorldPosition.y.ToString(FormatString, CultureInfo.CurrentCulture));
      GUILayout.EndHorizontal();
      GUILayout.Space(3);

      // Make the window draggable
      GUI.DragWindow();
    }

    /// <summary>
    /// Ensure the specified folder exists.
    /// </summary>
    /// <param name="folderPath">The folder to be checked for existence. When not existing, it will be created.</param>
    /// <returns>True when the folder has just been created.</returns>
    private static bool EnsureFolder(string folderPath)
    {
      if (!AssetDatabase.IsValidFolder(folderPath))
      {
        string[] directories = folderPath.Split(Path.DirectorySeparatorChar);
        var currentDirectory = "";

        foreach (var directory in directories)
        {
          currentDirectory = Path.Combine(currentDirectory, directory);

          if (!AssetDatabase.IsValidFolder(currentDirectory))
          {
            AssetDatabase.CreateFolder(Path.GetDirectoryName(currentDirectory), Path.GetFileName(currentDirectory));
          }
        }

        return true;
      }

      return false;
    }

    /// <summary>
    /// Draws the scene view window.
    /// </summary>
    private static void OnSceneGUI(SceneView sceneView)
    {
      if (MouseWorldSceneWindow._isWindowEnabled)
      {
        // Draw the scene window
        Handles.BeginGUI();
        GUI.skin = MouseWorldSceneWindow._customSkin;
        MouseWorldSceneWindow._windowRect =
          GUILayout.Window(0, MouseWorldSceneWindow._windowRect, MouseWorldSceneWindow.DrawWindow, string.Empty, MouseWorldSceneWindow._customSkin?.window);
        GUI.skin = null;
        Handles.EndGUI();

        // Save the window positions
        EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionXEditorPrefsName, MouseWorldSceneWindow._windowRect.x);
        EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionYEditorPrefsName, MouseWorldSceneWindow._windowRect.y);
      }
    }

    /// <summary>
    /// Resets the scene view window to its default position.
    /// </summary>
    [MenuItem(MouseWorldSceneWindow.ResetSceneWindowMenuName)]
    public static void ResetWindowPosition()
    {
      MouseWorldSceneWindow._windowRect.x = MouseWorldSceneWindow.DefaultPosition.x;
      MouseWorldSceneWindow._windowRect.y = MouseWorldSceneWindow.DefaultPosition.y;

      EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionXEditorPrefsName, MouseWorldSceneWindow._windowRect.x);
      EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionYEditorPrefsName, MouseWorldSceneWindow._windowRect.y);
    }

    private static void ToggleEnabledState(bool isEnabled)
    {
      // When being enabled from disabled
      if (isEnabled && !MouseWorldSceneWindow._isWindowEnabled)
      {
        // Register events
        SceneView.duringSceneGui += MouseWorldSceneWindow.OnSceneGUI;
        EditorApplication.update += MouseWorldSceneWindow.Update;
      }
      // When being disabled from enabled
      else if (!isEnabled && MouseWorldSceneWindow._isWindowEnabled)
      {
        // Unregister events
        SceneView.duringSceneGui -= MouseWorldSceneWindow.OnSceneGUI;
        EditorApplication.update -= MouseWorldSceneWindow.Update;
      }

      EditorPrefs.SetBool(MouseWorldSceneWindow.WindowEnabledEditorPrefsName, isEnabled);
      Menu.SetChecked(MouseWorldSceneWindow.ToggleSceneWindowMenuName, isEnabled);
      MouseWorldSceneWindow._isWindowEnabled = isEnabled;
    }

    /// <summary>
    /// Shows the scene view window.
    /// </summary>
    [MenuItem(MouseWorldSceneWindow.ToggleSceneWindowMenuName)]
    public static void ToggleWindowVisibility()
    {
      var isNowEnabled = !MouseWorldSceneWindow._isWindowEnabled;

      // Toggle the working state
      MouseWorldSceneWindow.ToggleEnabledState(isNowEnabled);
    }

    /// <summary>
    /// Updates the scene view window data.
    /// </summary>
    private static void Update()
    {
      // Update mouse position during design-time and play mode
      // (But only throttled considering the update frequency)
      if (EditorApplication.timeSinceStartup >= MouseWorldSceneWindow._nextUpdateTime)
      {
        MouseWorldSceneWindow._nextUpdateTime = EditorApplication.timeSinceStartup + MouseWorldSceneWindow.UpdateFrequency;
        MouseWorldSceneWindow.UpdateCurrentMouseWorldPosition();
      }
    }

    /// <summary>
    /// Update the mouse world position.
    /// </summary>
    private static void UpdateCurrentMouseWorldPosition()
    {
      // Gets the current scene view and scene view camera while design-time and play mode
      var sceneView = SceneView.sceneViews.Count > 0 ? (SceneView)SceneView.sceneViews[0] : null;
      var sceneViewCamera = sceneView?.camera;

      // Determine current mouse position with new input system
      var mouseScreenPosition = Mouse.current.position.ReadValue();
      var integerMouseScreenPosition = new Vector2Int((int)mouseScreenPosition.x, (int)mouseScreenPosition.y);

      if (sceneView != null && sceneViewCamera != null
          // Do no update in case of unchanged mouse screen position
          && integerMouseScreenPosition != MouseWorldSceneWindow._formerMouseScreenPosition)
      {
        MouseWorldSceneWindow._formerMouseScreenPosition = integerMouseScreenPosition;

        // Determine offsets and bars of the scene view
        var sceneViewTopBarsHeight = sceneView.rootVisualElement.worldBound.y;
        var sceneViewAbsoluteScreenOffset = sceneView.position.min;

        // Check whether mouse screen position is within the scene view
        var adjustedMouseScreenPosition = integerMouseScreenPosition - new Vector2Int((int)sceneViewAbsoluteScreenOffset.x, (int)sceneViewAbsoluteScreenOffset.y) -
          new Vector2Int(0, (int)sceneViewTopBarsHeight);
        var isMouseWithinSceneView = adjustedMouseScreenPosition is { x: >= 0, y: >= 0 }
          && adjustedMouseScreenPosition.x < sceneViewCamera.pixelWidth && adjustedMouseScreenPosition.y < sceneViewCamera.pixelHeight;

        if (isMouseWithinSceneView)
        {
          // Adjust y so it takes the top bars of the scene view into account and flip y-axis (cause of different coordinate systems)
          // and also adjust x/y regarding the scene view offset
          // (This is the correct code when calling from Update)
          mouseScreenPosition.y = sceneViewCamera.pixelHeight - (mouseScreenPosition.y - sceneViewTopBarsHeight - sceneViewAbsoluteScreenOffset.y);
          mouseScreenPosition.x -= sceneViewAbsoluteScreenOffset.x;

          // Adjust y so it takes the top bars of the scene view into account and flip y-axis (cause of different coordinate systems)
          // (This would be the correct code when calling from OnSceneGUI)
          //mouseScreenPosition.y = sceneViewCamera.pixelHeight - (mouseScreenPosition.y - sceneViewTopBarsHeight);

          MouseWorldSceneWindow._currentMouseWorldPosition = sceneViewCamera.ScreenToWorldPoint(mouseScreenPosition);

          // Force repaint the scene view, so the scene window is also repainted with the new data
          // This introduce some CPU load
          SceneView.RepaintAll();
        }
      }
    }
  }
}
#endif

Thats the original script, which had some issues and a higher CPU load:
MouseWorldSceneWindow (Original version)

#nullable enable
#if UNITY_EDITOR

using System.Globalization;

using UnityEditor;

using UnityEngine;
using UnityEngine.InputSystem;

namespace My.Common.Scripts.Editor
{
  /// <summary>
  /// A window in the scene view that shows the current world coordinates of the mouse cursor in 2D mode.
  /// </summary>
  [InitializeOnLoad]
  public class MouseWorldSceneWindow
  {
    private static Vector3 _currentMouseWorldPosition;
    private static GUISkin? _customSkin;
    private static bool _isWindowVisible;
    private static Rect _windowRect = new(0, 0, 150, 20);
    private static readonly Vector2 DefaultPosition = new(50f, 10f);
    private const string MouseWorldSceneWindowName = nameof(MouseWorldSceneWindow);
    private const string ResetSceneWindowMenuName = "Tools/Reset " + MouseWorldSceneWindow.MouseWorldSceneWindowName;
    private const string ToggleSceneWindowMenuName = "Tools/Toggle " + MouseWorldSceneWindow.MouseWorldSceneWindowName;
    private const string WindowPositionXEditorPrefsName = MouseWorldSceneWindow.MouseWorldSceneWindowName + "/SceneWindowPositionX";
    private const string WindowPositionYEditorPrefsName = MouseWorldSceneWindow.MouseWorldSceneWindowName + "/SceneWindowPositionY";
    private const string WindowVisibilityEditorPrefsName = MouseWorldSceneWindow.MouseWorldSceneWindowName + "/ShowWindow";

    /// <summary>
    /// Static constructor that initializes the window.
    /// </summary>
    static MouseWorldSceneWindow()
    {
      // Load preferences
      MouseWorldSceneWindow._isWindowVisible = EditorPrefs.GetBool(MouseWorldSceneWindow.WindowVisibilityEditorPrefsName, true);
      MouseWorldSceneWindow._windowRect.x = EditorPrefs.GetFloat(MouseWorldSceneWindow.WindowPositionXEditorPrefsName, MouseWorldSceneWindow.DefaultPosition.x);
      MouseWorldSceneWindow._windowRect.y = EditorPrefs.GetFloat(MouseWorldSceneWindow.WindowPositionYEditorPrefsName, MouseWorldSceneWindow.DefaultPosition.y);

      // Update the menu item checked state
      Menu.SetChecked(MouseWorldSceneWindow.ToggleSceneWindowMenuName, MouseWorldSceneWindow._isWindowVisible);

      // Register events
      SceneView.duringSceneGui += MouseWorldSceneWindow.OnSceneGUI;
      EditorApplication.update += MouseWorldSceneWindow.Update;
    }

    /// <summary>
    /// Create the GUI skin for the scene window.
    /// </summary>
    private static void CreateGUISkin()
    {
      if (MouseWorldSceneWindow._customSkin == null)
      {
        Color semiTransparentBackground = new Color32(0, 0, 0, 160);
        Color textColor = new Color32(224, 224, 224, 255);

        var windowTexture = MouseWorldSceneWindow.CreateWindowBackgroundTexture((int)MouseWorldSceneWindow._windowRect.width, (int)MouseWorldSceneWindow._windowRect.height,
          semiTransparentBackground, 5);

        var customSkin = ScriptableObject.CreateInstance<GUISkin>();
        customSkin.window.normal.background = windowTexture;
        customSkin.window.onNormal.background = windowTexture;
        customSkin.window.focused.background = windowTexture;
        customSkin.window.onFocused.background = windowTexture;

        var labelStyle = new GUIStyle();
        labelStyle.fontSize = 16;
        labelStyle.normal.textColor = textColor;
        labelStyle.onFocused.textColor = textColor;
        labelStyle.hover.textColor = textColor;
        customSkin.label = labelStyle;

        MouseWorldSceneWindow._customSkin = customSkin;
      }
    }

    /// <summary>
    /// Creates the background texture for the window.
    /// </summary>
    private static Texture2D CreateWindowBackgroundTexture(int width, int height, Color col, int borderRadius)
    {
      var tex = new Texture2D(width, height);
      var colors = new Color[width * height];
      var cornerReferencePoints = new[]
      {
        new Vector2(borderRadius, borderRadius),
        new Vector2(width - borderRadius, borderRadius),
        new Vector2(borderRadius, height - borderRadius),
        new Vector2(width - borderRadius, height - borderRadius),
      };

      for (var y = 0; y < height; y++)
      {
        for (var x = 0; x < width; x++)
        {
          bool isBorder;

          var coord = new Vector2(x, y);

          if (coord.x < cornerReferencePoints[0].x && coord.y < cornerReferencePoints[0].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[0]) > borderRadius;
          }
          else if (coord.x > cornerReferencePoints[1].x && coord.y < cornerReferencePoints[1].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[1]) > borderRadius;
          }
          else if (coord.x < cornerReferencePoints[2].x && coord.y > cornerReferencePoints[2].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[2]) > borderRadius;
          }
          else if (coord.x > cornerReferencePoints[3].x && coord.y > cornerReferencePoints[3].y)
          {
            isBorder = Vector2.Distance(coord, cornerReferencePoints[3]) > borderRadius;
          }
          else
          {
            isBorder = false;
          }

          colors[y * width + x] = isBorder ? Color.clear : col;
        }
      }

      tex.SetPixels(colors);
      tex.Apply();

      return tex;
    }

    private static void DrawWindow(int windowID)
    {
      // Show the mouse world position
      const string FormatString = "F2";
      GUILayout.Space(3);
      GUILayout.BeginHorizontal();
      GUILayout.Space(5);
      GUILayout.Label(MouseWorldSceneWindow._currentMouseWorldPosition.x.ToString(FormatString, CultureInfo.CurrentCulture), GUILayout.Width(60));
      GUILayout.Space(5);
      GUILayout.Label("/", GUILayout.Width(5));
      GUILayout.Space(5);
      GUILayout.Label(MouseWorldSceneWindow._currentMouseWorldPosition.y.ToString(FormatString, CultureInfo.CurrentCulture));
      GUILayout.EndHorizontal();
      GUILayout.Space(3);

      // Make the window draggable
      GUI.DragWindow();
    }

    /// <summary>
    /// Draws the scene view window.
    /// </summary>
    private static void OnSceneGUI(SceneView sceneView)
    {
      if (MouseWorldSceneWindow._isWindowVisible)
      {
        // Has to be done in the OnSceneGUI method, static ctor does not work
        MouseWorldSceneWindow.CreateGUISkin();

        // Draw the scene window
        Handles.BeginGUI();
        GUI.skin = MouseWorldSceneWindow._customSkin;
        MouseWorldSceneWindow._windowRect =
          GUILayout.Window(0, MouseWorldSceneWindow._windowRect, MouseWorldSceneWindow.DrawWindow, string.Empty, MouseWorldSceneWindow._customSkin?.window);
        GUI.skin = null;
        Handles.EndGUI();

        // Save the window positions
        EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionXEditorPrefsName, MouseWorldSceneWindow._windowRect.x);
        EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionYEditorPrefsName, MouseWorldSceneWindow._windowRect.y);
      }
    }

    /// <summary>
    /// Resets the scene view window to its default position.
    /// </summary>
    [MenuItem(MouseWorldSceneWindow.ResetSceneWindowMenuName)]
    public static void ResetWindowPosition()
    {
      MouseWorldSceneWindow._windowRect.x = MouseWorldSceneWindow.DefaultPosition.x;
      MouseWorldSceneWindow._windowRect.y = MouseWorldSceneWindow.DefaultPosition.y;

      EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionXEditorPrefsName, MouseWorldSceneWindow._windowRect.x);
      EditorPrefs.SetFloat(MouseWorldSceneWindow.WindowPositionYEditorPrefsName, MouseWorldSceneWindow._windowRect.y);
    }

    /// <summary>
    /// Shows the scene view window.
    /// </summary>
    [MenuItem(MouseWorldSceneWindow.ToggleSceneWindowMenuName)]
    public static void ToggleWindowVisibility()
    {
      MouseWorldSceneWindow._isWindowVisible = !MouseWorldSceneWindow._isWindowVisible;
      EditorPrefs.SetBool(MouseWorldSceneWindow.WindowVisibilityEditorPrefsName, MouseWorldSceneWindow._isWindowVisible);
      Menu.SetChecked(MouseWorldSceneWindow.ToggleSceneWindowMenuName, MouseWorldSceneWindow._isWindowVisible);
    }

    /// <summary>
    /// Updates the scene view window data.
    /// </summary>
    private static void Update()
    {
      // Update mouse position during design-time and play mode
      MouseWorldSceneWindow.UpdateCurrentMouseWorldPosition();
    }

    /// <summary>
    /// Update the mouse world position.
    /// </summary>
    private static void UpdateCurrentMouseWorldPosition()
    {
      // Gets the current scene view and scene view camera while design-time and play mode
      var sceneView = SceneView.sceneViews.Count > 0 ? (SceneView)SceneView.sceneViews[0] : null;
      var sceneViewCamera = sceneView?.camera;

      if (sceneView != null && sceneViewCamera != null)
      {
        // Determine current mouse position with new input system
        var mouseScreenPosition = Mouse.current.position.ReadValue();

        // Determine offsets and bars of the scene view
        var sceneViewTopBarsHeight = sceneView.rootVisualElement.worldBound.y;
        var sceneViewAbsoluteScreenOffset = sceneView.position.min;

        // Adjust y so it takes the top bars of the scene view into account and flip y-axis (cause of different coordinate systems)
        // and also adjust x/y regarding the scene view offset
        // (This is the correct code when calling from Update)
        mouseScreenPosition.y = sceneViewCamera.pixelHeight - (mouseScreenPosition.y - sceneViewTopBarsHeight - sceneViewAbsoluteScreenOffset.y);
        mouseScreenPosition.x -= sceneViewAbsoluteScreenOffset.x;

        // Adjust y so it takes the top bars of the scene view into account and flip y-axis (cause of different coordinate systems)
        // (This would be the correct code when calling from OnSceneGUI)
        //mouseScreenPosition.y = sceneViewCamera.pixelHeight - (mouseScreenPosition.y - sceneViewTopBarsHeight);

        MouseWorldSceneWindow._currentMouseWorldPosition = sceneViewCamera.ScreenToWorldPoint(mouseScreenPosition);

        // Force repaint the scene view, so the scene window is also repainted with the new data
        SceneView.RepaintAll();
      }
    }
  }
}
#endif
1 Like
2

Added an improved version of the script in my initial post, which fixes both issues. Additionally the introduced CPU load is reduced now using a lower update frequency than before, still barely noticable. The improved version introduces two assets in the project for the GUI skin. Asset paths and update frequency can be adjusted via constants in the class.
