About LudiqBehaviour OnAfterDeserialize step

First of all

  • I am trying to speed up my game’s loading speed

  • We are using Addressables and VisualScripting in Unity 2021.3.17f1

  • Both packages were up to date

  • This post below were focus on these types

Current state

  • We put npc logic in ScriptMachine with macro in its prefab
  • Use Addressables.InstantiateAsync to create the npc instance one by one
  • It just works fine, BUT SLOW, VERY SLOW

What I am trying to do is Instantiate all the npcs at once, not one by one

  • In this change, we seems meets VisualScripting’s Deserialize bug
  • By my try and error study result, the bug seems caused by LudiqBehaviour.OnAfterDeserialize API’s first return code

What I wanna ask is

  • Is this is a rule of VisualScripting?

  • User should not Instantiate prefab with LudiqBehaviour at the same time?

  • Or there is a checkbox or something else I can do? for Instantiate prefabs at the same time correctly?

  • I’ve tried a lots of way for this, include update Unity to 2022.2.18f1, but they were all not success

For Sample Project

  • I’m cleaning up my code, I’ve written too many tests and it’s looking pretty messy at the moment
  • I’ll provide it later if need

What I’ve tested

  • Update all package and Unity

  • Not works

  • Store SerializationData _data; value in my script, and try to fix the buged instance with my data

  • It seems works, but there is some edge case not works, and I don’t really have enough condition to judge which LodiqBehaviour data is broken now

  • Store ScriptGraphAsset reference in my script, and restore it into ScriptMachine while machine is broken

  • It works, but there is some edge case, that nest.macro is not null but hold an empty graph

  • And it is not a good idea to fix missing Variables

  • Load Asset from Addressables, and than Instantiate with Addressables

  • It works, on Editor only, not works on mobile device

  • Load Asset from Addressables, and than Instantiate by Object.Instantiate API

  • It works, on Editor only, not works on mobile device

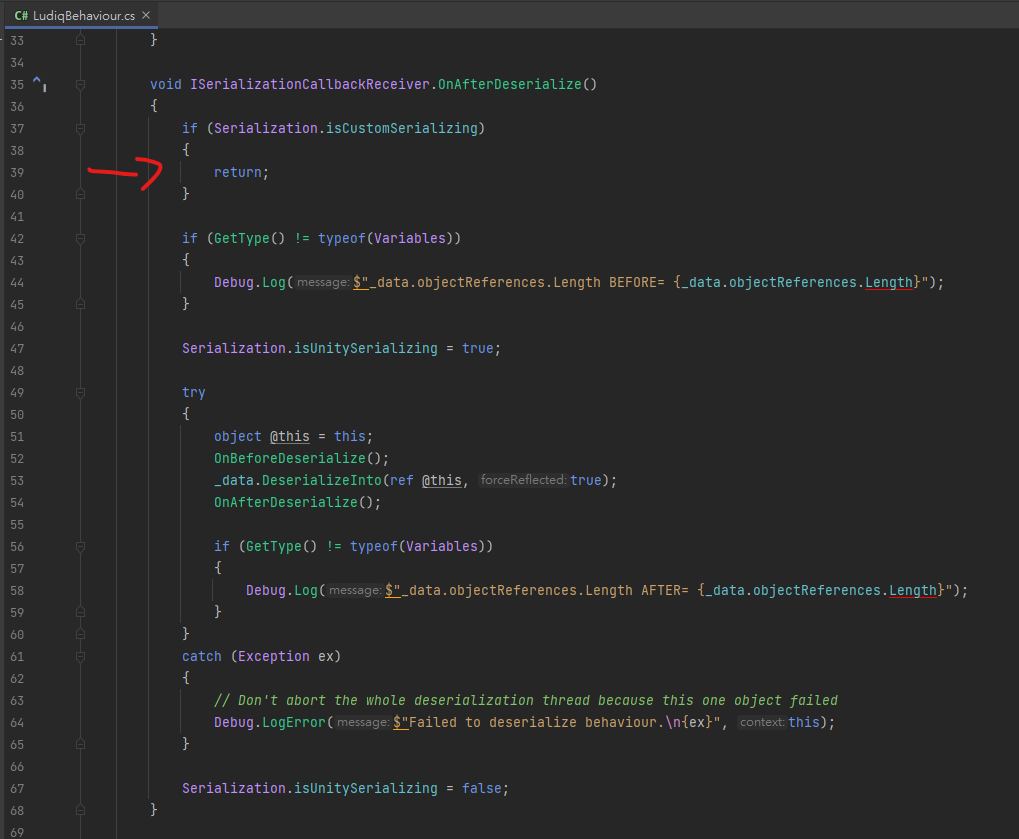

The code of the first return

Here is sample project, and how to reproduce bug
Reproduce bug on UnityEditor

  • Open Unity with Android platform target

  • Open Addressables Group Window (Only once if need)

  • Build / New Build / Default Build Script

  • Play Mode Script > Use Existing Build (Android)

  • Oepn SampleScene

  • Enter runtime play mode

  • Hit AtOnce series button

Reproduce bug on Mobile

  • build apk
  • install apk
  • launch game
  • Hit AtOnce series button

Note

  • Bug will not always appear directly, if the console did not appear any RED message, try again with AtOnce series button

  • The 1 by 1 series button is current logic of our game, it won’t occurs bug, but VERY SLOW

  • The last gui on the top menu is a drop down, it can switch 3 kinds of load logic

  • Instantiate Only, can reproduce bug easily on Editor

  • Load Asset Before InstantiateAsync, can ease bug on Editor

  • Load Asset and Instantiate, can ease bug on Editor, it skipped Addressables InstantiateAsync api

9013795–1242781–FlowMachineIssue_v5b.zip (3.88 MB)

Unity QA has confirmed this bug
Let’s wait for good news~

In my guess, it could be fix in more than 1 year later -.,-
Unity ~ PLEASE PROVE ME WRONG
