Hi Guys,
I just made an FPS Control Script for Android from scratch, and I have decided to release it to the forums for people who want to use it. What’s special about this one from the Unity default one is threefold:
- The move pad is “floating,” which means that its position is determined by where ever you press.
- Rotation uses a full half of the screen, instead of being confined to a rotation pad.
- There is now (togglable) jumping and double-jumping

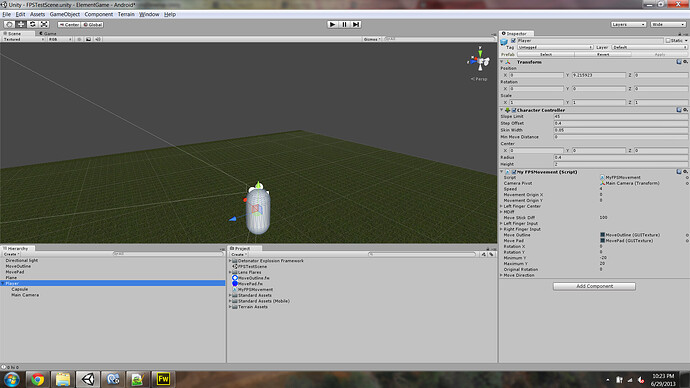

Here is a screenshot of the setup:
And here is the script:
#pragma strict
var cameraPivot : Transform;
var speed : float = 4;
private var thisTransform : Transform;
private var character : CharacterController;
private var cameraVelocity : Vector3;
private var velocity : Vector3;
private var canJump = true;
var movementOriginX : float;
var movementOriginY : float;
function Start ()
{
thisTransform = GetComponent(Transform);
character = GetComponent(CharacterController);
originalRotation = transform.rotation.eulerAngles.y;
movePad.transform.position = new Vector2(-1,-1);
moveOutline.transform.position = new Vector2(-1,-1);
jump = false;
doubleJump = false;
}
function Update ()
{
var moveDiff : Vector2;
for (var touch : Touch in Input.touches)
{
if (touch.phase == TouchPhase.Began)
{
if (jumpButton.HitTest(touch.position))
{
jump = true;
}
else if (touch.position.x < Screen.width / 2)
{
leftFingerID = touch.fingerId;
leftFingerCenter = touch.position;
moveOutline.transform.position.x = touch.position.x / Screen.width;
moveOutline.transform.position.y = touch.position.y / Screen.height;
movePad.transform.position.x = touch.position.x / Screen.width;
movePad.transform.position.y = touch.position.y / Screen.height;
}
else
{
rightFingerID = touch.fingerId;
}
}
else if (touch.phase == TouchPhase.Moved)
{
if (touch.position.x < Screen.width / 2)
{
if (leftFingerID == touch.fingerId)
{
mDiff = touch.position - leftFingerCenter;
var distPer = mDiff.magnitude * 100 / moveStickDiff;
if (distPer > 100)
{
distPer = 100;
}
leftFingerInput = mDiff.normalized * distPer / 100;
movePad.transform.position.x = leftFingerCenter.x / Screen.width + mDiff.normalized.x * distPer / 100 * moveStickDiff / Screen.width;
movePad.transform.position.y = leftFingerCenter.y / Screen.height + mDiff.normalized.y * distPer / 100 * moveStickDiff / Screen.height;
}
}
else
{
if (rightFingerID == touch.fingerId)
{
rightFingerInput = touch.deltaPosition * Time.smoothDeltaTime;
}
}
}
else if (touch.phase == TouchPhase.Ended || touch.phase == TouchPhase.Canceled)
{
if (touch.fingerId == leftFingerID)
{
movePad.transform.position = new Vector2(-1,-1);
moveOutline.transform.position = new Vector2(-1,-1);
leftFingerID = -1;
leftFingerInput = new Vector2(0, 0);
}
if (touch.fingerId == rightFingerID)
{
rightFingerID = -1;
rightFingerInput = new Vector2(0, 0);
}
}
}
rotationX += rightFingerInput.x * 25;
rotationY += rightFingerInput.y * 25;
rotationY = Mathf.Clamp(rotationY, minimumY, maximumY);
transform.rotation = Quaternion.Slerp (transform.rotation, Quaternion.Euler(0, originalRotation + rotationX, 0), 0.1);
cameraPivot.localRotation = Quaternion.Slerp (cameraPivot.localRotation, Quaternion.Euler(cameraPivot.localRotation.x-rotationY, 0, 0), 0.1);
moveDirection = thisTransform.TransformDirection(new Vector3(leftFingerInput.x, 0, leftFingerInput.y));
moveDirection *= speed;
moveDirection += Physics.gravity;
if (character.isGrounded)
{
doubleJump = false;
if (jump jumpingEnabled)
{
velocityJ = character.velocity / 3;
velocityJ.y = jumpSpeed;
}
else
{
velocityJ = new Vector3(0, 0, 0);
}
}
else
{
if (!doubleJump jump doubleJumpingEnabled)
{
velocityJ = character.velocity / 3;
velocityJ.y = jumpSpeed;
doubleJump = true;
}
velocityJ.y += Physics.gravity.y * Time.smoothDeltaTime;
}
moveDirection += velocityJ;
character.Move(moveDirection * Time.smoothDeltaTime);
jump = false;
}
var rightFingerID;
var leftFingerID;
var leftFingerCenter : Vector2;
var mDiff : Vector2;
var moveStickDiff = 100;
var leftFingerInput : Vector2;
var rightFingerInput : Vector2;
var moveOutline : GUITexture;
var movePad : GUITexture;
var jumpButton : GUITexture;
var rotationX : float;
var rotationY : float;
var minimumY = -20;
var maximumY = 20;
var originalRotation : float;
var moveDirection : Vector3;
var jump : boolean;
var doubleJump : boolean;
var jumpSpeed : float = 25;
var velocityJ : Vector3;
var doubleJumpingEnabled : boolean = true;
var jumpingEnabled : boolean = true;
Enjoy!
