Here is where the arrow launches from.

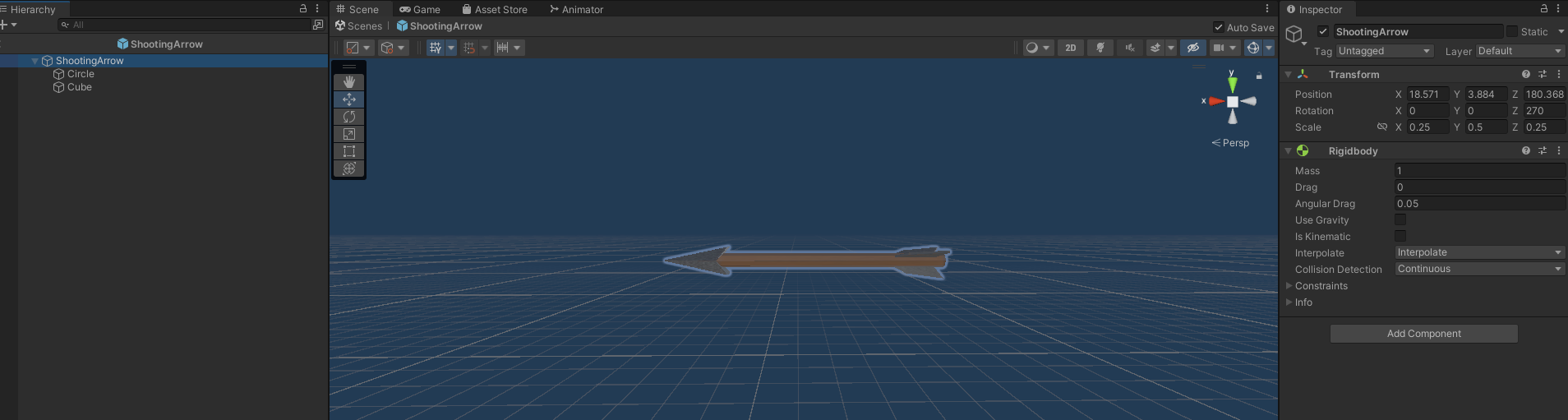

Here is the prefab for the arrow that is shot.

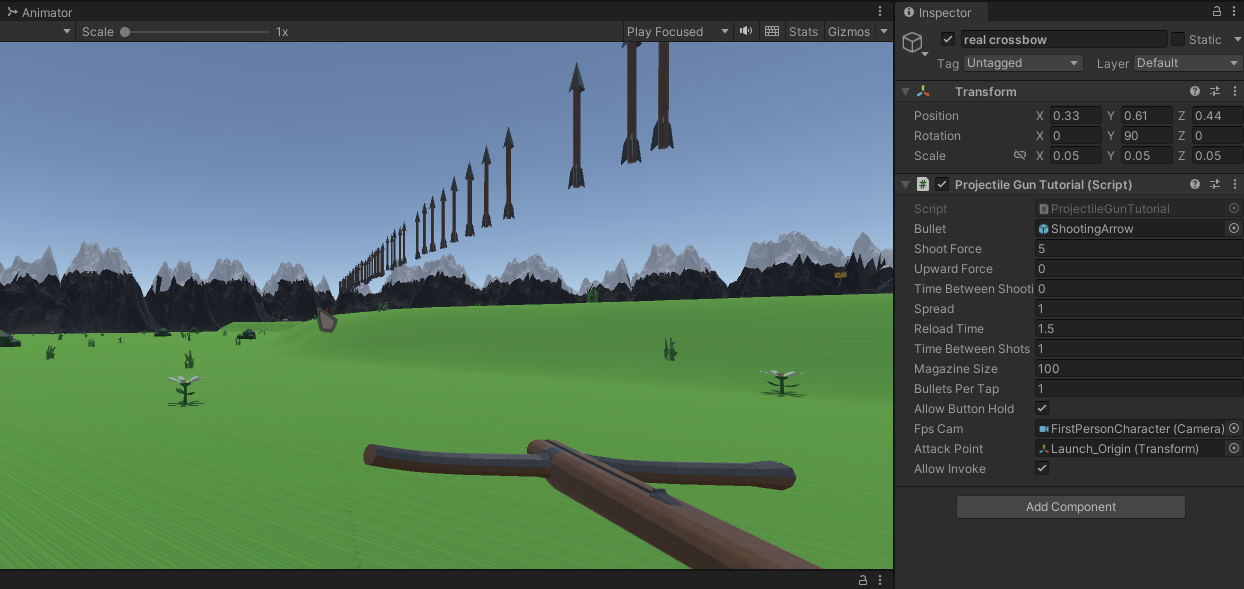

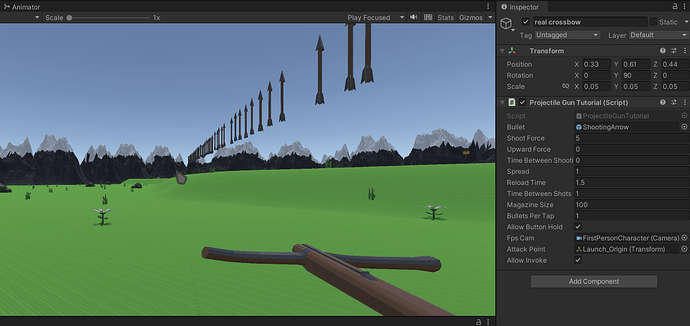

Here is the image of how the arrows come out. Ignore how close together they are. I can change that at any moment.
This is the code I used for my projectile launcher aka my crossbow. I followed a tutorial on youtube and have very very little experience with coding, but have a game do for my class next Tuesday. For some reason the projectiles that come out of my crossbow are my arrow, but no matter what I do to the prefab, the arrow comes out vertical instead of the horizontal rotation you’d expect. The arrows also come out quite higher than they should. I am not sure what is causing this. If it is something to do with the coding please try to slightly less jargin as I am very new to all of this.
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class ProjectileGunTutorial : MonoBehaviour
{
public GameObject bullet;
public float shootForce, upwardForce;
public float timeBetweenShooting, spread, reloadTime, timeBetweenShots;
public int magazineSize, bulletsPerTap;
public bool allowButtonHold;
int bulletsLeft, bulletsShot;
bool shooting, readyToShoot, reloading;
public Camera fpsCam;
public Transform attackPoint;
public bool allowInvoke = true;
private void Awake()
{
bulletsLeft = magazineSize;
readyToShoot = true;
}
private void Update()
{
MyInput();
}
private void MyInput()
{
if (allowButtonHold) shooting = Input.GetKey(KeyCode.Mouse0);
else shooting = Input.GetKeyDown(KeyCode.Mouse0);
if (readyToShoot && shooting && !reloading && bulletsLeft > 0)
{
bulletsShot = 0;
Shoot();
}
if (Input.GetKeyDown(KeyCode.R) && bulletsLeft < magazineSize && !reloading) Reload();
if (readyToShoot && shooting && !reloading && bulletsLeft <= 0) Reload();
}
private void Shoot()
{
readyToShoot = false;
Ray ray = fpsCam.ViewportPointToRay(new Vector3(0.5f, 0.5f, 0));
RaycastHit hit;
Vector3 targetPoint;
if (Physics.Raycast(ray, out hit))
targetPoint = hit.point;
else
targetPoint = ray.GetPoint(75);
Vector3 directionWithoutSpread = targetPoint - attackPoint.position;
float x = Random.Range(-spread, spread);
float y = Random.Range(-spread, spread);
Vector3 directionWithSpread = directionWithoutSpread + new Vector3(x, y, 0);
GameObject currentBullet = Instantiate(bullet, attackPoint.position, Quaternion.identity);
currentBullet.transform.forward = directionWithSpread.normalized;
currentBullet.GetComponent().AddForce(directionWithSpread.normalized * shootForce, ForceMode.Impulse);
currentBullet.GetComponent().AddForce(fpsCam.transform.up * upwardForce, ForceMode.Impulse);
bulletsLeft–;
bulletsShot++;
if (allowInvoke)
{
Invoke(“ResetShot”, timeBetweenShooting);
allowInvoke = false;
}
}
private void ResetShot()
{
readyToShoot = true;
allowInvoke = true;
}
private void Reload()
{
reloading = true;
Invoke(“ReloadFinished”, reloadTime);
}
private void ReloadFinished()
{
bulletsLeft = magazineSize;
reloading = false;
}
}
