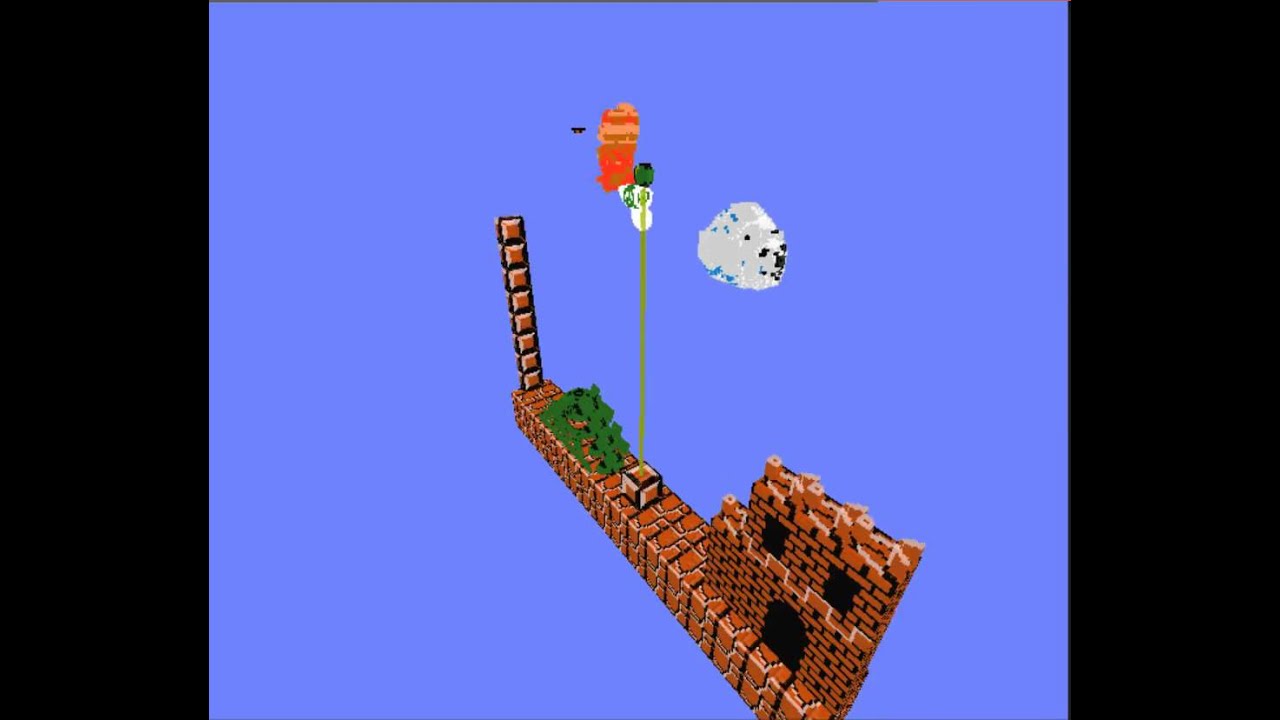

I have created a very simple 16 color palette shader for a 3d nes simulators. I’m using Blending so that objects wont be completely hidden by other objects. Everything seems fine in Editor mode as you can see in the clip below:
But when i built and run on Window Platform, every pixel becomes solid. Alpha blending does not work anymore. I post the shader code here hopping that someone can help.
Thank you
Shader "Custom/16 Colors Palette" {
Properties{
_Color0("Color0", Color) = (0,0,0,0)
_Color1("Color1", Color) = (1,0,0,1)
_Color2("Color2", Color) = (0,1,0,1)
_Color3("Color3", Color) = (0,0,1,1)
_Color4("Color4", Color) = (0,0,0,0)
_Color5("Color5", Color) = (1,0,0,1)
_Color6("Color6", Color) = (0,1,0,1)
_Color7("Color7", Color) = (0,0,1,1)
_Color8("Color8", Color) = (0,0,0,0)
_Color9("Color9", Color) = (1,0,0,1)
_Color10("Color10", Color) = (0,1,0,1)
_Color11("Color11", Color) = (0,0,1,1)
_Color12("Color12", Color) = (0,0,0,0)
_Color13("Color13", Color) = (1,0,0,1)
_Color14("Color14", Color) = (0,1,0,1)
_Color15("Color15", Color) = (0,0,1,1)
}
SubShader{
Tags{ "Queue" = "Transparent" "IgnoreProjector" = "True" "RenderType" = "Transparent" }
Cull Back
Blend SrcAlpha OneMinusSrcAlpha
Lighting Off // On | Off
Pass{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag alpha:blend
uniform fixed4 _Color0,_Color1,_Color2,_Color3,_Color4,_Color5,_Color6,_Color7,_Color8,_Color9,_Color10,_Color11,_Color12,_Color13,_Color14,_Color15;
struct vi {
fixed4 pos : POSITION;
fixed4 color : COLOR;
};
struct v2f {
fixed4 pos : SV_POSITION;
fixed4 color : COLOR;
};
v2f vert(vi i)
{
v2f o;
o.pos = mul(UNITY_MATRIX_MVP, i.pos);
if (i.color.r < 0.49)
{
if (i.color.r < 0.24)
{
if (i.color.r < 0.115)
{
if (i.color.r < 0.0525)
o.color = _Color0;
else
o.color = _Color1;
}
else
{
if (i.color.r < 0.1775)
o.color = _Color2;
else
o.color = _Color3;
}
}
else
{
if (i.color.r < 0.365)
{
if (i.color.r < 0.3025)
o.color = _Color4;
else
o.color = _Color5;
}
else
{
if (i.color.r < 0.4275)
o.color = _Color6;
else
o.color = _Color7;
}
}
}
else
{
if (i.color.r < 0.74)
{
if (i.color.r < 0.615)
{
if (i.color.r < 0.5525)
o.color = _Color8;
else
o.color = _Color9;
}
else
{
if (i.color.r < 0.6775)
o.color = _Color10;
else
o.color = _Color11;
}
}
else
{
if (i.color.r < 0.865)
{
if (i.color.r < 0.8025)
o.color = _Color12;
else
o.color = _Color13;
}
else
{
if (i.color.r < 0.9275)
o.color = _Color14;
else
o.color = _Color15;
}
}
}
return o;
}
fixed4 frag(v2f i) : COLOR
{
return i.color;
}
ENDCG
}
}
}
