Hey everybody, im trying to write a shader for cutting out spheres out of geometry. Heres my process:
a) Render all faces clipping out the pixels inside a sphere
b) Render only back faces, doing the ray sphere intersection, finding normal and world position of the intersection, and writing that to the G-Buffer.
There is a problem however, that i illustrated here:

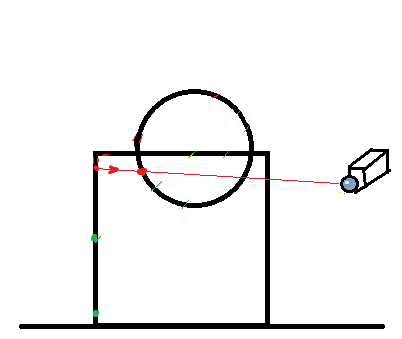

The red ray intersects with the sphere and sets its depth closer than the front face, which causes it to be rendered on top of the front face, which leads to incorrect looking results:
So my question is, can i write to the depth buffer, but somehow use the original depth for the ZTesting?
I think it would also be possible with stencil buffer, but im on deferred, so thats not an option. And the worst case scenario is rendering a separate render texture, i would like to avoid that if possible.
Heres the shader code btw:
Shader code
Shader "Custom/CharacterShader" {
Properties {
_Color ("Color", Color) = (1,1,1,1)
_MainTex ("Albedo (RGB)", 2D) = "white" {}
_NoiseTex("Noise", 2D) = "white" {}
_Glossiness ("Smoothness", Range(0,1)) = 0.5
_Metallic ("Metallic", Range(0,1)) = 0.0
_SpherePos("Sphere pos", Vector) = (0,0,0,0)
}
SubShader {
Tags { "RenderType"="Opaque" }
LOD 200
Cull Off
CGPROGRAM
// Physically based Standard lighting model, and enable shadows on all light types
#pragma surface surf Standard fullforwardshadows vertex:vert addshadow
// Use shader model 3.0 target, to get nicer looking lighting
#pragma target 3.0
sampler2D _MainTex;
sampler2D _NoiseTex;
struct Input {
float2 uv_MainTex;
float3 localPos;
};
half _Glossiness;
half _Metallic;
fixed4 _Color;
float4 _SpherePos;
void vert (inout appdata_full v, out Input o) {
UNITY_INITIALIZE_OUTPUT(Input,o);
o.localPos = v.vertex.xyz;
}
// Add instancing support for this shader. You need to check 'Enable Instancing' on materials that use the shader.
// See https://docs.unity3d.com/Manual/GPUInstancing.html for more information about instancing.
// #pragma instancing_options assumeuniformscaling
UNITY_INSTANCING_BUFFER_START(Props)
// put more per-instance properties here
UNITY_INSTANCING_BUFFER_END(Props)
void surf (Input IN, inout SurfaceOutputStandard o) {
float noise = tex2D(_NoiseTex, IN.localPos.xy);
clip(distance(_SpherePos.xyz, IN.localPos)-0.5+noise*0.25*0);
// Albedo comes from a texture tinted by color
fixed4 c = tex2D (_MainTex, IN.uv_MainTex) * _Color;
o.Albedo = c.rgb;
// Metallic and smoothness come from slider variables
o.Metallic = _Metallic;
o.Smoothness = _Glossiness;
o.Alpha = c.a;
}
ENDCG
Pass {
Tags { "LightMode" = "Deferred" }
Cull Front
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#pragma exclude_renderers nomrt
#pragma multi_compile ___ UNITY_HDR_ON
#pragma target 3.0
#include "UnityPBSLighting.cginc"
float4 _SpherePos;
float raySphereIntersect(float3 r0, float3 rd, float3 s0, float sr) {
// - r0: ray origin
// - rd: normalized ray direction
// - s0: sphere center
// - sr: sphere radius
// - Returns distance from r0 to first intersecion with sphere,
// or -1.0 if no intersection.
float a = dot(rd, rd);
float3 s0_r0 = r0 - s0;
float b = 2.0 * dot(rd, s0_r0);
float c = dot(s0_r0, s0_r0) - (sr * sr);
if (b*b - 4.0*a*c < 0.0) {
return -1.0;
}
return (-b - sqrt((b*b) - 4.0*a*c))/(2.0*a);
}
float CalcDepth(float3 vert) {
float4 pos_clip = mul(UNITY_MATRIX_VP, float4(vert,1));
return pos_clip.z / pos_clip.w;
}
struct structureVS
{
float4 screen_vertex : SV_POSITION;
float4 world_vertex : TEXCOORD0;
float4 local_vertex: TEXCOORD2;
float3 normal : TEXCOORD1;
};
struct structurePS
{
half4 albedo : SV_Target0;
half4 specular : SV_Target1;
half4 normal : SV_Target2;
half4 emission : SV_Target3;
float depth: SV_DEPTH;
};
structureVS vert (float4 vertex : POSITION,float3 normal : NORMAL)
{
structureVS vs;
vs.local_vertex = vertex;
vs.screen_vertex = UnityObjectToClipPos( vertex );
vs.world_vertex = mul(unity_ObjectToWorld, vertex);
vs.normal = UnityObjectToWorldNormal(-normal);
return vs;
}
structurePS frag (structureVS vs)
{
//clip(distance(_SpherePos.xyz, vs.local_vertex)-0.5);
structurePS ps;
float3 normalDirection = normalize(vs.normal);
half3 specular;
half specularMonochrome;
half3 diffuseColor = DiffuseAndSpecularFromMetallic(half3(1,0,0), 0, specular, specularMonochrome );
ps.albedo = half4( diffuseColor, 1.0 );
ps.specular = half4( specular, 0.7 );
ps.normal = half4( normalDirection * 0.5 + 0.5, 1.0 );
ps.emission = half4(0,0,0,1);
float3 dir = normalize(_WorldSpaceCameraPos - vs.world_vertex);
float3 centerPos = mul(unity_ObjectToWorld, float4(0,0,0,1));
float3 spherePos = centerPos+_SpherePos.xyz;
float intersectDist = raySphereIntersect(
vs.world_vertex,
dir,
spherePos,
0.5);
intersectDist = max(intersectDist, 0);
float3 norm = normalize(spherePos - vs.world_vertex);
ps.normal = half4( norm * 0.5 + 0.5, 1.0 );
ps.depth = CalcDepth(vs.world_vertex+dir*intersectDist);
#ifndef UNITY_HDR_ON
ps.emission.rgb = exp2(-ps.emission.rgb);
#endif
return ps;
}
ENDCG
}
}
FallBack "Diffuse"
}
