Hi,

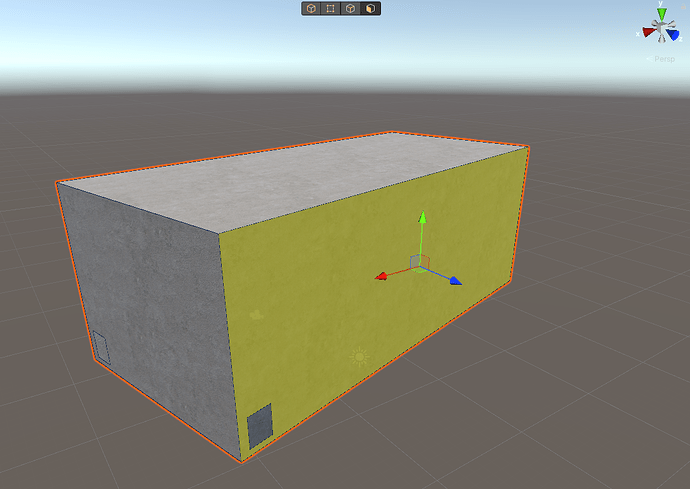

I’m using the ProBuilder API to build custom meshes. Below is the example I’m working on:

7463135--916367--upload_2021-8-31_15-52-26.png1099×794 420 KB

As you can see, the selected face is an “inner” face of the surrounding face, which is:

7463135--916370--upload_2021-8-31_15-53-16.png1092×775 417 KB

Problem is I can’t extrude the inner face: when I extrude, it just moves and pulls the surrounding face, as if I was just moving the Z direction gizmo:

7463135--916373--upload_2021-8-31_15-55-11.jpg1092×844 174 KB

When I debug through C# and look through all the ProBuilderMesh properties, everything looks fine: vertices, faces, etc.

I tried doing it on a mesh I built through ProBuilder interface, and it works.

So there is obviously something dirty in the way I build the mesh with the API, and I can’t find what it is. I’m really stuck and help would be greatly greatly appreciated! I uploaded a package of the mesh if anyone wants to take a look.

7463135–916379–DirtyMesh.unitypackage (2.68 KB)

2

Ok I found what was wrong: In order to be extruded, a face needs to have its own vertices, while the surrounding face uses a copy of those vertices. The sharedVertices property then matches identical vertices.
Hope I’m making myself clear. ^^’
