EnumField does not work for custom Enum type

Unity Engine
,
1

Hi, I found that my own enum type does not work in EnumField in UXML.

Here is minimul reproducible code:
TestWindow.uxml

<?xml version="1.0" encoding="utf-8"?>
<UXML
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="UnityEngine.UIElements"
    xmlns:uie="UnityEditor.UIElements"

xsi:noNamespaceSchemaLocation="../../UIElementsSchema/UIElements.xsd"
xsi:schemaLocation="
                        UnityEngine.UIElements ../../UIElementsSchema/UnityEngine.UIElements.xsd
                        UnityEditor.UIElements ../../UIElementsSchema/UnityEditor.UIElements.xsd
                        UnityEditor.PackageManager.UI ../../UIElementsSchema/UnityEditor.PackageManager.UI.xsd
"
>
    <Foldout name="foldout" class="foldout">
        <uie:EnumField label="BuildTarget" type="UnityEditor.BuildTarget" />
        <uie:EnumField label="MyEnum" type="MyNamespace.MyEnum" />
    </Foldout>
</UXML>

MyEnum.cs

namespace MyNamespace
{
    public enum MyEnum
    {
        None = 0,
        First = 1,
        Second = 2,
    }
}

First EnumField for BuildTarget works correctly, but second EnumField for my own Enum types doesn’t work. Is this bug? or intended behaviour?

Thanks.

2

Hi! Could you try providing the assembly name, like this:

<uie:EnumField label="MyEnum" type="MyNamespace.MyEnum, AssemblyName" />

3

Works. Thanks!

4

Sorry for digging, but I’m working on custom editor script now, and I’m wondering if there’s a possibility to create a EnumField directly in .uxml file?
I’ve tried this:

<UXML xmlns="UnityEngine.UIElements">
    <Label name="labelowe" text="tempText"/>
    <EnumField label="Test" type="UIElementsExamples.SomeEnum, Assembly-CSharp-Editor" />
</UXML>

where type in “UIElementsExamples” namespace:

public enum SomeEnum { X, Y, Z, Makelele }

but gets error: 4756139--451676--upload_2019-7-17_14-18-48.png in console and 4756139--451679--upload_2019-7-17_14-20-29.png in custom editor.
EditorWindow code:

        private void OnEnable()
        {
            SetupEditorWindow();
        }

        private void SetupEditorWindow()
        {
            var visualTreeToClone = Resources.Load<VisualTreeAsset>("kjrUXML");
            visualTreeToClone.CloneTree(rootVisualElement);
        }

== SOLVED ==
The problem was in missing [xmlns:ue=“UnityEditor.UIElements”], which is used by EnumField (not “UnityEngine.UIElements”).

1 Like
5

@patrickf Hi, I found that specifying type for EnumField in UXML doesn’t work for nested type. like this:

namespace MyNamespace
{
     public class MyClass
    {
        public eum MyEnum{}
    }
}

MyNamespace.MyClass.MyEnum doesn’t work. If I move MyEnum to the outside of MyClass, it works. Is this intended behaviour? and how to specify nested types in UXML?

Thanks.

1 Like
6

We use Type.GetType(string s) to convert from the type name to the actual C# type. This page details the syntax of type names: Type.GetType Method (System) | Microsoft Learn

In your case, you would need to use the plus sign as the nested class separator: MyNamespace.MyClass+MyEnum

3 Likes
7

I have the same issue that an enum field now doesn’t work anymore for my editor scripts. Which before was the easiest task, now seems to be a massive pain in the ass, plus a nightmare to debug if the type string / namespace changes, which happens quite often, mostly in the early stages of a project.

I use the UI Builder to check UI Toolkit out for the first time, the first field is an enum and my world falls apart already. Here is the enum definition:
6957800--819242--Bildschirmfoto 2021-03-21 um 17.28.16.png

Here is my class that contains the enum:

namespace Source.Components.Common
{
    [RequireComponent(typeof(Image))]
    public class ImageFX : MonoBehaviour
    {
        public enum Effect
        {
            Glow,
            Flash,
            Shine,
            GlowSoftMask,
            FlashSoftMask,
        }
        [...]
    }
}

I get a popup type attribute invalid, make sure to include assembly name.
I tried Source.Components.Common.ImageFX.Effect as-well.

The generated UXML window shows as my new editor layout, but the enum field has no values.

PS: I also tried to fill the enum popup via code, which would be fine for me, but this doesn’t seem to work either:

    [CustomEditor(typeof(ImageFX))]
    public class ImageFxEditor : UnityEditor.Editor
    {
        public void OnEnable()
        {
            VisualTreeAsset visualTree = AssetDatabase.LoadAssetAtPath<VisualTreeAsset>("Assets/Source/Components/Common/Editor/ImageFX.uxml");
            var ui = visualTree.Instantiate();
            var enumField = ui.Q<EnumField>("effect");
            enumField.Init(ImageFX.Effect.Glow);
        }
    }

I feel like this should at least work, but it doesn’t somehow…

1 Like
8

For you and for someone that need. You need to create a assembly definition of the your project. Take a look at some AssemblyDefinition tutorial.

In My case, i created a folder for my UIElement project, called “GMB”, (Game Manager BackEnd).

At my GMB folder project i have scripts for behaviour and scripts only for editor, so i have a folder for Editor too.

I created a Assembly Definition in root of my GMB Folder and other in Root of Editor Folder of the my GMB Folder.

In my Assembly Definition of Editor, i have a assemblyDefinition Reference, that is my GMB Assembly definition, and it is set to only Editor plataform. So now, my ENUM work very fine, because i can use my GMB Assembly name, that contains my custom enum.

My Custom enum path is: GMB.Data_ItemIngredient.RequireIngredientType.
My Assembly name is GMB.
BUT, Keep in mind that i use namespace GMB for all my project, so this is my assembly name, and i use GMBEditor namespace for all only editor scripts… Thats is it!

<uie:EnumField label="Enum" type="GMB.Data_ItemIngredient+RequireIngredientType, GMB"/>

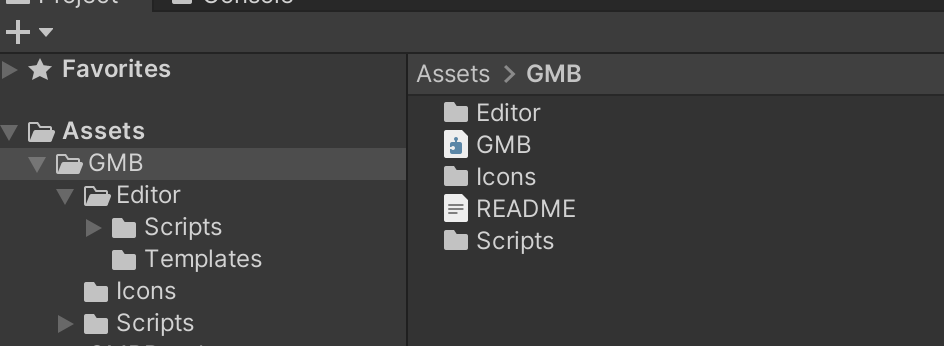

7940962--1015741--Captura de Tela 2022-03-04 às 09.55.17.png
7940962--1015762--Captura de Tela 2022-03-04 às 10.05.20.png

9

I don’t know if this is what you are looking for but in cs the EnumField object has a method “Init(EnumValue)”

2 Likes
