Faulty Property Value

Unity Engine
,
1

Hi everyone, I’m writing a really simple shader that is supposed to blend colors between each gradient segment on a cylinder including the start and the end segment, in other words the gradient should be seamless. However, despite that, there seams to be a visible seem on the cylinder when certain int values are typed into _Count property field, such as 30, in other words the blending at start and end UV points breaks for some reason. The strange thing is that if you substitute the property field with a local variable or an r-value the problem disappears and the shader displays the results as expected. I need to point out that cylinder’s base UV’s overlay over the whole UV map.
Is this Unity’s internal issue or am I doing something wrong?

Application: Unity 2021.3.9f1
OS : Windows 10
GPU: AMD Radeon R9-270x
CPU: AMD FX8300

Cylinder FBX:

Shader "CgProgramming/Custom/Wraper"
{
    Properties
    {
        _MainTex("Main Tex", 2D) = "white"
        _Count("Count", Integer) = 1
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            Cull Off
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            sampler2D _MainTex;
            float4 _MainTex_ST;
            uniform half _Count;

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };


            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);

                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                int n = _Count; // doesn't work properly with some values (e.g. 30)
                // int n = 30; // works fine with any value
                float x_i = floor(i.uv.x*n);
                float x_f = frac(i.uv.x*n);
                float cell1 = x_i/n;
                float cell2 = fmod((x_i+1.0), n)/n;
                float val = lerp(cell1, cell2, x_f*x_f*(3.0-2.0*x_f));

                return fixed4(val.xxx, 1.0);
            }
            ENDCG
        }
    }
}

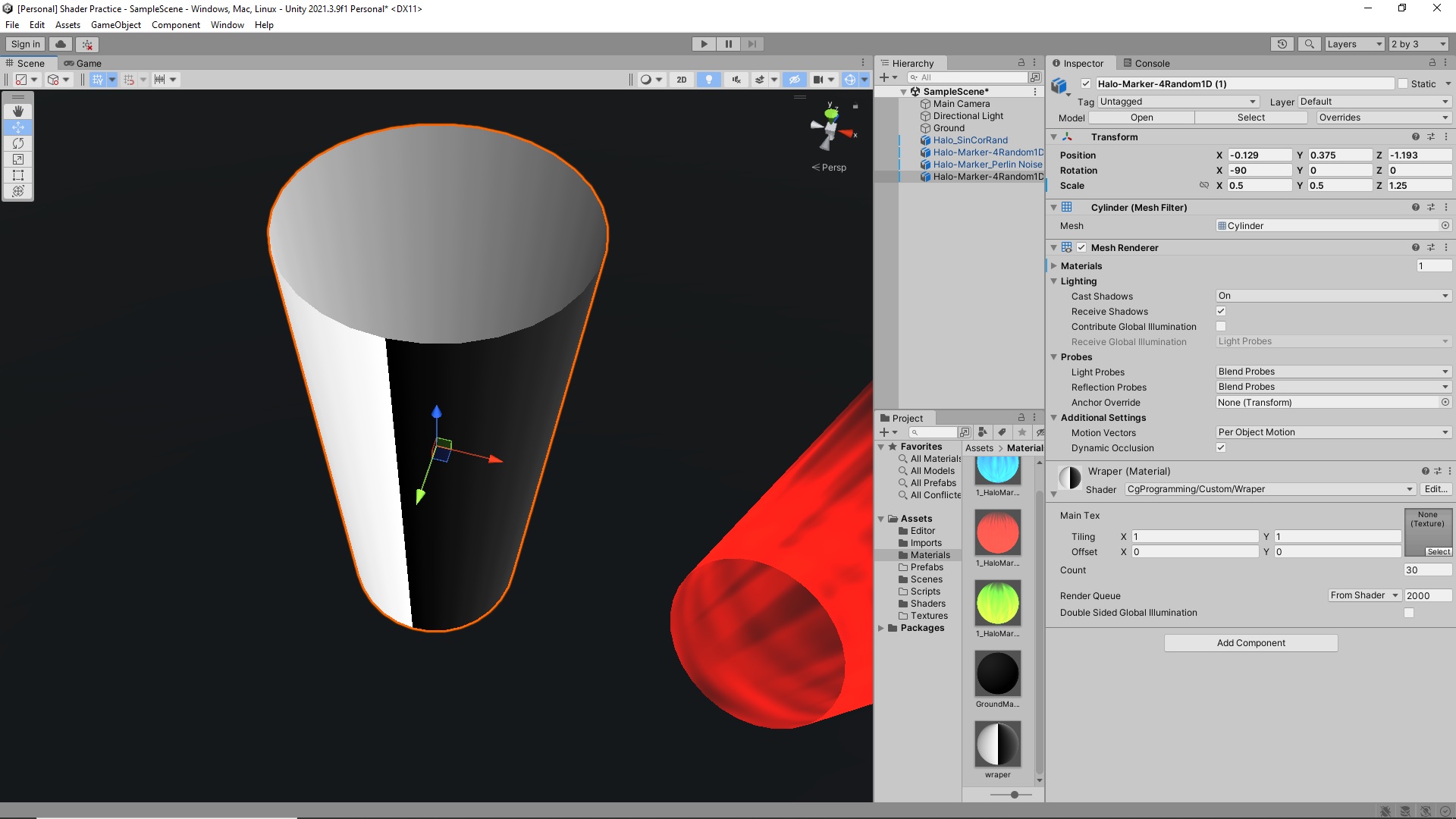

8464865--1124279--tmp.jpg1920×1080 241 KB

8464865–1124285–cylinder.zip (4.69 KB)

2

Have you tried:
int n = _Count + 0.5;

3

I have, it doesn’t work. So far this issue really seems to be more like an internal bug than a feature to me.

4

Tried with 2021.3.0f1 on an Nvidia RTX 3080 and I don’t see any issues, so the bug might be caused by AMD rather than Unity?

Here’s a version of the shader that’ll print the number the shader is getting on top of the gradient:

Shader "MediumSolid/Custom/Wraper"
{
    Properties
    {
        _MainTex("Main Tex", 2D) = "white"
        _Count("Count", Integer) = 1
    }
    SubShader
    {
        Tags { "RenderType"="Opaque" }
        LOD 100

        Pass
        {
            Cull Off
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            sampler2D _MainTex;
            float4 _MainTex_ST;
            uniform half _Count;

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };


            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);

                return o;
            }

            // digit rendering from https://www.shadertoy.com/view/4sBSWW
            float DigitBin( const int x )
            {
                return x==0?480599.0:x==1?139810.0:x==2?476951.0:x==3?476999.0:x==4?350020.0:x==5?464711.0:x==6?464727.0:x==7?476228.0:x==8?481111.0:x==9?481095.0:0.0;
            }

            float PrintValue( float2 vStringCoords, float fValue, float fMaxDigits, float fDecimalPlaces )
            {
                if ((vStringCoords.y < 0.0) || (vStringCoords.y >= 1.0)) return 0.0;

                bool bNeg = ( fValue < 0.0 );
                fValue = abs(fValue);

                float fLog10Value = log2(abs(fValue)) / log2(10.0);
                float fBiggestIndex = max(floor(fLog10Value), 0.0);
                float fDigitIndex = fMaxDigits - floor(vStringCoords.x);
                float fCharBin = 0.0;
                if(fDigitIndex > (-fDecimalPlaces - 1.01)) {
                    if(fDigitIndex > fBiggestIndex) {
                        if((bNeg) && (fDigitIndex < (fBiggestIndex+1.5))) fCharBin = 1792.0;
                    } else {
                        if(fDigitIndex == -1.0) {
                            if(fDecimalPlaces > 0.0) fCharBin = 2.0;
                        } else {
                            float fReducedRangeValue = fValue;
                            if(fDigitIndex < 0.0) { fReducedRangeValue = frac( fValue ); fDigitIndex += 1.0; }
                            float fDigitValue = (abs(fReducedRangeValue / (pow(10.0, fDigitIndex))));
                            fCharBin = DigitBin(int(floor(fmod(fDigitValue, 10.0))));
                        }
                    }
                }
                return floor(fmod((fCharBin / pow(2.0, floor(frac(vStringCoords.x) * 4.0) + (floor(vStringCoords.y * 5.0) * 4.0))), 2.0));
            }

            fixed4 frag (v2f i) : SV_Target
            {
                int n = _Count; // doesn't work properly with some values (e.g. 30)
                // int n = 30; // works fine with any value
                float x_i = floor(i.uv.x*n);
                float x_f = frac(i.uv.x*n);
                float cell1 = x_i/n;
                float cell2 = fmod((x_i+1.0), n)/n;
                float val = lerp(cell1, cell2, x_f*x_f*(3.0-2.0*x_f));

                float num = PrintValue(i.uv * float2(15.0, 5.0) + float2(8.0,-2.0), _Count, 10, 10);
                val = lerp(val, 0.0, num);

                return fixed4(val.xxx, 1.0);
            }
            ENDCG
        }
    }
}

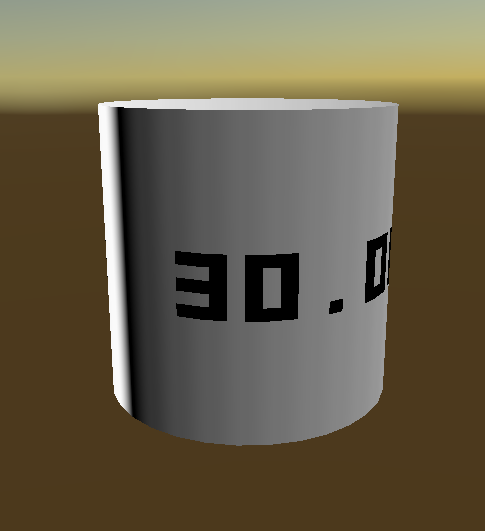

8467301--1124972--upload_2022-9-26_10-39-22.png485×531 15 KB

1 Like
5

Thank you for going out of your way to help me and point out where the problem most likely is.
I consider this thread solved.

UPDATE:
I just tried the code and it spits out the following numbers:

Input_____Output
14 -------> 13
23 -------> 22
28 -------> 27
33 -------> 32
38 -------> 37
41 -------> 40
46 -------> 45
51 -------> 50

6

I’d try changing this line:
uniform half _Count;
to:
int _Count; or float _Count;

(Note uniform isn’t needed as any variable defined outside of a function is by default a uniform.)

1 Like
7

I’ve implemented the changes you’ve suggested and so far no dice. But thank you for the help once more, much appreciated.

8

I would report this as a bug using the in-editor reporting tool. If there is an issue with specific hardware / drivers as I suspect is the case, this is something they’ll need to handle.

Until then I might suggest changing:
_Count("Count", Integer) = 1
to
_Count("Count", Float) = 1
and use float _Count; for the uniform and int n = _Count + 0.5; in the function.

9

It was already set up like that and unfortunately it didn’t change anything.
