[Feature request] 9 slice support for sprite masks

DoctorShinobi · December 13, 2020, 12:12pm

Hey!
I’ve stumbled upon what feels like missing functionality in sprite masks. When using sprite masks the mask won’t respect sprites that are meant to be used as 9 slice sprites.

Here’s an example where I needed this feature: I created a 2D platform and wanted to decorate it with things that are only meant to render inside the platform itself. The platform is 9 slice, but the mask itself isn’t. This means that no matter what I couldn’t synchronize the mask to sit properly on the platform’s sprite renderer.

I eventually did find a workaround using URP render features. But this caused a bunch of other issues that could have been avoided if sprite masks supported 9 slice.

MousePods · December 13, 2020, 3:04pm

+1

I also had to do not so nice workarounds when I learned this wasn’t a feature.

ChuanXin · December 15, 2020, 9:23am

Hi, we will add this to our backlog for consideration. If you have other feature requests related to Sprite Mask, such as masking other Renderers like TilemapRenderer/SpriteShapeRenderer or feathered masking, do let us know! Hearing multiple voices about this does help us in deciding which features to work on!

Leo-Yaik · December 16, 2020, 2:55am

Thanks for the feedback. Would it be possible also to share some visuals or a sample project to confirm our understanding on what you are looking for?

Happy Holidays!

DoctorShinobi · December 16, 2020, 9:28am

Sure. Here’s what I needed it for:

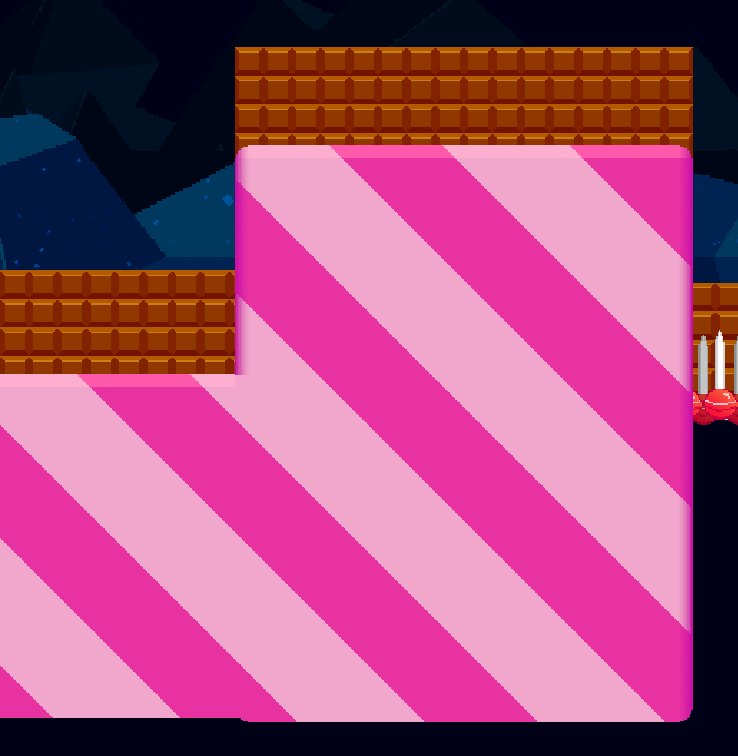

These pink platforms are made of a 9 sliced sprite renderer defining the shape(square with round edges) and base colors. It masks two types of elements within in:

White stripes, which I need to keep proportional no matter the size of the platform. They also need to seamlesly connect when putting platforms next to eachother. These two requirements mean that the white stripes can’t be part of the base sprite. By masking a large repeating stripes sprite I was able to achieve both of these requirements easily.
The second masked element within each platform is a bunch of shadows that are attached to the sides and bottom of the platform. Here’s an example of what I’m talking about:

The reason these shades can’t be part of the base sprite is that I wanted to be able to individually turn off shades in specific sides.
Take this platform as an example:

It’s actually made out of 2 platforms merged together

I was able to merge them so easily because the stripes are just one big repeating renderer that is masked within the platforms, and because the shades can be individually resized and turned off.

Doing all of this is unfortunately impossible using Sprite Mask:

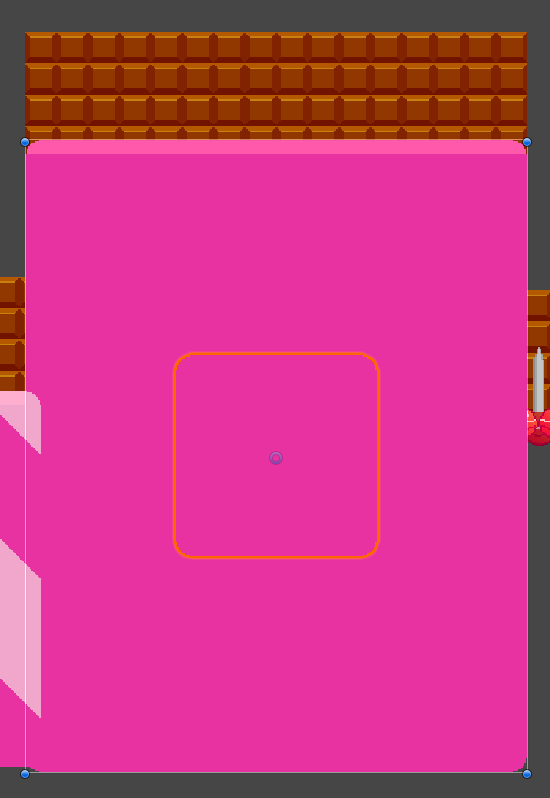

As seen above, the mask’s size doesn’t match the base renderer due to the lack of support for 9 slice. It’s impossible to make it fit exactly, even if you manually scale the mask to fit its parent size.

My workaround was to use URP render features to do some stencil magic, but this takes some more advanced knowledge about rendering than using sprite masks. It also caused me a bunch of render order issues which took me a couple of hours to solve using nasty hacks. I’m talking about the kind of hacks that make Santa personally put a rock in your shoe and beat you up with it for ruining Christmas.

Now I may not survive next Christmas, but maybe one day a future generation of developers will wake on up Christmas day and discover a 9 sliced sprite mask inside their little gift.

Thank you.

cdr9042 · June 3, 2021, 8:50am

Bump

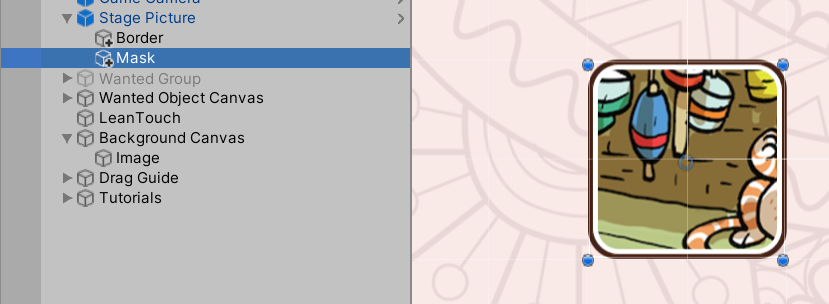

I’m making an object with 3 component: a square picture, a border that goes on top, and a mask to shape the square picture into the rounded square shape of the border

The border can be sliced to keep the rounded corner the same size.
But the mask could not be sliced.
So if I scale them up, this happens. The rounded corner is not the same anymore

Leo-Yaik · June 7, 2021, 3:58am

We are aware of this and we have it in our backlog. I am reaching out within the team to see if there might be a workaround for this.

Long2904 · September 20, 2021, 7:40am

I have this exact problem, too. How did you solve this? What workaround did you use?

cdr9042 · September 21, 2021, 7:14am

I had no workaround. I resorted to using full size texture and regular scaling

vizgl · June 27, 2022, 10:57pm

Need this feature!

DoctorShinobi · June 28, 2022, 7:20am

@ChuanXin @Leo-Yaik Seems like multiple people need this. Any plans for this to ever leave the backlog?

ChuanXin · July 1, 2022, 1:17am

This is currently under development and not in the backlog.

DoctorShinobi · July 1, 2022, 8:37am

Good to know! Thank you

BBO_Lagoon · October 4, 2022, 10:15am

Hi, any ETA for this feature, or maybe an alternative way of doing it ?

BBO_Lagoon · October 21, 2022, 4:03am

Just saw :

2D: Added Sprite/SpriteShape/TilemapRenderer as mask sources for SpriteMask.

In the 2023.1.0 alpha release notes !
Any chances to see this backported in an earlier version ? 2021.3LTS or maybe 2022.x ?

BBO_Lagoon · January 26, 2023, 6:41am

Hi, just make some shaders to have it work in case someone is interested:
There is a shader for the mask and an other for the masked object:
Here is the code for URP:

The mask:
Mask Shader

Shader "custom/StencilMask"
{
    Properties
    {
        [IntRange] _StencilID ("Stencil ID", Range(0, 255)) = 0
        _MainTex ("Sprite Texture", 2D) = "white" {}
        _Color ("Tint", Color) = (1,1,1,1)
        _AlphaCutoff ( "Alpha Cutoff", Range( 0.01, 1.0 ) ) = 0.1

        // Legacy properties. They're here so that materials using this shader can gracefully fallback to the legacy sprite shader.
        [HideInInspector] PixelSnap ("Pixel snap", Float) = 0
        [HideInInspector] _RendererColor ("RendererColor", Color) = (1,1,1,1)
        [HideInInspector] _Flip ("Flip", Vector) = (1,1,1,1)
        [HideInInspector] _AlphaTex ("External Alpha", 2D) = "white" {}
        [HideInInspector] _EnableExternalAlpha ("Enable External Alpha", Float) = 0
    }

    SubShader
    {
        Tags {"Queue" = "Transparent" "RenderType" = "Transparent" "RenderPipeline" = "UniversalPipeline" }

        Blend SrcAlpha OneMinusSrcAlpha
        Cull Off
        ZWrite Off

        Pass
        {
            Tags { "LightMode" = "Universal2D" }

            Blend Zero One

            Stencil
            {
                Ref [_StencilID]
                Comp Always
                Pass Replace
                //Fail Keep
                Fail Replace
            }

            HLSLPROGRAM
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #if defined(DEBUG_DISPLAY)
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/InputData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/SurfaceData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Debug/Debugging2D.hlsl"
            #endif

            #pragma vertex UnlitVertex
            #pragma fragment UnlitFragment

            #pragma multi_compile _ DEBUG_DISPLAY

            struct Attributes
            {
                float3 positionOS   : POSITION;
                float4 color        : COLOR;
                float2 uv           : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct Varyings
            {
                float4  positionCS  : SV_POSITION;
                half4   color       : COLOR;
                float2  uv          : TEXCOORD0;
                #if defined(DEBUG_DISPLAY)
                float3  positionWS  : TEXCOORD2;
                #endif
                UNITY_VERTEX_OUTPUT_STEREO
            };

            TEXTURE2D(_MainTex);
            SAMPLER(sampler_MainTex);
            half4 _MainTex_ST;
            half _AlphaCutoff;

            Varyings UnlitVertex(Attributes v)
            {
                Varyings o = (Varyings)0;
                UNITY_SETUP_INSTANCE_ID(v);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);

                o.positionCS = TransformObjectToHClip(v.positionOS);
                #if defined(DEBUG_DISPLAY)
                o.positionWS = TransformObjectToWorld(v.positionOS);
                #endif
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            half4 UnlitFragment(Varyings i) : SV_Target
            {
                float4 mainTex = i.color * SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv);

                #if defined(DEBUG_DISPLAY)
                SurfaceData2D surfaceData;
                InputData2D inputData;
                half4 debugColor = 0;

                InitializeSurfaceData(mainTex.rgb, mainTex.a, surfaceData);
                InitializeInputData(i.uv, inputData);
                SETUP_DEBUG_DATA_2D(inputData, i.positionWS);

                if(CanDebugOverrideOutputColor(surfaceData, inputData, debugColor))
                {
                    return debugColor;
                }
                #endif

                clip( mainTex.a - _AlphaCutoff );

                if( mainTex.a < 0.1 )
                    return float4(0, 0, 0, 0);

                return mainTex;
            }
            ENDHLSL
        }

        Pass
        {
            Tags { "LightMode" = "UniversalForward" "Queue"="Transparent" "RenderType"="Transparent"}

            Blend Zero One
            /*ZWrite Off*/

            Stencil
            {
                Ref [_StencilID]
                Comp Always
                Pass Replace
                //Fail Keep
                Fail Keep
            }

            HLSLPROGRAM
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #if defined(DEBUG_DISPLAY)
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/InputData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/SurfaceData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Debug/Debugging2D.hlsl"
            #endif

            #pragma vertex UnlitVertex
            #pragma fragment UnlitFragment

            #pragma multi_compile_fragment _ DEBUG_DISPLAY

            struct Attributes
            {
                float3 positionOS   : POSITION;
                float4 color        : COLOR;
                float2 uv           : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct Varyings
            {
                float4  positionCS      : SV_POSITION;
                float4  color           : COLOR;
                float2  uv              : TEXCOORD0;
                #if defined(DEBUG_DISPLAY)
                float3  positionWS      : TEXCOORD2;
                #endif
                UNITY_VERTEX_OUTPUT_STEREO
            };

            TEXTURE2D(_MainTex);
            SAMPLER(sampler_MainTex);
            float4 _MainTex_ST;
            half _AlphaCutoff;

            Varyings UnlitVertex(Attributes attributes)
            {
                Varyings o = (Varyings)0;
                UNITY_SETUP_INSTANCE_ID(attributes);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);

                o.positionCS = TransformObjectToHClip(attributes.positionOS);
                #if defined(DEBUG_DISPLAY)
                o.positionWS = TransformObjectToWorld(attributes.positionOS);
                #endif
                o.uv = TRANSFORM_TEX(attributes.uv, _MainTex);
                o.color = attributes.color;
                return o;
            }

            float4 UnlitFragment(Varyings i) : SV_Target
            {
                float4 mainTex = i.color * SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv);

                #if defined(DEBUG_DISPLAY)
                SurfaceData2D surfaceData;
                InputData2D inputData;
                half4 debugColor = 0;

                InitializeSurfaceData(mainTex.rgb, mainTex.a, surfaceData);
                InitializeInputData(i.uv, inputData);
                SETUP_DEBUG_DATA_2D(inputData, i.positionWS);

                if(CanDebugOverrideOutputColor(surfaceData, inputData, debugColor))
                {
                    return debugColor;
                }
                #endif

                clip( mainTex.a - _AlphaCutoff );

                if( mainTex.a < 0.1 )
                    return float4(0, 0, 0, 0);

                return mainTex;
            }
            ENDHLSL
        }
    }

    Fallback "Sprites/Default"
}

The masked:
Masked Shader

Shader "custom/StencilMasked"
{
    Properties
    {
        [IntRange] _StencilID ("Stencil ID", Range(0, 255)) = 0
        _MainTex ("Sprite Texture", 2D) = "white" {}
        _Color ("Tint", Color) = (1,1,1,1)

        // Legacy properties. They're here so that materials using this shader can gracefully fallback to the legacy sprite shader.
        [HideInInspector] PixelSnap ("Pixel snap", Float) = 0
        [HideInInspector] _RendererColor ("RendererColor", Color) = (1,1,1,1)
        [HideInInspector] _Flip ("Flip", Vector) = (1,1,1,1)
        [HideInInspector] _AlphaTex ("External Alpha", 2D) = "white" {}
        [HideInInspector] _EnableExternalAlpha ("Enable External Alpha", Float) = 0
    }

    SubShader
    {
        Tags {"Queue" = "Transparent" "RenderType" = "Transparent" "RenderPipeline" = "UniversalPipeline" }

        Blend SrcAlpha OneMinusSrcAlpha
        Cull Off
        ZWrite Off

        Pass
        {
            Tags { "LightMode" = "Universal2D" }

            Stencil
            {
                Ref [_StencilID]
                Comp Equal
                /*Pass Replace
                Fail Keep*/
            }

            HLSLPROGRAM
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #if defined(DEBUG_DISPLAY)
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/InputData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/SurfaceData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Debug/Debugging2D.hlsl"
            #endif

            #pragma vertex UnlitVertex
            #pragma fragment UnlitFragment

            #pragma multi_compile _ DEBUG_DISPLAY

            struct Attributes
            {
                float3 positionOS   : POSITION;
                float4 color        : COLOR;
                float2 uv           : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct Varyings
            {
                float4  positionCS  : SV_POSITION;
                half4   color       : COLOR;
                float2  uv          : TEXCOORD0;
                #if defined(DEBUG_DISPLAY)
                float3  positionWS  : TEXCOORD2;
                #endif
                UNITY_VERTEX_OUTPUT_STEREO
            };

            TEXTURE2D(_MainTex);
            SAMPLER(sampler_MainTex);
            half4 _MainTex_ST;

            Varyings UnlitVertex(Attributes v)
            {
                Varyings o = (Varyings)0;
                UNITY_SETUP_INSTANCE_ID(v);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);

                o.positionCS = TransformObjectToHClip(v.positionOS);
                #if defined(DEBUG_DISPLAY)
                o.positionWS = TransformObjectToWorld(v.positionOS);
                #endif
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            half4 UnlitFragment(Varyings i) : SV_Target
            {
                float4 mainTex = i.color * SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv);

                #if defined(DEBUG_DISPLAY)
                SurfaceData2D surfaceData;
                InputData2D inputData;
                half4 debugColor = 0;

                InitializeSurfaceData(mainTex.rgb, mainTex.a, surfaceData);
                InitializeInputData(i.uv, inputData);
                SETUP_DEBUG_DATA_2D(inputData, i.positionWS);

                if(CanDebugOverrideOutputColor(surfaceData, inputData, debugColor))
                {
                    return debugColor;
                }
                #endif

                return mainTex;
            }
            ENDHLSL
        }

        Pass
        {
            Tags { "LightMode" = "UniversalForward" "Queue"="Transparent" "RenderType"="Transparent"}

            Stencil
            {
                Ref [_StencilID]
                Comp Equal
            }

            HLSLPROGRAM
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
            #if defined(DEBUG_DISPLAY)
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/InputData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/Shaders/2D/Include/SurfaceData2D.hlsl"
            #include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Debug/Debugging2D.hlsl"
            #endif

            #pragma vertex UnlitVertex
            #pragma fragment UnlitFragment

            #pragma multi_compile_fragment _ DEBUG_DISPLAY

            struct Attributes
            {
                float3 positionOS   : POSITION;
                float4 color        : COLOR;
                float2 uv           : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID
            };

            struct Varyings
            {
                float4  positionCS      : SV_POSITION;
                float4  color           : COLOR;
                float2  uv              : TEXCOORD0;
                #if defined(DEBUG_DISPLAY)
                float3  positionWS      : TEXCOORD2;
                #endif
                UNITY_VERTEX_OUTPUT_STEREO
            };

            TEXTURE2D(_MainTex);
            SAMPLER(sampler_MainTex);
            float4 _MainTex_ST;

            Varyings UnlitVertex(Attributes attributes)
            {
                Varyings o = (Varyings)0;
                UNITY_SETUP_INSTANCE_ID(attributes);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);

                o.positionCS = TransformObjectToHClip(attributes.positionOS);
                #if defined(DEBUG_DISPLAY)
                o.positionWS = TransformObjectToWorld(attributes.positionOS);
                #endif
                o.uv = TRANSFORM_TEX(attributes.uv, _MainTex);
                o.color = attributes.color;
                return o;
            }

            float4 UnlitFragment(Varyings i) : SV_Target
            {
                float4 mainTex = i.color * SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv);

                #if defined(DEBUG_DISPLAY)
                SurfaceData2D surfaceData;
                InputData2D inputData;
                half4 debugColor = 0;

                InitializeSurfaceData(mainTex.rgb, mainTex.a, surfaceData);
                InitializeInputData(i.uv, inputData);
                SETUP_DEBUG_DATA_2D(inputData, i.positionWS);

                if(CanDebugOverrideOutputColor(surfaceData, inputData, debugColor))
                {
                    return debugColor;
                }
                #endif

                return mainTex;
            }
            ENDHLSL
        }
    }

    Fallback "Sprites/Default"
}

This works with stencil so no alpha masking support.
Make sure to set the stencil ID for the mask and the masked object at the same value

BBO_Lagoon · January 26, 2023, 6:45am

Here is the non URP version:

Mask Shader

Shader "custom/builtin/StencilMask"
{
    Properties
    {
        [IntRange] _StencilID ("Stencil ID", Range(0, 255)) = 0
        _AlphaCutoff ( "Alpha Cutoff", Range( 0.01, 1.0 ) ) = 0.1

         [PerRendererData] _MainTex ("Sprite Texture", 2D) = "white" {}
        _Color ("Tint", Color) = (1,1,1,1)
        [MaterialToggle] PixelSnap ("Pixel snap", Float) = 0
        [HideInInspector] _RendererColor ("RendererColor", Color) = (1,1,1,1)
        [HideInInspector] _Flip ("Flip", Vector) = (1,1,1,1)
        [PerRendererData] _AlphaTex ("External Alpha", 2D) = "white" {}
        [PerRendererData] _EnableExternalAlpha ("Enable External Alpha", Float) = 0
    }

    SubShader
    {
        Tags
        {
            "Queue"="Transparent"
            "IgnoreProjector"="True"
            "RenderType"="Transparent"
            "PreviewType"="Plane"
            "CanUseSpriteAtlas"="True"
        }


        Cull Off
        Lighting Off
        ZWrite Off
        Blend One OneMinusSrcAlpha

        Pass
        {
            Blend Zero One

            Stencil
            {
                Ref [_StencilID]
                Comp Always
                Pass Replace
                //Fail Keep
                Fail Replace
            }

            CGPROGRAM
            #pragma vertex SpriteVert
            #pragma fragment SpriteFrag
            #pragma target 2.0
            #pragma multi_compile_instancing
            #pragma multi_compile_local _ PIXELSNAP_ON
            #pragma multi_compile _ ETC1_EXTERNAL_ALPHA
            #include "MaskUnitySprite.cginc"
            ENDCG
        }
    }
}

Masked Shader

Shader "custom/builtin/StencilMasked"
{
    Properties
    {
        [IntRange] _StencilID ("Stencil ID", Range(0, 255)) = 0
         [PerRendererData] _MainTex ("Sprite Texture", 2D) = "white" {}
        _Color ("Tint", Color) = (1,1,1,1)
        [MaterialToggle] PixelSnap ("Pixel snap", Float) = 0
        [HideInInspector] _RendererColor ("RendererColor", Color) = (1,1,1,1)
        [HideInInspector] _Flip ("Flip", Vector) = (1,1,1,1)
        [PerRendererData] _AlphaTex ("External Alpha", 2D) = "white" {}
        [PerRendererData] _EnableExternalAlpha ("Enable External Alpha", Float) = 0
    }

    SubShader
    {
        Tags
        {
            "Queue"="Transparent"
            "IgnoreProjector"="True"
            "RenderType"="Transparent"
            "PreviewType"="Plane"
            "CanUseSpriteAtlas"="True"
        }

        Cull Off
        Lighting Off
        ZWrite Off
        Blend One OneMinusSrcAlpha

        Pass
        {
            Stencil
            {
                Ref [_StencilID]
                Comp Equal
            }

            CGPROGRAM
            #pragma vertex SpriteVert
            #pragma fragment SpriteFrag
            #pragma target 2.0
            #pragma multi_compile_instancing
            #pragma multi_compile_local _ PIXELSNAP_ON
            #pragma multi_compile _ ETC1_EXTERNAL_ALPHA
            #include "UnitySprites.cginc"
            ENDCG
        }
    }
}

OneManEscapePlan · November 3, 2023, 2:18am

The shader doesn’t do any good without the “UnitySprites.cginc” file.

EDIT: Whoops, that was a typo - meant to write “MaskUnitySprite.cginc”

BBO_Lagoon · November 3, 2023, 4:40am

Hi, “UnitySprites.cginc” should be in the “Editor\Data\CGIncludes\UnitySprites.cginc” and available in your project to use. But effectively the “MaskUnitySprite.cginc” is missing.

Here is “MaskUnitySprite.cginc” content:

MaskUnitySprite.cginc

#ifndef UNITY_SPRITES_INCLUDED
#define UNITY_SPRITES_INCLUDED

#include "UnityCG.cginc"

#ifdef UNITY_INSTANCING_ENABLED

    UNITY_INSTANCING_BUFFER_START(PerDrawSprite)
        // SpriteRenderer.Color while Non-Batched/Instanced.
        UNITY_DEFINE_INSTANCED_PROP(fixed4, unity_SpriteRendererColorArray)
        // this could be smaller but that's how bit each entry is regardless of type
        UNITY_DEFINE_INSTANCED_PROP(fixed2, unity_SpriteFlipArray)
    UNITY_INSTANCING_BUFFER_END(PerDrawSprite)

    #define _RendererColor  UNITY_ACCESS_INSTANCED_PROP(PerDrawSprite, unity_SpriteRendererColorArray)
    #define _Flip           UNITY_ACCESS_INSTANCED_PROP(PerDrawSprite, unity_SpriteFlipArray)

#endif // instancing

CBUFFER_START(UnityPerDrawSprite)
#ifndef UNITY_INSTANCING_ENABLED
    fixed4 _RendererColor;
    fixed2 _Flip;
#endif
    float _EnableExternalAlpha;
CBUFFER_END

// Material Color.
fixed4 _Color;

struct appdata_t
{
    float4 vertex   : POSITION;
    float4 color    : COLOR;
    float2 texcoord : TEXCOORD0;
    UNITY_VERTEX_INPUT_INSTANCE_ID
};

struct v2f
{
    float4 vertex   : SV_POSITION;
    fixed4 color    : COLOR;
    float2 texcoord : TEXCOORD0;
    UNITY_VERTEX_OUTPUT_STEREO
};

inline float4 UnityFlipSprite(in float3 pos, in fixed2 flip)
{
    return float4(pos.xy * flip, pos.z, 1.0);
}

v2f SpriteVert(appdata_t IN)
{
    v2f OUT;

    UNITY_SETUP_INSTANCE_ID (IN);
    UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(OUT);

    OUT.vertex = UnityFlipSprite(IN.vertex, _Flip);
    OUT.vertex = UnityObjectToClipPos(OUT.vertex);
    OUT.texcoord = IN.texcoord;
    OUT.color = IN.color * _Color * _RendererColor;

    #ifdef PIXELSNAP_ON
    OUT.vertex = UnityPixelSnap (OUT.vertex);
    #endif

    return OUT;
}

sampler2D _MainTex;
sampler2D _AlphaTex;
float _Grayscale;
float _AlphaCutoff;

fixed4 SampleSpriteTexture (float2 uv)
{
    fixed4 color = tex2D (_MainTex, uv);

#if ETC1_EXTERNAL_ALPHA
    fixed4 alpha = tex2D (_AlphaTex, uv);
    color.a = lerp (color.a, alpha.r, _EnableExternalAlpha);
#endif

    return color;
}

fixed4 SpriteFrag(v2f IN) : SV_Target
{
    fixed4 c = SampleSpriteTexture (IN.texcoord) * IN.color;

    //c.rgb *= c.a;

    clip( c.a - _AlphaCutoff );

    if( c.a < 0.1 )
        return float4(0, 0, 0, 0);

    return c;
}

#endif // UNITY_SPRITES_INCLUDED

Note that I use this shaders on Unity 2021.3 and I never tested them on an older version.

OneManEscapePlan · November 3, 2023, 5:11pm

Whoops, that was a typo. Thanks!

Topic		Replies	Views
9-slice mask on tiled image (2021.3) Unity Engine 2D , 9-slice , Sprite-Mask , Question	1	581	October 8, 2023
UI Mask/Mask2D interaction Unity Engine 2D , Feedback	3	3456	July 10, 2018
[Released] Sprite Mask - masking system for Unity Sprite Community Showcases Asset-Store-Assets	328	98943	February 17, 2024
2D Alpha Release 3 Unity Engine 2D , Official	54	11315	October 6, 2015
How to add sprite mask to a sprite skin? Unity Engine 2D , Physics , Sprite-Mask , Question	6	2310	November 9, 2023

[Feature request] 9 slice support for sprite masks

Related topics
