Getting World Coordinates of a UI-Rect Transform in 3D

Unity Engine
1

Hi all,

I want to get the world position of a bar in a 2d barchart that is on a canvas in world space. The bar itself is a 2d Image sprite that is transformed using rect transform. Additionally, it is part of a horizontal layout grid.

I tried to get the positions of the bar using:

bar.gameObject.transform.position; //the position of the Image-UI element, where bar is the Image sprite

this however gives me a weird position somewhere in world space (I don’t even know where this position comes from). I attached two images to illustrate the issue:

1064×822 66.1 KB

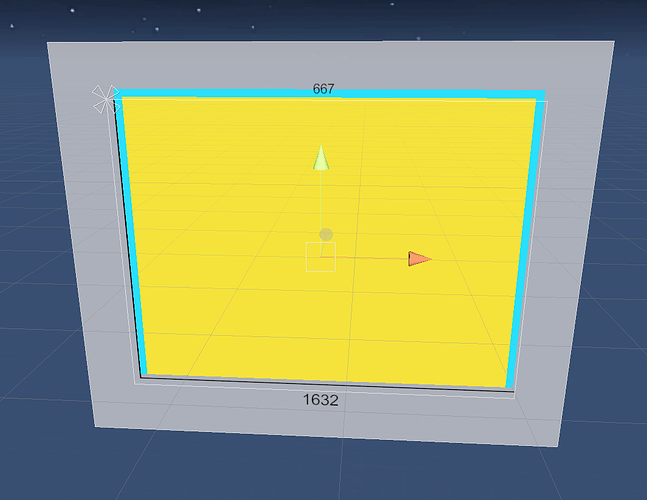

Here is one bar. I would like to get the position of the origin you can see in the image
1136×1138 197 KB

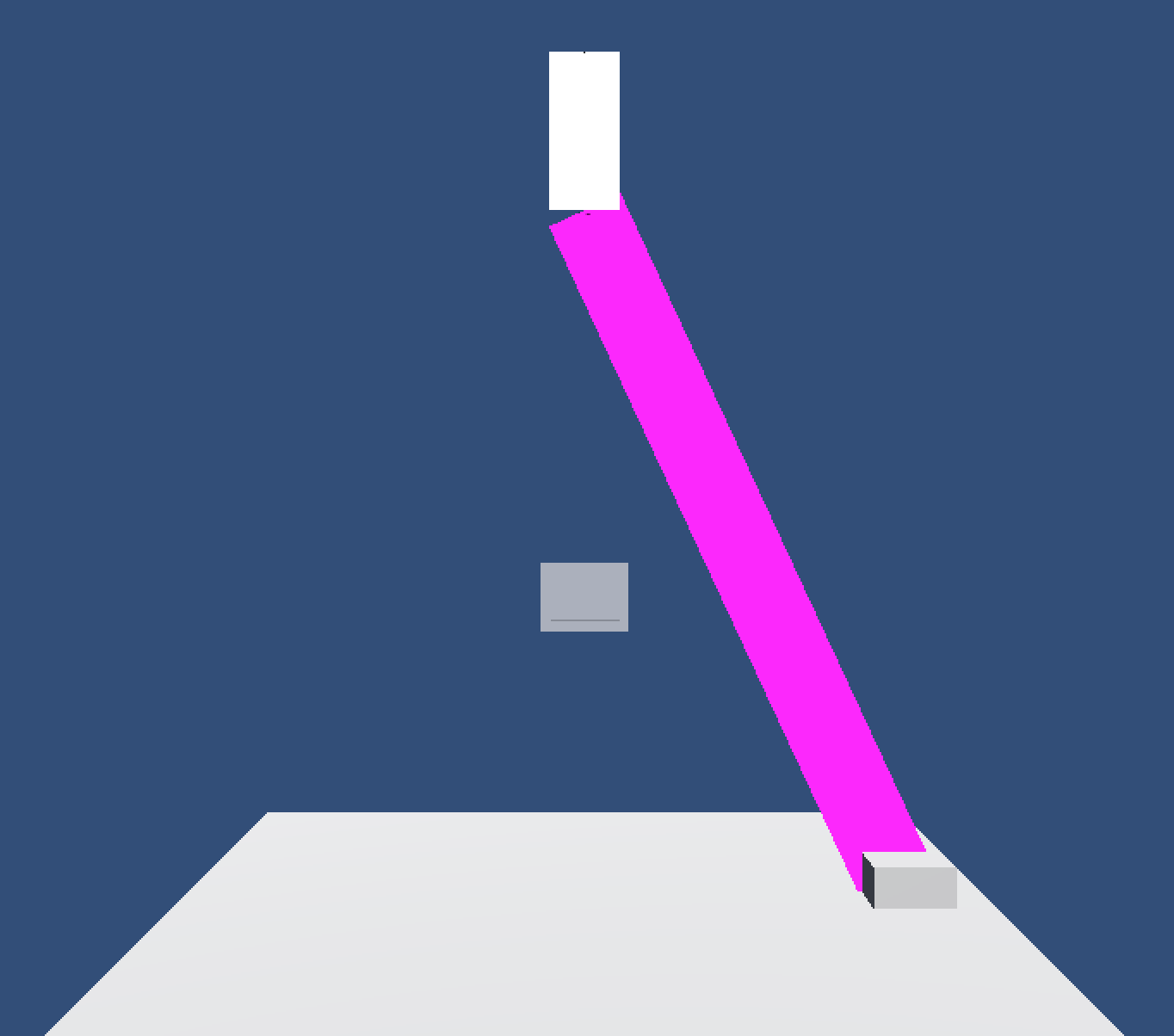

Here I’ve drawn a line from the table you can see in the lower right corner to the transform position. As you can see the line goes way over the Image.

2

I was curious about this myself so I did some tinkering.

The magic sauce I think you’re missing is probably two things:

  • a setting in the CanvasScaler object on your Canvas. It maps the pixels in the canvas to the world coordinates.
  • setting the size of your Canvas RectTransform to be comparable to your world stuff.

I set my pixel scaler to 800 pixels per world unit, just to get the text reasonable scale-wise.

I set my canvas to 10 wide 7 high to match a plane in my 3D scene.

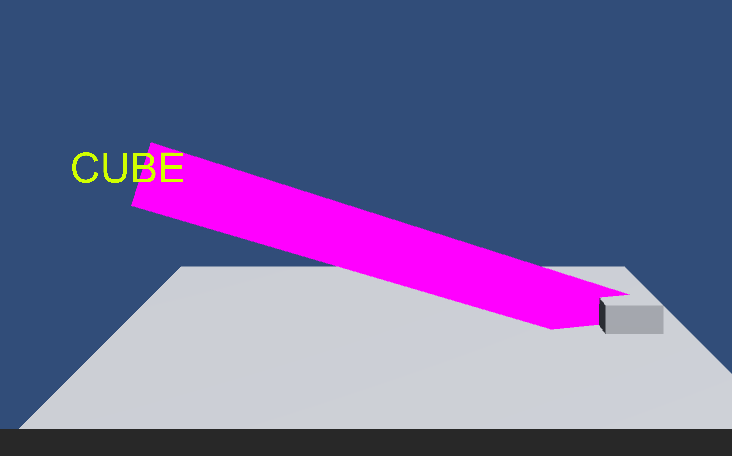

See the attached unitypackage. Press run and it puts the two ends of a line renderer at the canvas text object and the cube. Look at the settings I used in the canvas scaler and the canvas rect.

That was done in Unity 5.6.2 and uses the new .numPositions property of the line renderer. If you’re in much-earlier Unity there is a different property to set the vert count, I forget what. You can probably just delete that line because I put two verts in the LineRenderer in the scene.

3372939–264519–ForumWorldCanvases.unitypackage (5.34 KB)

3372939--264520--ForumWorldCanvases.png732×456 3.78 KB

3

Hey,

thanks for the answer! Your example actually lead me to digging a bit further:

The issue is in fact the horizontal layout group! I modified your code with me example and it lead me to this:

1364×1204 6.97 KB

Without Horizontal Layout Group the line (the pink line) goes correctly to the origin of the bar (now simply a child of the canvas hanging somewhere in the air ;))

1608×1224 7.04 KB

With Horizontal Layout Group the line is still at the old origin of the bar.

Can anyone explain how this works?

4

Did you know that the Unity UI code is open-source? You can get it here:

https://bitbucket.org/Unity-Technologies/ui

The relevant class is tiny, so not sure what is happening in your case. I’ll copy/paste the class here:

namespace UnityEngine.UI
{
    [AddComponentMenu("Layout/Horizontal Layout Group", 150)]
    public class HorizontalLayoutGroup : HorizontalOrVerticalLayoutGroup
    {
        protected HorizontalLayoutGroup()
        {}
        public override void CalculateLayoutInputHorizontal()
        {
            base.CalculateLayoutInputHorizontal();
            CalcAlongAxis(0, false);
        }
        public override void CalculateLayoutInputVertical()
        {
            CalcAlongAxis(1, false);
        }
        public override void SetLayoutHorizontal()
        {
            SetChildrenAlongAxis(0, false);
        }
        public override void SetLayoutVertical()
        {
            SetChildrenAlongAxis(1, false);
        }
    }
}
