Glass-Stained-BumpDistort.shader for OpenGL?

Unity Engine
1

Unfortunally the Glass-Stained-BumpDistort.shader of the standard pro package wont work with OpenGL and my Mac. Does anybody knows an alternate shader? It looks so great and I discovered to late that I can not use it with the Mac. :frowning:

Thanks!

2

The shader works fine on our Macs. Perhaps explain the problem in more detail.

3

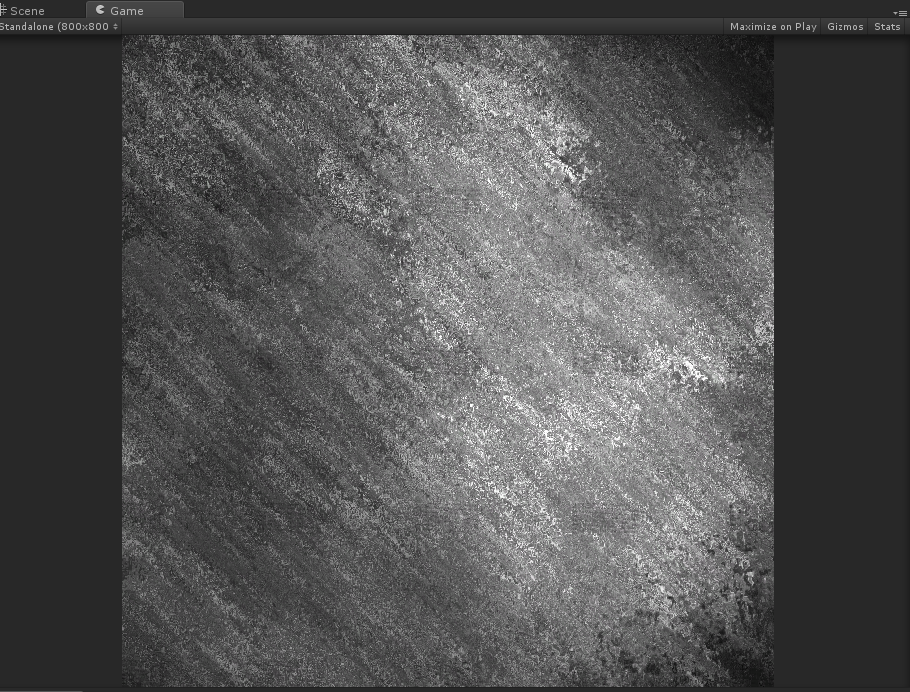

The problem is that the plane what uses the shader is not displaying the desired effect, just the main texture without lightning. Please see the attached files for a comparsion of the mac and win version.
I guess it is because the shader got the following lines in it:

// Upgrade NOTE: excluded shader from OpenGL ES 2.0 because it does not contain a surface program or both vertex and fragment programs.
#pragma exclude_renderers gles

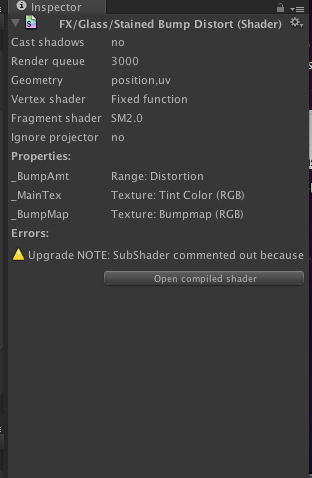

It wont compile on my mac, I attached the error screen. I have no shader experience, simply removing these lines wont help.

My mac is the latest mac mini, so the graphic processor is no problem.

483602--16974--$mac.PNG739×460 120 KB

483602--16975--$win.PNG910×692 805 KB


4

Mmhh, I removed the ATI 9000 stuff in the shader and it compiles fine on my mac. However => still not working.

5

The OpenGL ES 2.0 thing only affects iOS. Can you post the shader in its current state?

6

Try this one, its same glass shader but using surface shaders, and also has normal mapping, specularity and alpha.
To use alpha, offcourse you have to change the line “#pragma surface surf BlinnPhong” as “#pragma surface surf BlinnPhong alpha”

Shader "Test" {
Properties {
_Color ("Main Color", Color) = (1,1,1,1)
_SpecColor ("Specular Color", Color) = (0.5, 0.5, 0.5, 1)
_Shininess ("Shininess", Range (0.03, 1)) = 0.3
_MainTex ("Base (RGB)", 2D) = "white" {}
_BumpMap ("Normalmap", 2D) = "bump" {}
_DistAmt ("Distortion", range (0,128)) = 10
}
SubShader {
GrabPass { }

Tags { "Queue"="Transparent" "IgnoreProjector"="True" "RenderType"="Opaque" }
LOD 200

CGPROGRAM
#pragma exclude_renderers gles
#pragma vertex vert
#pragma surface surf BlinnPhong
#include "UnityCG.cginc"

float4 _Color;
float _Shininess;
sampler2D _MainTex;
sampler2D _BumpMap;
sampler2D _GrabTexture;
float _DistAmt;
float4 _GrabTexture_TexelSize;

struct Input {
float2 uv_MainTex;
float2 uv_BumpMap;
float4 proj : TEXCOORD;
};

void vert (inout appdata_full v, out Input o) {
float4 oPos = mul(UNITY_MATRIX_MVP, v.vertex);
#if UNITY_UV_STARTS_AT_TOP
float scale = -1.0;
#else
float scale = 1.0;
#endif
o.proj.xy = (float2(oPos.x, oPos.y*scale) + oPos.w) * 0.5;
o.proj.zw = oPos.zw;
}

void surf (Input IN, inout SurfaceOutput o) {
half4 nor = UnpackNormal(tex2D(_BumpMap, IN.uv_BumpMap));

float2 offset = nor * _DistAmt * _GrabTexture_TexelSize.xy;
IN.proj.xy = offset * IN.proj.z + IN.proj.xy;
half4 col = tex2Dproj( _GrabTexture, UNITY_PROJ_COORD(IN.proj));

half4 tex = tex2D(_MainTex, IN.uv_MainTex);
o.Albedo = tex.rgb * _Color.rgb * col.rgb;
o.Normal = nor.rgb;
o.Specular = _Shininess;
o.Gloss = tex.a;
o.Alpha = tex.a * _Color.a;
}
ENDCG
}
FallBack "Diffuse"
}
