How can I improve my Ground Check?

Unity Engine
1
using System;
using System.Threading;
using UnityEngine;
//using UnityEngine.UIElements;
using UnityEngine.XR;

public class Player_move : MonoBehaviour
{
    //movement variables
    public CharacterController characterController;
    public float MovementSpeed = 7.75f;

    //gravity && jump variables
    public float Gravity = -0.25f;
    public Vector3 velocity;
    public float jump_height = 0.03f;
    //ground check variabels
    public Transform GroundCheckC;
    public float groundDistance = 0.1f;
    public float jumpdistance = 0.5f;
    public LayerMask groundMask;
    bool isGrounded;
    bool canjump;

    //rotation variables
    private float camera_x_rotation = 0;
    private float camera_y_rotation = 0;


    private void Start()
    {
        characterController = GetComponent<CharacterController>();


    }

    void Update()
    {
        Cursor.lockState = CursorLockMode.Locked;
        Cursor.visible = false;
        isGrounded = Physics.CheckSphere(GroundCheckC.position, groundDistance, groundMask);
        //Physics.Check
        canjump = Physics.CheckSphere(GroundCheckC.position, jumpdistance, groundMask);
        //player movement - forward, backward, left, right

        float horizontal = Input.GetAxis("Horizontal") * MovementSpeed;
        float vertical = Input.GetAxis("Vertical") * MovementSpeed;
        Vector3 moveDirection = new Vector3(Input.GetAxis("Horizontal"), 0f, Input.GetAxis("Vertical"));
        moveDirection = transform.TransformDirection(moveDirection);
        moveDirection *= MovementSpeed;
        characterController.Move(moveDirection * Time.deltaTime);
        //camera rotation
        float rotation_speed = 4;
        camera_x_rotation += Input.GetAxis("Mouse Y");
        camera_y_rotation += Input.GetAxis("Mouse X");
        float max_x_rotation = -70;
        camera_x_rotation = Mathf.Clamp(camera_x_rotation, max_x_rotation, -max_x_rotation);
        transform.localRotation = Quaternion.AngleAxis(camera_y_rotation, Vector3.up);
        Camera.main.transform.localRotation = Quaternion.AngleAxis(-camera_x_rotation, Vector3.right);



        //Gravity && Jump
        if (isGrounded && velocity.y < 0)
        {
            velocity.y = 0f;
        }
        if (Input.GetButton("Jump") && canjump)
        {
            velocity.y = Mathf.Sqrt(jump_height * -2f * Gravity);
        }

        velocity.y += Gravity * Time.deltaTime;

        characterController.Move(velocity);



    }
    }

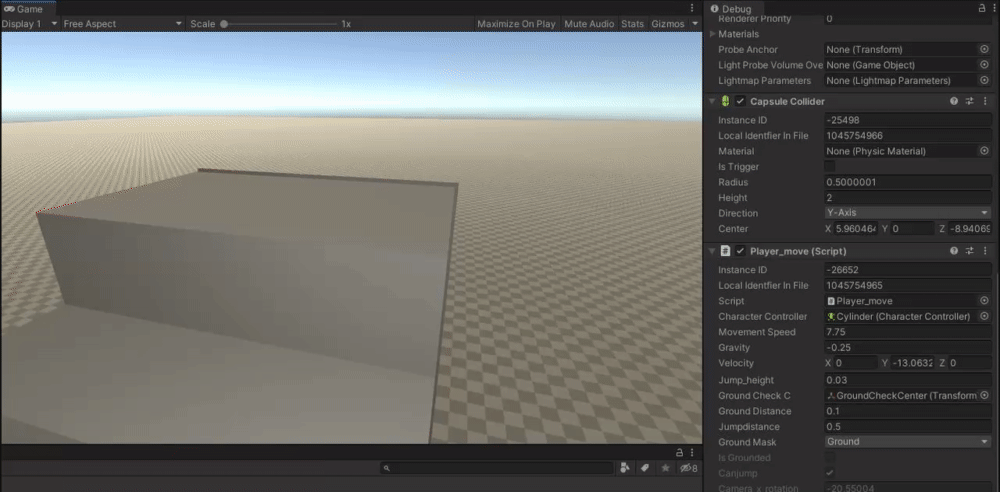

Currently When I’m on a ledge, it wont think I’m Grounded, and this this happens:

https://i.gyazo.com/f36568f1c85d1a35686637c8b2738657.gif

I can’t just make the groundDistance larger, because otherwise im very far off the ground, and it messes up other puzzles and such.
So how can i change this, to avoid the problem, and still be close to the ground.
PS It takes about a groundDistance of .5 in order to avoid this, but then im 5x higher in the air which is very far.

2

The above code looks originally derived from the Unity API scripting reference for CharacterController, which used to work fine.

HOWEVER… today I just saw a second post (this post is a third post) reporting issues with ground detection.

I wrote it up over here:

Along with a patched script to fix the problem.

The main fixes I made are:

  • to only call .Move() once per frame, with a fully-fleshed out velocity instead of twice the way you are above (and the way the Unity sample shows)

  • to let “on ground” linger momentarily after you are not on the ground, to facilitate jumping even when you are “stumbling” down a ramp, which the original code failed on.

Take a look, shouldn’t be too hard to fix the above code the same way, at least if that is the problem.
