I am trying this shader in URP,but something just wrong
The shader tutorial
And here is the shader link
My shader and code if you need
DistortionParticle
Shader "Unlit/DistortionParticle"
{
Properties
{
_MainTex ("Texture", 2D) = "white" {}
_Magnitude ("Magnitude", Float) = 1
}
SubShader
{
Tags
{
"RenderType" = "Transparent"
"Queue" = "Transparent"
}
Pass
{
Blend One One
Cull Off
ZWrite Off
ZTest Always
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
struct appdata
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
float4 color : COLOR;
};
struct v2f
{
float4 vertex : SV_POSITION;
float2 uv : TEXCOORD0;
float alpha : TEXCOORD1;
float4 projPos : TEXCOORD2;
};
sampler2D _MainTex;
sampler2D_float _CameraDepthTexture;
float4 _MainTex_ST;
float _Magnitude;
v2f vert (appdata v)
{
v2f o;
o.vertex = UnityObjectToClipPos(v.vertex);
o.uv = TRANSFORM_TEX(v.uv, _MainTex);
o.alpha = v.color.a;
o.projPos = ComputeScreenPos(o.vertex);
COMPUTE_EYEDEPTH(o.projPos.z);
return o;
}
float2 frag (v2f i) : SV_Target
{
float sceneEyeDepth = DECODE_EYEDEPTH(tex2D(_CameraDepthTexture, i.projPos.xy / i.projPos.w));
float zCull = sceneEyeDepth > i.projPos.z;
float3 data = UnpackNormal(tex2D(_MainTex, i.uv)).xyz;
float scale = data.b * i.alpha * _Magnitude;
return data.rg * scale * zCull;
}
ENDCG
}
}
}
Distortion
Shader "Hidden/Distortion" {
Properties{
_MainTex("MainTex",2D) = "White"{}
_GlobalDistortionTex("GlobalDistortionTex",2D) = "White"{}
_Magnitude("Magnitude",float) = 1
}
SubShader{
Tags { "RenderPipeline" = "UniversalPipeline" }
HLSLINCLUDE
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Core.hlsl"
CBUFFER_START(UnityPerMaterial)
TEXTURE2D(_MainTex);
SAMPLER(sampler_MainTex);
TEXTURE2D(_GlobalDistortionTex);
SAMPLER(sampler_GlobalDistortionTex);
float4 _MainTex_TexelSize;
float _Magnitude;
float4 _MainTex_ST;
CBUFFER_END
ENDHLSL
// No culling or depth
Cull Off ZWrite Off ZTest Always
Pass {
Name "Distortion"
HLSLPROGRAM
#pragma vertex vert
#pragma fragment frag
struct Attributes {
float4 positionOS : POSITION;
float2 uv : TEXCOORD0;
};
struct Varyings {
float4 positionCS : SV_POSITION;
float2 uv : TEXCOORD0;
};
Varyings vert(Attributes IN) {
Varyings OUT;
OUT.positionCS = TransformObjectToHClip(IN.positionOS.xyz);
OUT.uv = TRANSFORM_TEX(IN.uv, _MainTex);
return OUT;
}
half4 frag(Varyings i) : SV_Target {
float2 mag = _Magnitude * _MainTex_TexelSize.xy;
float2 distortion = SAMPLE_TEXTURE2D(_GlobalDistortionTex, sampler_GlobalDistortionTex, i.uv).xy * mag;
float4 color = SAMPLE_TEXTURE2D(_MainTex, sampler_MainTex, i.uv+ distortion);
return color;
}
ENDHLSL
}
}
}
ScriptableRendererFeature
using UnityEngine;
using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;
public class Heat : ScriptableRendererFeature
{
public Setting settings = new Setting();
CustomRenderPass m_ScriptablePass;
RenderTargetHandle heatTexture;
public override void AddRenderPasses(ScriptableRenderer renderer, ref RenderingData renderingData)
{
m_ScriptablePass.set(renderingData.cameraData.cameraTargetDescriptor,renderer.cameraColorTarget, heatTexture);
renderer.EnqueuePass(m_ScriptablePass);
}
public override void Create()
{
settings.heatItem = GameObject.FindObjectOfType<HeatItem>();
m_ScriptablePass =
new CustomRenderPass(settings.Magnitude, settings.DownScaleFactor,settings.heatItem,settings.mat);
}
[System.Serializable]
public class Setting
{
public RenderPassEvent renderPassEvent;
public int Magnitude;
public int DownScaleFactor;
public HeatItem heatItem;
public Material mat;
}
class CustomRenderPass : ScriptableRenderPass
{
RenderTargetIdentifier sour;
public int Magnitude;
public int DownScaleFactor;
public HeatItem heatItem;
public Material mat;
private RenderTargetHandle tempRenderTarget;
private RenderTargetHandle heatRenderTarget;
internal RenderTextureDescriptor descriptor { get; private set; }
public CustomRenderPass(int Magnitude, int DownScaleFactor, HeatItem heatItem, Material mat)
{
this.Magnitude = Magnitude;
this.DownScaleFactor = DownScaleFactor;
this.mat = mat;
this.heatItem = heatItem;
tempRenderTarget.Init("TemporaryColorTexture");
heatRenderTarget.Init("_GlobalDistortionTex");
}
public void set(RenderTextureDescriptor baseDescriptor,RenderTargetIdentifier sour, RenderTargetHandle heat)
{
this.sour = sour;
this.heatRenderTarget = heat;
baseDescriptor.colorFormat = RenderTextureFormat.RGFloat;
baseDescriptor.depthBufferBits = 0;
descriptor = baseDescriptor;
}
public override void Configure(CommandBuffer cmd, RenderTextureDescriptor cameraTextureDescriptor)
{
cmd.GetTemporaryRT(heatRenderTarget.id, descriptor, FilterMode.Bilinear);
ConfigureTarget(heatRenderTarget.Identifier());
ConfigureClear(ClearFlag.Color, Color.clear);
}
public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
{
if (heatItem.material == null) return;
mat.SetFloat("_Magnitude", Magnitude);
RenderTextureDescriptor
SSdesc = renderingData.cameraData.cameraTargetDescriptor;
Camera cam = renderingData.cameraData.camera;
CommandBuffer cmd = CommandBufferPool.Get("Heat");
cmd.DrawRenderer(heatItem.renderer, heatItem.material);
cmd.SetGlobalTexture("_GlobalDistortionTex", heatRenderTarget.id);
cmd.GetTemporaryRT(tempRenderTarget.id, renderingData.cameraData.cameraTargetDescriptor);
Blit(cmd, sour, tempRenderTarget.Identifier(), mat);
Blit(cmd, tempRenderTarget.Identifier(), sour);
context.ExecuteCommandBuffer(cmd);
CommandBufferPool.Release(cmd);
}
public override void FrameCleanup(CommandBuffer cmd)
{
if (heatRenderTarget != RenderTargetHandle.CameraTarget)
{
cmd.ReleaseTemporaryRT(heatRenderTarget.id);
heatRenderTarget = RenderTargetHandle.CameraTarget;
}
}
}
}
HeatItem(add on the particle gameobject)
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
[ExecuteInEditMode]
public class HeatItem : MonoBehaviour
{
public Renderer renderer;
public Material material;
private void Start()
{
material = renderer.sharedMaterial;
}
}

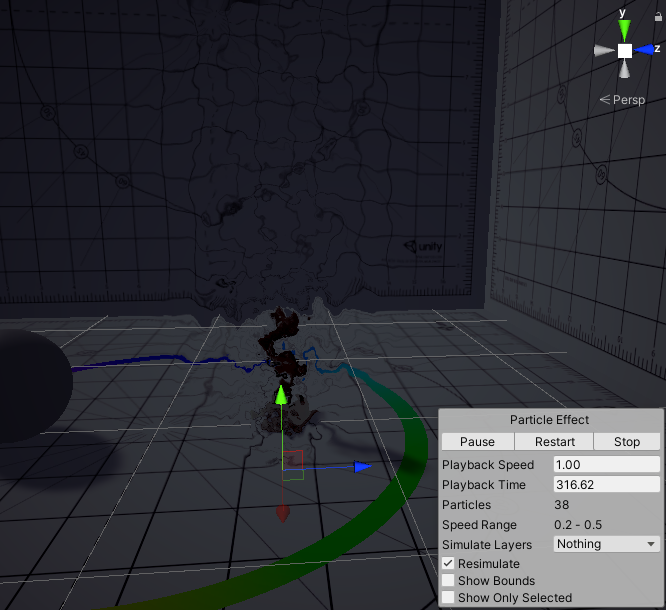

I can see the Distortion in scene
But there is nothing in Game
Any replay will be very helpful!!!
