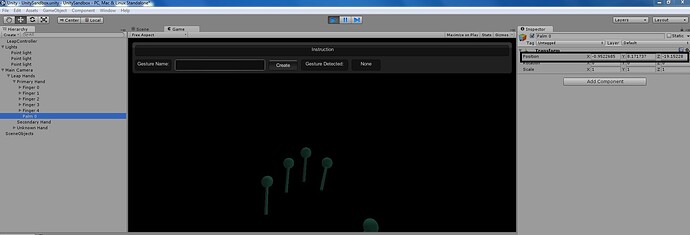

Hello, i want get the palm and finger position vector(X,Y,Z) something, from the value here.
I am editing from the UnitySandbox example from LeapDeveloperKit https://developer.leapmotion.com/
Here is the LeapUnityHandController.cs code
/******************************************************************************\
* Copyright (C) Leap Motion, Inc. 2011-2013. *
* Leap Motion proprietary and confidential. Not for distribution. *
* Use subject to the terms of the Leap Motion SDK Agreement available at *
* https://developer.leapmotion.com/sdk_agreement, or another agreement between *
* Leap Motion and you, your company or other organization. *
\******************************************************************************/
using UnityEngine;
using System;
using System.Collections;
using System.Collections.Generic;
using Leap;
/// <summary>
/// This class manipulates the hand representation in the unity scene based on the
/// input from the leap device. Fingers and Palm objects are moved around between
/// higher level 'hand' objects that mainly serve to organize. Be aware that when
/// fingers are lost, unity does not dispatch OnTriggerExit events.
/// </summary>
public class LeapUnityHandController : MonoBehaviour
{
public GameObject[] m_palms = null;
public GameObject[] m_fingers = null;
public GameObject[] m_hands = null;
public Material[] m_materials = null;
public bool m_DisplayHands = true;
//These arrays allow us to use our game object arrays much like pools.
//When a new hand/finger is found, we mark a game object by active
//by storing it's id, and when it goes out of scope we make the
//corresponding gameobject invisible set the id to -1.
private int[] m_fingerIDs = null;
private int[] m_handIDs = null;
public Vector[] handCenter;
void SetCollidable( GameObject obj, bool collidable )
{
foreach( Collider component in obj.GetComponents<Collider>() )
component.enabled = collidable;
foreach( Collider child in obj.GetComponentsInChildren<Collider>() )
child.enabled = collidable;
}
void SetVisible( GameObject obj, bool visible )
{
foreach( Renderer component in obj.GetComponents<Renderer>() )
component.enabled = visible m_DisplayHands;
foreach( Renderer child in obj.GetComponentsInChildren<Renderer>() )
child.enabled = visible m_DisplayHands;
}
void Start()
{
m_fingerIDs = new int[10];
for( int i = 0; i < m_fingerIDs.Length; i++ )
{
m_fingerIDs[i] = -1;
}
m_handIDs = new int[2];
for( int i = 0; i < m_handIDs.Length; i++ )
{
m_handIDs[i] = -1;
}
LeapInput.HandFound += new LeapInput.HandFoundHandler(OnHandFound);
LeapInput.HandLost += new LeapInput.ObjectLostHandler(OnHandLost);
LeapInput.HandUpdated += new LeapInput.HandUpdatedHandler(OnHandUpdated);
LeapInput.PointableFound += new LeapInput.PointableFoundHandler(OnPointableFound);
LeapInput.PointableLost += new LeapInput.ObjectLostHandler(OnPointableLost);
LeapInput.PointableUpdated += new LeapInput.PointableUpdatedHandler(OnPointableUpdated);
//assign default materials
foreach( Renderer r in m_hands[2].GetComponentsInChildren<Renderer>() )
{
r.material = m_materials[2];
}
//do a pass to hide the objects.
foreach( GameObject palm in m_palms )
{
updatePalm(Leap.Hand.Invalid, palm);
}
foreach( GameObject finger in m_fingers)
{
updatePointable(Leap.Pointable.Invalid, finger);
}
}
//When an object is found, we find our first inactive game object, activate it, and assign it to the found id
//When lost, we deactivate the object set it's id to -1
//When updated, load the new data
void OnPointableUpdated( Pointable p )
{
int index = Array.FindIndex(m_fingerIDs, id => id == p.Id);
if( index != -1 )
{
updatePointable( p, m_fingers[index] );
}
}
void OnPointableFound( Pointable p )
{
int index = Array.FindIndex(m_fingerIDs, id => id == -1);
if( index != -1 )
{
m_fingerIDs[index] = p.Id;
updatePointable( p, m_fingers[index] );
}
}
void OnPointableLost( int lostID )
{
int index = Array.FindIndex(m_fingerIDs, id => id == lostID);
if( index != -1 )
{
updatePointable( Pointable.Invalid, m_fingers[index] );
m_fingerIDs[index] = -1;
}
}
void OnHandFound( Hand h )
{
int index = Array.FindIndex(m_handIDs, id => id == -1);
if( index != -1 )
{
m_handIDs[index] = h.Id;
updatePalm(h, m_palms[index]);
}
}
void OnHandUpdated( Hand h )
{
int index = Array.FindIndex(m_handIDs, id => id == h.Id);
if( index != -1 )
{
updatePalm( h, m_palms[index] );
}
}
void OnHandLost(int lostID)
{
int index = Array.FindIndex(m_handIDs, id => id == lostID);
if( index != -1 )
{
updatePalm(Hand.Invalid, m_palms[index]);
m_handIDs[index] = -1;
}
}
void updatePointable( Leap.Pointable pointable, GameObject fingerObject )
{
updateParent( fingerObject, pointable.Hand.Id );
SetVisible(fingerObject, pointable.IsValid);
SetCollidable(fingerObject, pointable.IsValid);
if ( pointable.IsValid )
{
Vector3 vFingerDir = pointable.Direction.ToUnity();
Vector3 vFingerPos = pointable.TipPosition.ToUnityTranslated();
fingerObject.transform.localPosition = vFingerPos;
fingerObject.transform.localRotation = Quaternion.FromToRotation( Vector3.forward, vFingerDir );
}
}
void updatePalm( Leap.Hand leapHand, GameObject palmObject )
{
updateParent( palmObject, leapHand.Id);
SetVisible(palmObject, leapHand.IsValid);
SetCollidable(palmObject, leapHand.IsValid);
if( leapHand.IsValid )
{
palmObject.transform.localPosition = leapHand.PalmPosition.ToUnityTranslated();
}
}
void updateParent( GameObject child, int handId )
{
//check the hand update the parent
int handIndex = Array.FindIndex(m_handIDs, id => id == handId);
if( handIndex == -1 || handId == -1 )
handIndex = 2;
GameObject parent = m_hands[handIndex];
if( child.transform.parent != parent.transform )
{
child.transform.parent = parent.transform;
foreach( Renderer r in child.GetComponents<Renderer>() )
r.material = m_materials[handIndex];;
foreach( Renderer r in child.GetComponentsInChildren<Renderer>() )
r.material = m_materials[handIndex];;
}
}
}
