How to Place ROS Image Messages in Scene and View in HMD?

Unity Engine
,
1

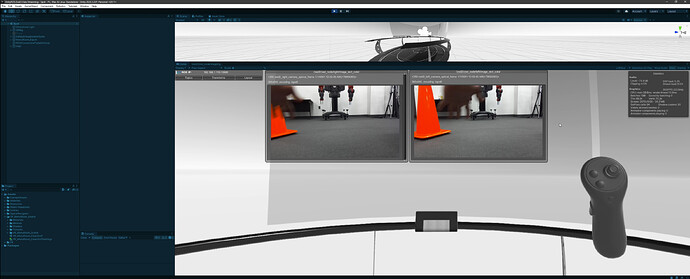

Hey everyone, I had a quick question regarding the rendering of camera image messages from ROS in Unity. As of right now, I can get the images to render in the Unity editor as a widget, and the camera stream is working fine. However, I am not sure how to view the images in a VR HMD (Oculus 2). Within the headset the Image renderings in the game view (see attached image) are not visible to the HMD.

Additionally, how do I place these stereo image textures in the virtual environment (like a projected video on a wall within the game)?

Any help would be appreciated, thank you!

8222637--1073928--Unity Robotics - Image Msg for HMD.jpg
8222637--1073928--Unity Robotics - Image Msg for HMD.jpg3054×1237 360 KB

1 Like
2

This worked for me :slight_smile:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using Unity.Robotics.ROSTCPConnector;
// using RosMessageTypes.UnityRoboticsDemo;
using RosMessageTypes.Sensor;
using RosMessageTypes.Std;
using RosMessageTypes.BuiltinInterfaces;
using System;
public class CamScript : MonoBehaviour
{

    int currentCamIdx = 0;
    // WebCamTexture tex;
    Texture2D texRos;
    public RawImage display;
    ROSConnection m_Ros;
    CompressedImageMsg img_msg;
    string webcamiagetopic = "/webcam/image_raw";

    void Start() {
        // start the ROS connection
        m_Ros = ROSConnection.GetOrCreateInstance();
        // register topic name
        // m_Ros.RegisterPublisher<RosMessageTypes.Sensor.ImageMsg>(topicName);
        Debug.Log(m_Ros.RosIPAddress);
        m_Ros.Subscribe<ImageMsg>(webcamiagetopic, StartStopCam_Clicked);

    }

    public void SwapCam_Clicked() {
        if (WebCamTexture.devices.Length > 0) {
            currentCamIdx += 1;
            currentCamIdx %= WebCamTexture.devices.Length;
        }
    }

    public void StartStopCam_Clicked(ImageMsg img) {
        // stopping the prev output and clearing the texture
        // if (texRos != null) {
        //     display.texture = null;
        //     // texRos.Stop();
        //     texRos = null;
        // } else {
        // RenderTexture rendtextRos = new RenderTexture(640, 480, 0, UnityEngine.Experimental.Rendering.GraphicsFormat.R8G8B8A8_UNorm);
        // rendtextRos.Create();
        // rendtextRos.
        texRos = new Texture2D((int) img.width, (int) img.height, TextureFormat.RGB24, false); // , TextureFormat.RGB24
        BgrToRgb(img.data);
        texRos.LoadRawTextureData(img.data);

        texRos.Apply();
        display.texture = texRos;
    }

    public void BgrToRgb(byte[] data) {
        for (int i = 0; i < data.Length; i += 3)
        {
            byte dummy = data[i];
            data[i] = data[i + 2];
            data[i + 2] = dummy;
        }
    }
}
3

Hello, could you resolve the issue?

And if possible could you please share the project, repository or any information that could help in how did you connect the Oculus 2 with ROS and streamed stereo image to the HMD.

Thank you so much.
