Inspector Overlapping Text Label at a Position

Questions & Answers
1

I’m trying to spruce up my Inspector but I’m having a lot of trouble trying to draw text at a specified position in the inspector. I have drawn a colored rectangle on the inspector and want to draw text (like a label) on top of it.

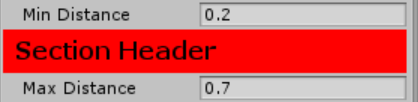

How can I draw text/label at the “X” position shown above? Do I need to save my text into a texture and draw it that way?

2

The solution for my issue was EditorGUI.LabelField. Following is the implementation:


public override void OnGUI(Rect position)
{
    GUIStyle myStyle = new GUIStyle();

    myStyle.fontSize = 16;
    myStyle.alignment = TextAnchor.UpperLeft;
    myStyle.padding.top = 5;
    myStyle.padding.left = -3;
    myStyle.fontStyle = FontStyle.Bold;

    Color32 color = colorSpacer.drawColor; // Custom Property Attribute
    EditorGUI.DrawRect(new Rect(position.x-11, position.y, position.width+11, position.height-2), color);
    Rect r = GUILayoutUtility.GetLastRect();
    EditorGUI.LabelField(r, "Section Header", myStyle);
}
