Issue with ParticleSystem and transparency

Unity Engine
, ,
1

Hello,

I have an issue with the transparency of particles. In the Editor, everything works as I want, meaning my particles are transparent around the edges, and it also works in Play to Device. However, in the build, I have a strange behavior where my transparency is replaced by white.

I should mention that I am currently using BakeToMesh but I also tried ReplicateProperties, ensuring that only compatible parameters are set in my ParticleSystem.

I have attached several screenshots. If anyone can help me, I would be very grateful.

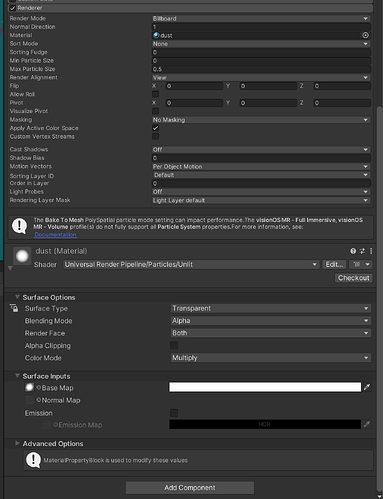

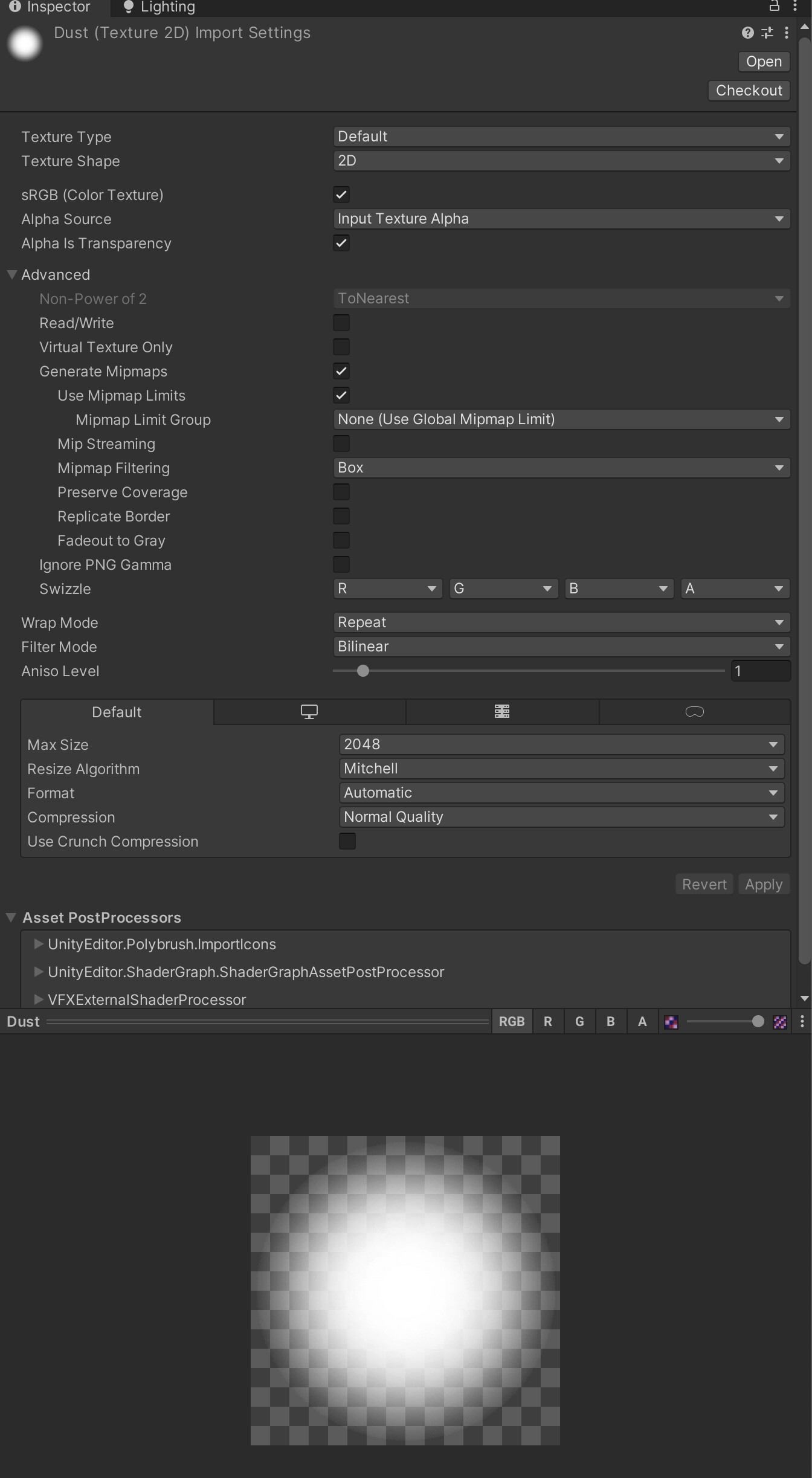

Capture d’écran 2024-06-06 à 10.05.39
Capture d’écran 2024-06-06 à 10.05.391344×2446 217 KB

Capture d’écran 2024-06-06 à 10.02.27
Capture d’écran 2024-06-06 à 10.02.271362×1774 257 KB

Capture d’écran 2024-06-06 à 10.01.50
Capture d’écran 2024-06-06 à 10.01.502268×1476 178 KB

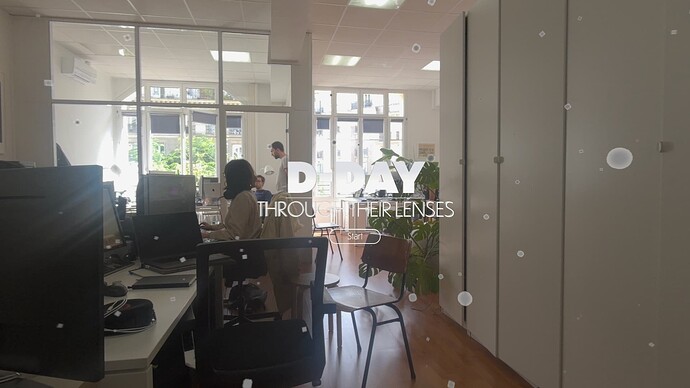

IMG_0257.PNG1920×1080 95.8 KB

2

Nothing jumps out at me as being wrong with your texture or material configuration. It looks like you’re getting alpha clipping behavior: in visionOS, when alpha clipping is enabled, any pixels above the alpha clip threshold are rendered as opaque. If it’s possible for you to submit a repro project as a bug report and let us know the incident number (IN-#####), we can look into it.

3

Indeed, it looks like alpha clipping …
I’ll make a blank project with this issue and submit it later on :slight_smile:
Thanks for your answer

1 Like
