Hi everyone,
I faced an issue regarding the offset in input controls while I am trying to create a custom layout for my device (its a Logitech controller).
The reason I am creating a custom layout is because I want unity to register my Logitech controller as a gamepad and not a joystick. I was partially successful but I am facing issues with some specific buttons on my controller. I was able to solve these issues once I used the correct offset while creating the controls for my layout.
The thing is, I am seeing 3 different values for the offset, and I am not sure which one should I use, and when, and how they relate to one another.

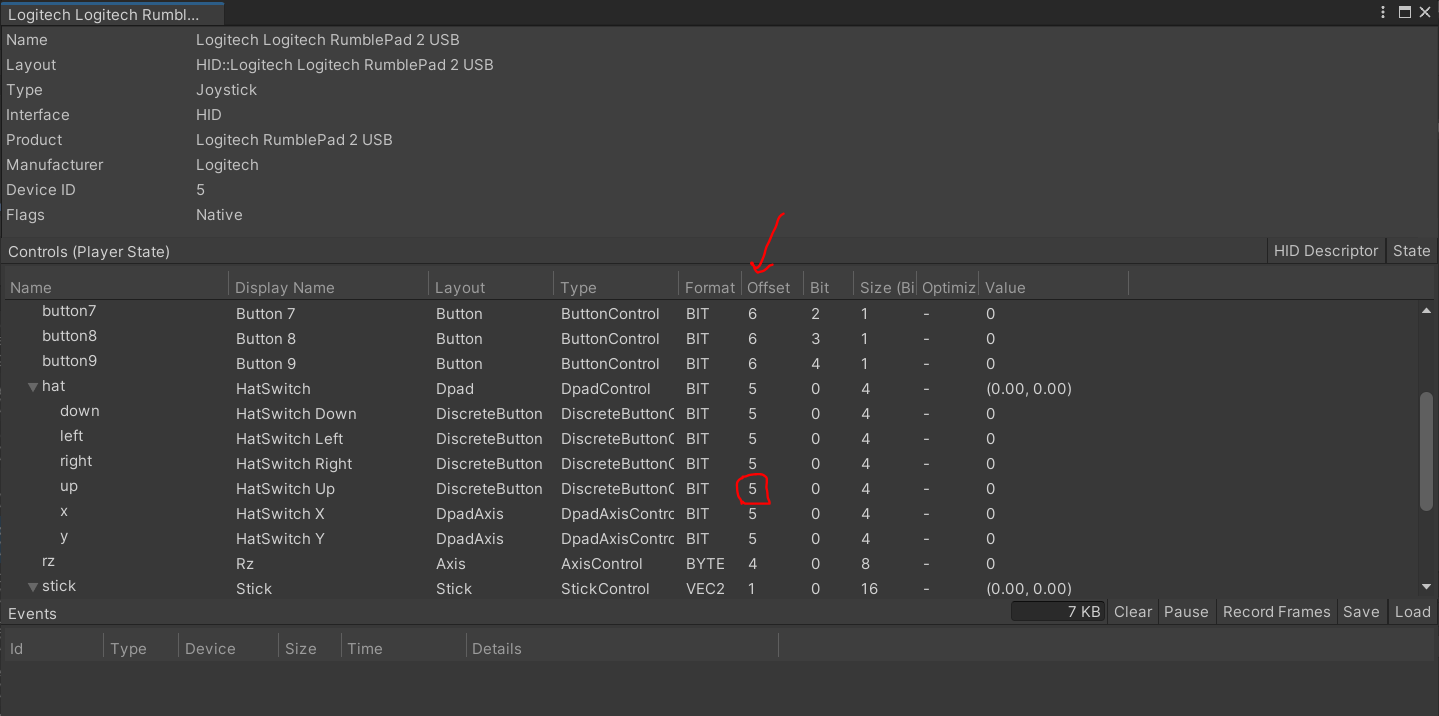

- Input Debugger shows a 5 in the offset.
- InputStateBlock from my Input control returns numbers in the range of 120s, so it will be 125 in the offset.
- Layout Json (copying the json of the layout), it will some times show 5 or 4294967295.
Questions:
- Which one of these values I should use while trying to build a layout for my controller. I tried using the layout offset, but it didn’t work. The json was correct but the unity input debugger showed 0 in the offset.
curBuilder.AddControl(curButtonName)
.WithByteOffset(deviceButtonInfo.offset)
.WithBitOffset(deviceButtonInfo.bit)
.WithSizeInBits(deviceButtonInfo.sizeInBits)
.WithFormat(deviceButtonInfo.format);
- I also noticed that all these offsets have the same number in the end, so 125, 5, 4294967295. Is it correct to assume that I can just take the % 10 of any of these offsets and I will get the correct offset? this seemed to work but I haven’t tested it for all buttons on my controller.
I am kinda of confused, and any help would be greatly appreciated. As far as I understand, offset tells input system where to start looking in the state buffer. So any clarification will be helpful.

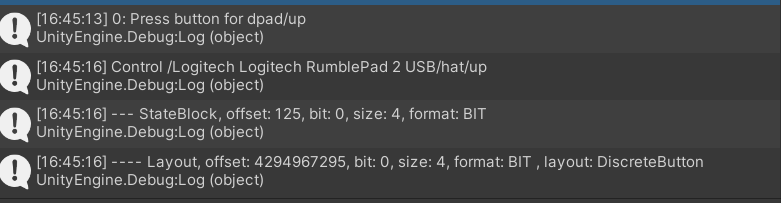

Snippet of the code:
//--- in awake
InputSystem.onAnyButtonPress.Call(OnDeviceButtonSetup);
//---
private void OnDeviceButtonSetup(InputControl inputControl) {
string curControlPath = inputControl.path.Replace($"/{curDeviceSetup.name}/", "");
Debug.Log($"Control {inputControl.path}");
InputStateBlock tempDeviceInfo = inputControl.stateBlock;
Debug.Log($"--- StateBlock, offset: {tempDeviceInfo.byteOffset}, bit: {tempDeviceInfo.bitOffset}, size: {tempDeviceInfo.sizeInBits}, format: {tempDeviceInfo.format} ");
InputControlLayout.ControlItem deviceButtonInfo = oldLayout.controls.FirstOrDefault(c => c.name == curControlPath);
if (deviceButtonInfo.name != curControlPath) {
Debug.LogWarning($"Couldn't find the input control name {deviceButtonInfo.name}");
return;
}
Debug.Log($"---- Layout, offset: {deviceButtonInfo.offset}, bit: {deviceButtonInfo.bit}, size: {deviceButtonInfo.sizeInBits}, format: {deviceButtonInfo.format}, layout: {deviceButtonInfo.layout}");
}
