Mecanim - 3ds Max Studio

[DukeGrimm]

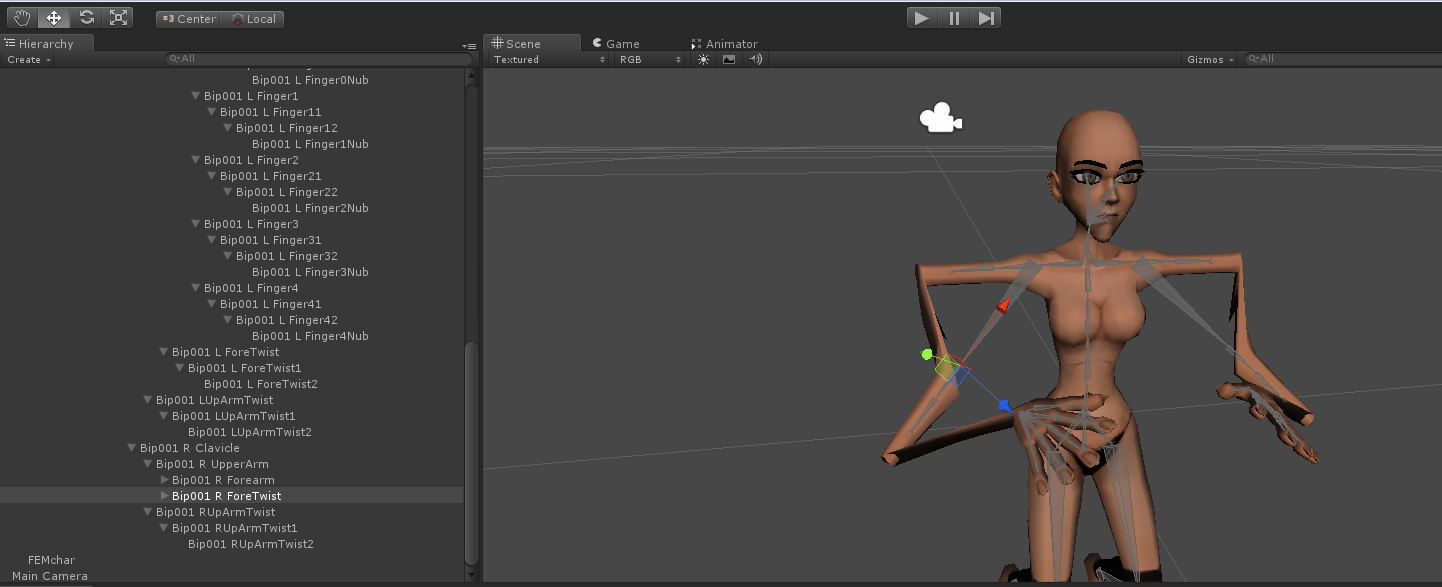

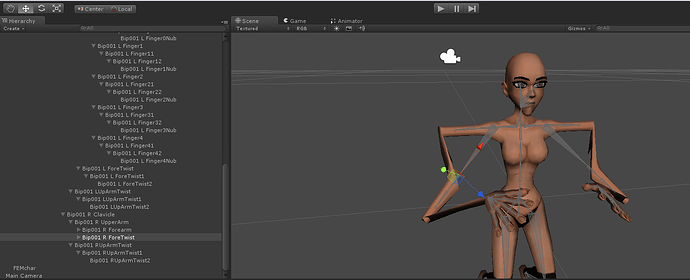

Are there known issues with 3ds Max’s Biped rigging feature with mechanim? I’ve imported our model and assigned the appropriate bones ot their locations on the rigging in mecanim, but when I switch to muscle the character doesn’t behave correctly.

Any ideas with the issue.

[anon49125583]

Yes, we do not support all the roll bone configuration from biped. If possible re-parent your roll bone, like Bip001 R ForeTwist should be under Bip001 R ForeArm.
