Need help, part of unity inspector missing.

[firepizzaninja]

I am making a multiplayer game in unity using fusion.
My issue is the following.
This is what I am getting:

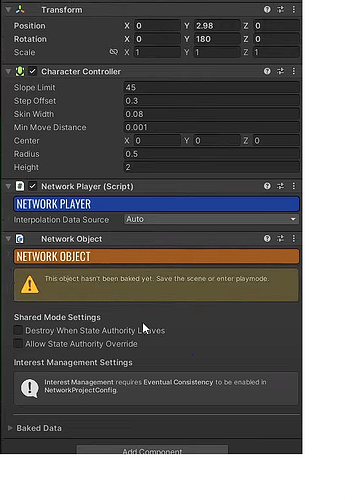

But this is what I should be getting:

I am also receiving the following error:

"
ArgumentOutOfRangeException: No method found matching name “GetDrawerTypeForType”, signature “Fusion.Editor.UnityInternal+ScriptAttributeUtility+GetDrawerTypeForTypeDelegate”, flags “Static, NonPublic” and params: System.Type, candidates are
: Void ResetCachedTypesAndAsset()
UnityEditor.PropertyHandlerCache get_propertyHandlerCache()
Void set_propertyHandlerCache(UnityEditor.PropertyHandlerCache)
Void ClearGlobalCache()
Void PopulateBuiltinAttributes()
Void AddBuiltinAttribute(System.String, System.String, UnityEngine.PropertyAttribute)
System.Collections.Generic.List1[UnityEngine.PropertyAttribute] GetBuiltinAttributes(UnityEditor.SerializedProperty) System.Collections.Generic.Dictionary2[System.Type,UnityEditor.ScriptAttributeUtility+CustomPropertyDrawerContainer[ ]] BuildDrawerTypeForTypeDictionary()
System.Type GetDrawerTypeForType(System.Type, Boolean)
Int32 CalculateInheritanceLevel(System.Type, Int32, System.Collections.Generic.Dictionary2[System.Type,System.Int32]) Boolean TryGetDrawerTypeForTypeFromCache(Boolean, Boolean, System.Type, System.Type ByRef) Boolean TryExtractDrawerTypeForTypeFromCache(Boolean, Boolean, System.Type, System.Type ByRef) Boolean TryFindDrawers(CustomPropertyDrawerContainer[ ], CustomPropertyDrawerContainer ByRef) System.Type GetDrawerTypeForPropertyAndType(UnityEditor.SerializedProperty, System.Type) System.Collections.Generic.List1[UnityEngine.PropertyAttribute] GetFieldAttributes(System.Reflection.FieldInfo)
System.Reflection.FieldInfo GetFieldInfoAndStaticTypeFromProperty(UnityEditor.SerializedProperty, System.Type ByRef)
System.Reflection.FieldInfo GetFieldInfoFromProperty(UnityEditor.SerializedProperty, System.Type ByRef)
Boolean GetTypeFromManagedReferenceFullTypeName(System.String, System.Type ByRef)
System.Type GetScriptTypeFromProperty(UnityEditor.SerializedProperty)
System.Reflection.FieldInfo GetFieldInfoFromPropertyPath(System.Type, System.String, System.Type ByRef)
UnityEditor.PropertyHandler GetHandler(UnityEditor.SerializedProperty)
Boolean CanUseSameHandler(UnityEditor.SerializedProperty, UnityEditor.SerializedProperty)
System.Collections.Generic.List`1[System.Reflection.FieldInfo] GetAutoLoadProperties(System.Type)
Int32 g__AddOrReplaceInterfaceLevel|20_0(Int32, <>c__DisplayClass20_0 ByRef)
Boolean g__IsAppropriateDrawerFound|22_0(<>c__DisplayClass22_0 ByRef)
Parameter name: name
Fusion.Editor.ReflectionUtils.GetMethodOrThrow (System.Type type, System.String name, System.Reflection.BindingFlags flags, System.Type delegateType, Fusion.Editor.ReflectionUtils+DelegateSwizzle[ ] swizzles, Fusion.Editor.ReflectionUtils+DelegateSwizzle& firstMatchingSwizzle) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10841)
Fusion.Editor.ReflectionUtils.GetMethodOrThrow (System.Type type, System.String name, System.Reflection.BindingFlags flags, System.Type delegateType) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10768)
Fusion.Editor.ReflectionUtils.CreateMethodDelegateInternal (System.Type type, System.String name, System.Reflection.BindingFlags flags, System.Type delegateType) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10763)
Fusion.Editor.ReflectionUtils.CreateMethodDelegateInternal[T] (System.Type type, System.String name, System.Reflection.BindingFlags flags) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10759)
Fusion.Editor.ReflectionUtils.CreateMethodDelegate[T] (System.Reflection.Assembly assembly, System.String typeName, System.String methodName, System.Reflection.BindingFlags flags) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10511)
Rethrow as InvalidOperationException: UnityEditor.CoreModule, Version=0.0.0.0, Culture=neutral, PublicKeyToken=null.UnityEditor.ScriptAttributeUtility.GetDrawerTypeForType with flags: Static, NonPublic and type: Fusion.Editor.UnityInternal+ScriptAttributeUtility+GetDrawerTypeForTypeDelegate
Fusion.Editor.ReflectionUtils.CreateMethodDelegate[T] (System.Reflection.Assembly assembly, System.String typeName, System.String methodName, System.Reflection.BindingFlags flags) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10513)
Fusion.Editor.ReflectionUtils.CreateEditorMethodDelegate[T] (System.String editorAssemblyTypeName, System.String methodName, System.Reflection.BindingFlags flags) (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:10483)
Fusion.Editor.UnityInternal+ScriptAttributeUtility…cctor () (at Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs:11651)
Rethrow as TypeInitializationException: The type initializer for ‘ScriptAttributeUtility’ threw an exception.
UnityEditor.UIElements.InspectorElement+<>c__DisplayClass72_0.b__0 () (at <1899c5bd2a6d466081cd705bee01d689>:0)
UnityEngine.GUIUtility:ProcessEvent(Int32, IntPtr, Boolean&)"

[_Simian]

I’m hitting the same issue. If you’re following the Fusion 100 guide Fusion 2 1 - Getting Started | Photon Engine it mentions installing com.unity.mono.cecil, have you done that? And if so, does it fix the issue?

[firepizzaninja]

@_Simian

I’m hitting the same issue. If you’re following the Fusion 100 guide https://doc.photonengine.com/fusion/current/tutorials/host-mode-basics/1-getting-started it mentions installing com.unity.mono.cecil, have you done that? And if so, does it fix the issue?

yea i did that, it didnt work

[gsylvain]

The issue occur on unity 2022.3.23. It is NOT occuring on 2022.3.21.
Similar issue: Cannot open PhotonAppSettings on 2022.3.23f1 · Issue #21 · oculus-samples/Unity-Discover · GitHub

Photon discord: Discord

tl;dr: photon has a fix in progress

[davidborbis]

Have they released an update yet or posted a temporary workaround? I don’t have access to that channel

[gsylvain]

@davidborbis

Have they released an update yet or posted a temporary workaround? I don’t have access to that channel

The recommendation is to downgrade to Unity 2022.3.21 until they release a fix. No ETA at the moment.

[gsylvain]

@michielproce @davidborbis The fix is available - check the new quantum version 2.1.8.1

[Product]

The fix is only available for Quantum but not for Fusion…

[harshvardhanv98]

This issue sucks. Please fix

[Saeed-Barari]

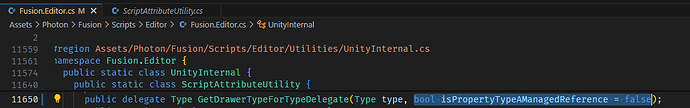

found a solution:
Add bool isPropertyTypeAManagedReference = false to the script at “Assets/Photon/Fusion/Scripts/Editor/Fusion.Editor.cs”

although a more delecate solution would be

#if UNITY_2022_3_25
      public delegate Type GetDrawerTypeForTypeDelegate(Type type, bool isPropertyTypeAManagedReference = false);
#else
      public delegate Type GetDrawerTypeForTypeDelegate(Type type);
#endif

(replace the unity version with your current one)

[GamerRealities]

Yes!! The above post worked, but it was different for me using Fusion 2.0.0 and Unity 2023.2.19f. I noticed the error was about a legacy version of GetDrawerTypeForTypeDelegate, so I went to line 6586 of Fusion.Unity.Editor.cs (Found in the Engine folder not the Script folder for me) and changed the line from this:
private delegate Type LegacyGetDrawerTypeForTypeDelegate(Type type);

to this:

private delegate Type LegacyGetDrawerTypeForTypeDelegate(Type type, bool isPropertyTypeAManagedReference = false);

Now my networked components work and I can use the project with multiplayer again!

[sharatachary]

Thanks @Pk125 your solution worked for me.

[BharatMakwana13]

Thanks @Pk125 it’s work for me.

[theFinder]

Thanks @Pk125 it’s work for me too.

[milan_unity711]

It’s fixed in the latest Quantum version 2.1.8.1

[DirtyFred]

yeah that worked for me too!

Thank you.

How did you find this though? the file has 10K plus lines of code…

[yotingo]

Thanks for this!

@GamerRealities Had the fix I needed for Fusion 2.0
