OnGUI with option from other function

mrgohut · February 8, 2014, 4:21pm

#pragma strict

var displaymessage = false;

function GiveWood (WoodGet : int)
{
	displaymessage = true;
}

function OnGUI ()
{
	if(displaymessage)
	{
		GUI.Label(Rect(25, 25, 100, 30), "Wood x" + WoodGet);
	}
}

I want do this, but i have error about this

GUI.Label(Rect(25, 25, 100, 30), "Wood x" + WoodGet);

How do it properly ?

Ian094 · February 8, 2014, 4:47pm

WoodGet has to be a GUIContent.

mrgohut · February 8, 2014, 5:23pm

GUI.Label(Rect(25, 25, 100, 30), GUIContent("Wood x" + WoodGet)); ?

btw WoodGet var is in other script ;/ i cant move it

Ian094 · February 8, 2014, 5:38pm

Then you should use GetComponent to reference “WoodGet” from the other script. Here’s a simple way of doing it :

var yourGameObject  : Transform; // The GameObject that has the Script.

function OnGUI(){
var woodGet = yourGameObject.GetComponent("NameOfTheScript").WoodGet;

mrgohut · February 8, 2014, 5:50pm

#pragma strict

var displaymessage = false;
var getscript : Transform;

function GiveWood (WoodGet : int)
{
	displaymessage = true;
}

function OnGUI ()
{
	if(displaymessage)
	{
		var woodGet = getscript.GetComponent("WeaponSystem").WoodGet;
		GUI.Label(Rect(25, 25, 100, 30), GUIContent("Wood x" + woodGet));
	}
}

I have in my WeaponSystem.js this

if(Input.GetButtonDown("Fire1"))
	{
		var hit : RaycastHit;
		if(Physics.Raycast (transform.position, transform.TransformDirection(Vector3.forward), hit))
		{
			Distance = hit.distance;
			if(Distance < MaxDist)
			{
				var WoodGet = Random.Range(minWood, maxWood);
				hit.transform.SendMessage("GiveWood", WoodGet, SendMessageOptions.DontRequireReceiver);
				hit.transform.SendMessage("ApplyDamage", Damage, SendMessageOptions.DontRequireReceiver);
			}
		}
	}

and after i put getscript : Transform; i cant choose my object in Inspector tab i dont know why ;<

and Cube have this script (GiveWood.js form 1st post)

Ian094 · February 8, 2014, 6:37pm

My bad I meant without the quotes :

 var woodGet = getscript.GetComponent(WeaponSystem).WoodGet;

mrgohut · February 8, 2014, 6:41pm

Okay
But now i have this error:

#pragma strict

var displaymessage = false;
var getscript : Transform;

function GiveWood (WoodGet : int)
{
    displaymessage = true;
}

function OnGUI ()
{
    if(displaymessage)
    {
        var woodGet = getscript.GetComponent(WeaponSystem).WoodGet;
    	GUI.Label(Rect(25, 25, 100, 30), GUIContent("Wood x" + woodGet));
    }
}

And i must change in WeaponSystem.js this:

function Update ()
{
if(Input.GetButtonDown("Fire1"))

    {

        var hit : RaycastHit;

        if(Physics.Raycast (transform.position, transform.TransformDirection(Vector3.forward), hit))

        {

            Distance = hit.distance;

            if(Distance < MaxDist)

            {

                var WoodGet = Random.Range(minWood, maxWood);

                hit.transform.SendMessage("GiveWood", WoodGet, SendMessageOptions.DontRequireReceiver);

                hit.transform.SendMessage("ApplyDamage", Damage, SendMessageOptions.DontRequireReceiver);

            }

        }

    }
}

to this

 var WoodGet;
function Update ()
{
if(Input.GetButtonDown("Fire1"))

    {

        var hit : RaycastHit;

        if(Physics.Raycast (transform.position, transform.TransformDirection(Vector3.forward), hit))

        {

            Distance = hit.distance;

            if(Distance < MaxDist)

            {

                WoodGet = Random.Range(minWood, maxWood);

                hit.transform.SendMessage("GiveWood", WoodGet, SendMessageOptions.DontRequireReceiver);

                hit.transform.SendMessage("ApplyDamage", Damage, SendMessageOptions.DontRequireReceiver);

            }

        }

    }
}

and i dont know it is good or not ;p

Ian094 · February 8, 2014, 6:53pm

Have you assigned getScript in the inspector?

mrgohut · February 8, 2014, 6:58pm

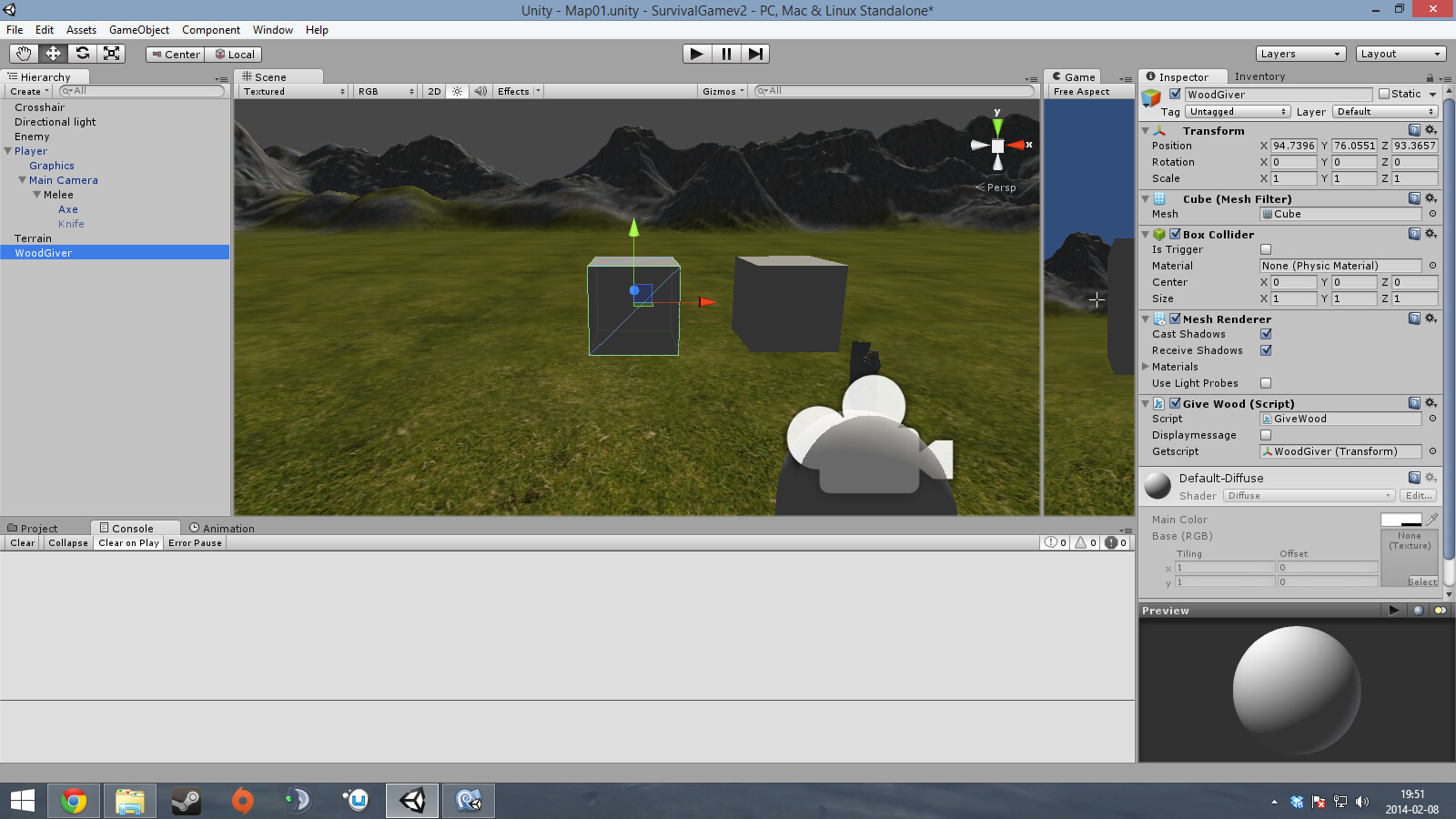

Yes this GiveWood.js is in Cube and i assigned this Cube to the getscript in inspector tab, look:
http://imageshack.com/a/img35/5207/of20.png
If u dont know what’s wrong i can give u full WeaponSwitch and Givewood scripts, maybe this help.

Ian094 · February 8, 2014, 7:15pm

Yeah post the scripts.

mrgohut · February 8, 2014, 7:22pm

WeaponSystem.js

#pragma strict

//var msg = false;
var Distance : float;
var MaxDist : float = 1.5;
var minWood : int = 1;
var maxWood : int = 2;
var Damage : int = 10;
var Axe : Transform;
var Knife : Transform;

var WeaponAxe : GameObject;
var WeaponKnife : GameObject;

var WoodGet;

function Update ()
{
	if(Input.GetKeyDown(KeyCode.E))
	{
		SwapWeapons();
	}
	if(Input.GetButtonDown("Fire1"))
	{
		//Attack animation
		if(WeaponAxe.active == true)
		{
			Axe.animation.Play("HitAxe");
		}
		if(WeaponKnife.active == true)
		{
			Knife.animation.Play("HitKnife");
		}
		//End
		//Attack function / Collecting function
		var hit : RaycastHit;
		if(Physics.Raycast (transform.position, transform.TransformDirection(Vector3.forward), hit))
		{
			Distance = hit.distance;
			if(Distance < MaxDist)
			{
				//msg = true;
				WoodGet = Random.Range(minWood, maxWood);
				hit.transform.SendMessage("GiveWood", WoodGet, SendMessageOptions.DontRequireReceiver);
				hit.transform.SendMessage("ApplyDamage", Damage, SendMessageOptions.DontRequireReceiver);
			}
		}
		//End
	}
	if(Axe.animation.isPlaying == false)
	{
		Axe.animation.CrossFade("IdleAxe");
	}
	if(Knife.animation.isPlaying == false)
	{
		Knife.animation.CrossFade("IdleKnife");
	}
}

function SwapWeapons ()
{
	if(WeaponAxe.active == true)
	{
		WeaponAxe.SetActive(false);
		WeaponKnife.SetActive(true);
	}
	else
	{
		WeaponAxe.SetActive(true);
		WeaponKnife.SetActive(false);
	}
}

/*function OnGUI () {

	if(msg == true) {

	}

}*/

GiveWood.js

#pragma strict

var displaymessage = false;
var getscript : Transform;

function GiveWood (WoodGet : int)
{
    displaymessage = true;
}

function OnGUI ()
{
    if(displaymessage)
    {
        var woodGet = getscript.GetComponent(WeaponSystem).WoodGet;
    	GUI.Label(Rect(25, 25, 100, 30), GUIContent("Wood x" + woodGet));
    }
}

Ian094 · February 8, 2014, 7:36pm

Hey, I just tried it out and i get no errors.

I took a closer look at your pic and noticed that you’re assigning a gameObject with the GiveWood.js attached to it

You need to assign a gameObject with the WeaponSystem.js attached to it.

mrgohut · February 8, 2014, 7:48pm

I don’t get it
gameObject, u mean WoodGiver (Cube) ?
I need this GiveWood.js to be attached with WoodGiver, because it check my hit (if i hit it then display message).
Or maybe i must put this var getscript : Transform;
to WeaponSystem and attach WoodGiver to it ?

Sorry, but i don’t get it, im new ;D

My WeaponSystem need to be attached with “Meele” (u can see it on my screenshot)

Ian094 · February 8, 2014, 8:05pm

Basically, the variable getScript needs to reference the WeaponSystem script. So you’ll have to assign it with a gameObject( any object in your scene ) that has the WeaponSystem.js attached to it.

If “Meele” has the WeaponSystem.js attached to it, then assign “Meele” as the getScript variable in the inspector.

mrgohut · February 8, 2014, 8:13pm

U are my master ! My GOD . Thank you so much :****

I have another problem but not with this it just show in console and i dont know what is this

NullReferenceException: Object reference not set to an instance of an object
UnityEditor.Graphs.AnimationStateMachine.TransitionInspector.OnEnable () (at C:/BuildAgent/work/d3d49558e4d408f4/Editor/Graphs/UnityEditor.Graphs/AnimationStateMachine/TransitionInspector.cs:71)

And if i want place there some graphic not text what i must do ?

Ian094 · February 8, 2014, 8:40pm

haha…

The 1st error is letting you know that an object you’ve assigned isn’t being referenced correctly.
I’m not quite sure what that 2nd error is - Try re-staring Unity and maybe it’ll go away.

If you want Graphics then you can use GUI.DrawTexture to display an image on the screen…

var graphic : Texture;

function OnGUI(){

GUI.DrawTexture(Rect(Screen.width / 2 - 50, Screen.height / 2 - 50 , 100 , 100),graphic);

}

mrgohut · February 8, 2014, 8:46pm

XDD oh i saw it but i didnt know what is this ;D

Okay, thanks And can i do some delay between this GUI drawtexture or label ? Now it’s like x999 on sec (thies message)xD

U know, english isnt my language and sometimes its hard (for me) to understand some texts ;p

Ian094 · February 8, 2014, 8:55pm

Ok.

Well, I’m not so sure how to do the delays but it’s definitely possible

mrgohut · February 8, 2014, 8:59pm

Okay, so thanks for help
