Orbital motion

how to repeat this effect in wfh graph?

If you want to spawn trails from orbiting particles then Rotate 3D .

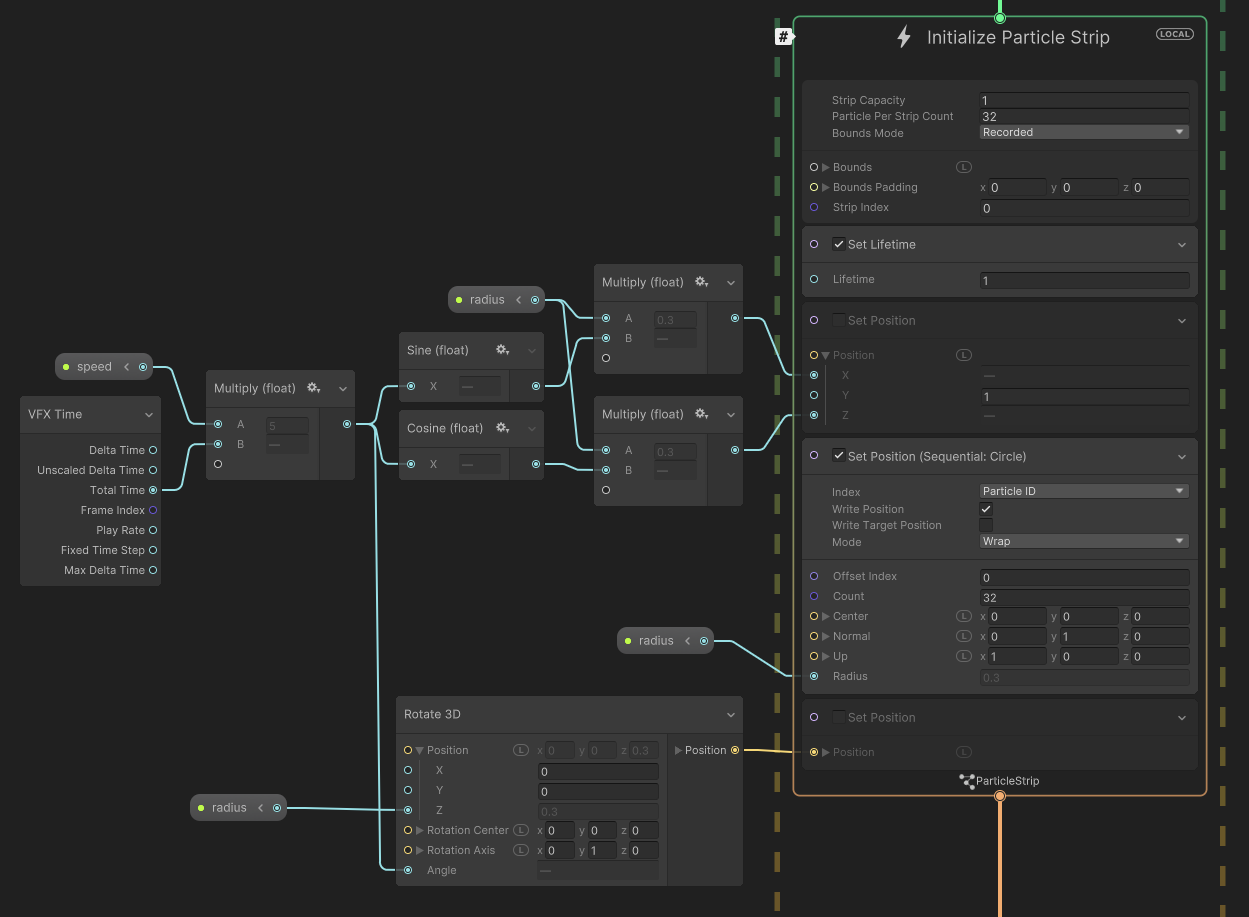

In case you wanted to spawn trails only, you can also use sequential circle or custom sin/cos. Below you can find 3 ways to spawn “orbiting” particles:

However there is one note, I think this can spawn more than one particle per update, so you would need to implement some custom interpolation - for this reason the most easy way is sequential circle as you get this for free.

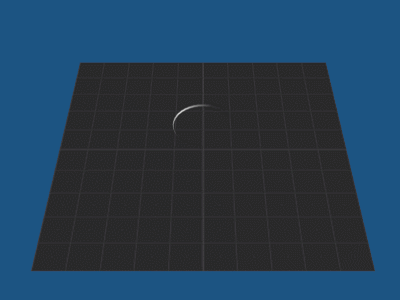

8988298--1237339--GIF 03.05.2023 03-53-25.gif

3 Likes
