Hi guys, I’d like to share with you a little script I made that adds an attribute called EnumMask that you can add to an enum field. Then that enum field will be displayed differently in the editor (see the screenshot) that makes it way easier to edit than a regular mask field.

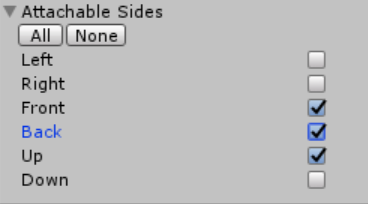

Screenshot
Example:
[System.Flags]
public enum BlockSides
{
Left = (1 << 0),
Right = (1 << 1),
Front = (1 << 2),
Back = (1 << 3),
Up = (1 << 4),
Down = (1 << 5)
}
[EnumMask] BlockSides attachableSides;
All you’ve got to do is copy the source code from here and add it to a C# source file (outside of the Editor folder). Or, if you prefer, download the .cs file I attached to this post and add it to your project.
EDIT: As pointed out by Madgvox here this property drawer did not support “holes” in the flags values (check out the link so you understand what I mean) and I also found out it didn’t support types such as long, ulong, short, ushort, byte and sbyte. All of these issues have been fixed and both the source code and the file for download have been updated.
EDIT: As @Keepabee pointed out here this property drawer did not support “None” and “All” elements (elements with values 0 and ~0, respectively). This issue has been fixed and the source code and file for download have been updated.
Source code
/*
Written by: Lucas Antunes (aka ItsaMeTuni), lucasba8@gmail.com
In: 2/15/2018
The only thing that you cannot do with this script is sell it by itself without substantially modifying it.
*/
using System;
using UnityEngine;
#if UNITY_EDITOR
using UnityEditor;
[CustomPropertyDrawer(typeof(EnumMaskAttribute))]
public class EnumMaskPropertyDrawer : PropertyDrawer
{
bool foldoutOpen = false;
object theEnum;
Array enumValues;
Type enumUnderlyingType;
public override float GetPropertyHeight(SerializedProperty property, GUIContent label)
{
if (foldoutOpen)
return EditorGUIUtility.singleLineHeight * (Enum.GetValues(fieldInfo.FieldType).Length + 2);
else
return EditorGUIUtility.singleLineHeight;
}
public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
{
theEnum = fieldInfo.GetValue(property.serializedObject.targetObject);
enumValues = Enum.GetValues(theEnum.GetType());
enumUnderlyingType = Enum.GetUnderlyingType(theEnum.GetType());
//We need to convert the enum to its underlying type, if we don't it will be boxed
//into an object later and then we would need to unbox it like (UnderlyingType)(EnumType)theEnum.
//If we do this here we can just do (UnderlyingType)theEnum later (plus we can visualize the value of theEnum in VS when debugging)
theEnum = Convert.ChangeType(theEnum, enumUnderlyingType);
EditorGUI.BeginProperty(position, label, property);
foldoutOpen = EditorGUI.Foldout(new Rect(position.x, position.y, position.width, EditorGUIUtility.singleLineHeight), foldoutOpen, label);
if (foldoutOpen)
{
//Draw the All button
if (GUI.Button(new Rect(position.x, position.y + EditorGUIUtility.singleLineHeight * 1, 30, 15), "All"))
{
theEnum = DoNotOperator(Convert.ChangeType(0, enumUnderlyingType), enumUnderlyingType);
}
//Draw the None button
if (GUI.Button(new Rect(position.x + 32, position.y + EditorGUIUtility.singleLineHeight * 1, 40, 15), "None"))
{
theEnum = Convert.ChangeType(0, enumUnderlyingType);
}
//Draw the list
for (int i = 0; i < Enum.GetNames(fieldInfo.FieldType).Length; i++)
{
if (EditorGUI.Toggle(new Rect(position.x, position.y + EditorGUIUtility.singleLineHeight * (2 + i), position.width, EditorGUIUtility.singleLineHeight), Enum.GetNames(fieldInfo.FieldType)[i], IsSet(i)))
{
ToggleIndex(i, true);
}
else
{
ToggleIndex(i, false);
}
}
}
fieldInfo.SetValue(property.serializedObject.targetObject, theEnum);
property.serializedObject.ApplyModifiedProperties();
}
/// <summary>
/// Get the value of an enum element at the specified index (i.e. at the index of the name of the element in the names array)
/// </summary>
object GetEnumValue(int _index)
{
return Convert.ChangeType(enumValues.GetValue(_index), enumUnderlyingType);
}
/// <summary>
/// Sets or unsets a bit in theEnum based on the index of the enum element (i.e. the index of the element in the names array)
/// </summary>
/// <param name="_set">If true the flag will be set, if false the flag will be unset.</param>
void ToggleIndex(int _index, bool _set)
{
if(_set)
{
if(IsNoneElement(_index))
{
theEnum = Convert.ChangeType(0, enumUnderlyingType);
}
//enum = enum | val
theEnum = DoOrOperator(theEnum, GetEnumValue(_index), enumUnderlyingType);
}
else
{
if (IsNoneElement(_index) || IsAllElement(_index))
{
return;
}
object val = GetEnumValue(_index);
object notVal = DoNotOperator(val, enumUnderlyingType);
//enum = enum & ~val
theEnum = DoAndOperator(theEnum, notVal, enumUnderlyingType);
}
}
/// <summary>
/// Checks if a bit flag is set at the provided index of the enum element (i.e. the index of the element in the names array)
/// </summary>
bool IsSet(int _index)
{
object val = DoAndOperator(theEnum, GetEnumValue(_index), enumUnderlyingType);
//We handle All and None elements differently, since they're "special"
if(IsAllElement(_index))
{
//If all other bits visible to the user (elements) are set, the "All" element checkbox has to be checked
//We don't do a simple AND operation because there might be missing bits.
//e.g. An enum with 6 elements including the "All" element. If we set all bits visible except the "All" bit,
//two bits might be unset. Since we want the "All" element checkbox to be checked when all other elements are set
//we have to make sure those two extra bits are also set.
bool allSet = true;
for (int i = 0; i < Enum.GetNames(fieldInfo.FieldType).Length; i++)
{
if(i != _index && !IsNoneElement(i) && !IsSet(i))
{
allSet = false;
break;
}
}
//Make sure all bits are set if all "visible bits" are set
if(allSet)
{
theEnum = DoNotOperator(Convert.ChangeType(0, enumUnderlyingType), enumUnderlyingType);
}
return allSet;
}
else if (IsNoneElement(_index))
{
//Just check the "None" element checkbox our enum's value is 0
return Convert.ChangeType(theEnum, enumUnderlyingType).Equals(Convert.ChangeType(0, enumUnderlyingType));
}
return !val.Equals(Convert.ChangeType(0, enumUnderlyingType));
}
/// <summary>
/// Call the bitwise OR operator (|) on _lhs and _rhs given their types.
/// Will basically return _lhs | _rhs
/// </summary>
/// <param name="_lhs">Left-hand side of the operation.</param>
/// <param name="_rhs">Right-hand side of the operation.</param>
/// <param name="_type">Type of the objects.</param>
/// <returns>Result of the operation</returns>
static object DoOrOperator(object _lhs, object _rhs, Type _type)
{
if(_type == typeof(int))
{
return ((int)_lhs) | ((int)_rhs);
}
else if (_type == typeof(uint))
{
return ((uint)_lhs) | ((uint)_rhs);
}
else if (_type == typeof(short))
{
//ushort and short don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((short)((short)_lhs | (short)_rhs));
}
else if (_type == typeof(ushort))
{
//ushort and short don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((ushort)((ushort)_lhs | (ushort)_rhs));
}
else if (_type == typeof(long))
{
return ((long)_lhs) | ((long)_rhs);
}
else if (_type == typeof(ulong))
{
return ((ulong)_lhs) | ((ulong)_rhs);
}
else if (_type == typeof(byte))
{
//byte and sbyte don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((byte)((byte)_lhs | (byte)_rhs));
}
else if (_type == typeof(sbyte))
{
//byte and sbyte don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((sbyte)((sbyte)_lhs | (sbyte)_rhs));
}
else
{
throw new System.ArgumentException("Type " + _type.FullName + " not supported.");
}
}
/// <summary>
/// Call the bitwise AND operator (&) on _lhs and _rhs given their types.
/// Will basically return _lhs & _rhs
/// </summary>
/// <param name="_lhs">Left-hand side of the operation.</param>
/// <param name="_rhs">Right-hand side of the operation.</param>
/// <param name="_type">Type of the objects.</param>
/// <returns>Result of the operation</returns>
static object DoAndOperator(object _lhs, object _rhs, Type _type)
{
if (_type == typeof(int))
{
return ((int)_lhs) & ((int)_rhs);
}
else if (_type == typeof(uint))
{
return ((uint)_lhs) & ((uint)_rhs);
}
else if (_type == typeof(short))
{
//ushort and short don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((short)((short)_lhs & (short)_rhs));
}
else if (_type == typeof(ushort))
{
//ushort and short don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((ushort)((ushort)_lhs & (ushort)_rhs));
}
else if (_type == typeof(long))
{
return ((long)_lhs) & ((long)_rhs);
}
else if (_type == typeof(ulong))
{
return ((ulong)_lhs) & ((ulong)_rhs);
}
else if (_type == typeof(byte))
{
return unchecked((byte)((byte)_lhs & (byte)_rhs));
}
else if (_type == typeof(sbyte))
{
//byte and sbyte don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((sbyte)((sbyte)_lhs & (sbyte)_rhs));
}
else
{
throw new System.ArgumentException("Type " + _type.FullName + " not supported.");
}
}
/// <summary>
/// Call the bitwise NOT operator (~) on _lhs given its type.
/// Will basically return ~_lhs
/// </summary>
/// <param name="_lhs">Left-hand side of the operation.</param>
/// <param name="_type">Type of the object.</param>
/// <returns>Result of the operation</returns>
static object DoNotOperator(object _lhs, Type _type)
{
if (_type == typeof(int))
{
return ~(int)_lhs;
}
else if (_type == typeof(uint))
{
return ~(uint)_lhs;
}
else if (_type == typeof(short))
{
//ushort and short don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((short)~(short)_lhs);
}
else if (_type == typeof(ushort))
{
//ushort and short don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((ushort)~(ushort)_lhs);
}
else if (_type == typeof(long))
{
return ~(long)_lhs;
}
else if (_type == typeof(ulong))
{
return ~(ulong)_lhs;
}
else if (_type == typeof(byte))
{
//byte and sbyte don't have bitwise operators, it is automatically converted to an int, so we convert it back
return (byte)~(byte)_lhs;
}
else if (_type == typeof(sbyte))
{
//byte and sbyte don't have bitwise operators, it is automatically converted to an int, so we convert it back
return unchecked((sbyte)~(sbyte)_lhs);
}
else
{
throw new System.ArgumentException("Type " + _type.FullName + " not supported.");
}
}
/// <summary>
/// Check if the element of specified index is a "None" element (all bits unset, value = 0).
/// </summary>
/// <param name="_index">Index of the element.</param>
/// <returns>If the element has all bits unset or not.</returns>
bool IsNoneElement(int _index)
{
return GetEnumValue(_index).Equals(Convert.ChangeType(0, enumUnderlyingType));
}
/// <summary>
/// Check if the element of specified index is an "All" element (all bits set, value = ~0).
/// </summary>
/// <param name="_index">Index of the element.</param>
/// <returns>If the element has all bits set or not.</returns>
bool IsAllElement(int _index)
{
object elemVal = GetEnumValue(_index);
return elemVal.Equals(DoNotOperator(Convert.ChangeType(0, enumUnderlyingType), enumUnderlyingType));
}
}
#endif
[System.AttributeUsage(System.AttributeTargets.Field, AllowMultiple = false)]
public class EnumMaskAttribute : PropertyAttribute
{
}
I hope this helps someone!
