Reducing size of catalog.json by optimizing 'm_extraDataString'

Unity Engine
,
1

Our project has over 7000 bundles, and catalog.json is about 12.1MB. A large part of it is from ‘m_extraDataString’, which is about 8.3MB. After some investigation, I found there are lots of waste from serializing AssetBundleRequestOptions(every bundle has one AssetBundleRequestOptions object be serialized in m_extraDataString).

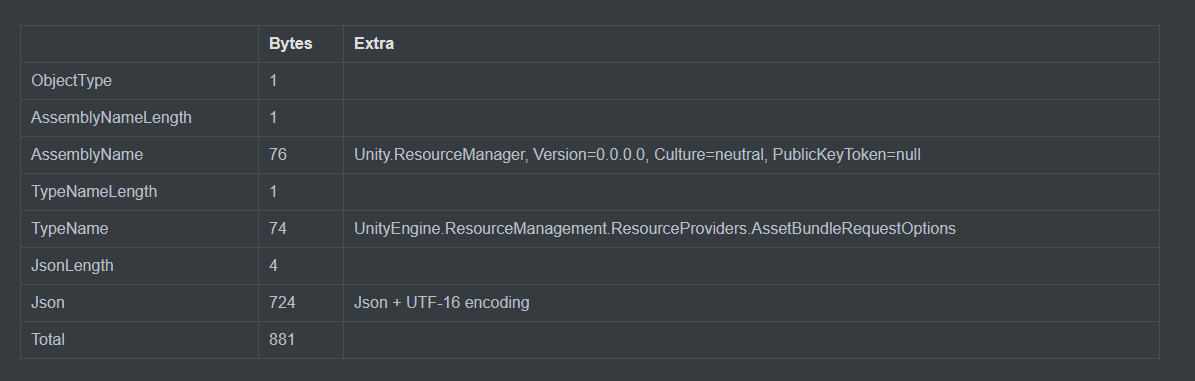

Here is the statistics for serializing one AssetBundleRequestOptions object:

7973382--1023012--upload_2022-3-18_10-7-30.png1195×381 9.68 KB

Since AssetBundleRequestOptions is a builtin type of Addressables, I think Unity can use more compact serialization for it:

  • Don’t serialize AssemblyName
  • Don’t serialize TypeName
  • If json contains only ASCII characters, ASCII encoding should be used instead (Or always use UTF-8 instead).
2

@pillakirsten

3

Hi @Alan-Liu thanks for the feedback!

We do have a few existing methods to decrease the catalog.json size, have you tried them already?

4

Hi, pillakirsten

My purpose is reducing size of remote catalog, so ‘Compress Local Catalog’ dosen’t help. For ‘Internal Asset Naming Mode’, I’ll try it tomorrow, but it isn’t related to ‘m_extraDataString’.

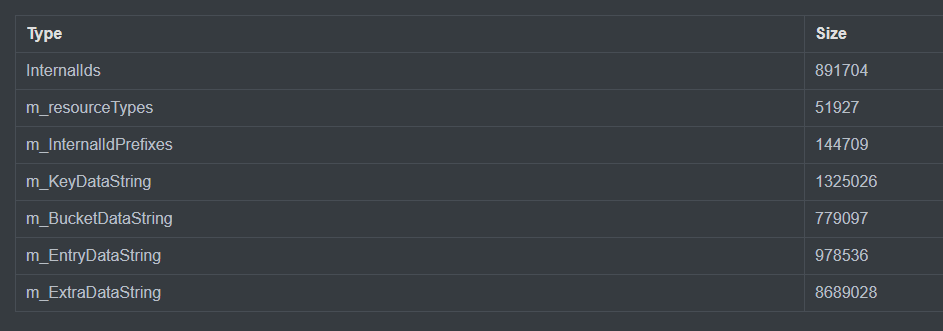

Here is the stats for our catalog.json:

As you can see, the largest part is ‘m_extraDataString’, so I think optimizing it is most helpful to reduce size of catalog.json.

5

Oh I see, makes sense. I’ll create ticket for this request.

1 Like
