ShaderGraph not rendering Transparency correctly on 2D sprites

Unity Engine
1

Hello, I’ve just started tinkering with Shadergraph and the Universal render pipeline, but I can’t seem to get the transparency on sprites to work properly. When I use the default sprite material the transparency around the character comes out fine, but when I use the shadergraph material I can’t seem to get rid of this weird blocky stuff that appears around the sample character.

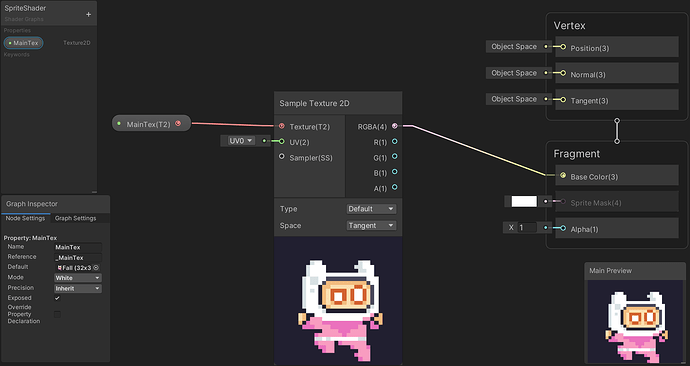

Here’s the set up.

6707632--770641--Unity_Shadergraph_transparency_not_working.PNG1777×945 98.9 KB

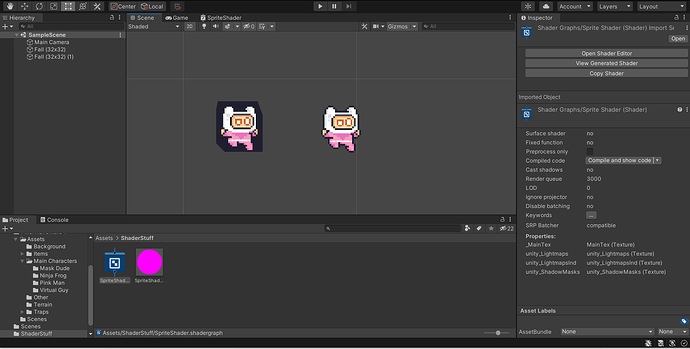

Here’s the Shadergraph sprite vs the regular sprite that was just drag and dropped into the scene.

6707632--770644--Unity_ShadergraphSprite_vs_NormalSprite.PNG1899×963 111 KB

I’ve tried following the Unity tutorial on this and am getting the same result, a few things have changed since the most recent Unity tuts on this but everything seems mostly the same…
I don’t know what I missed. Anyone out there have an answer?

2

you are sending the alphachanel rgb(a)4 into the color 3 node

you need to plug the A(1) node into the alpha(1) node

1 Like
3

You are my saviour, it worked!!! Thanks.
