(Solved) Left eye orientation wrong on Cardboard starter project

Unity Engine
1

Hello! I’m very new to Unity so bear with me.

I started a new 3D Core project for Google Cardboard, using this quickstart guide:

I believe I’ve followed all the steps correctly, although some of the steps are a bit ambiguous, as they might refer to an older Unity version, or say “choose an option” without any context for what the options will do. I’ve tried to set the target device level to 31 which I think matches my device.

I’m using the Hello Cardboard sample.

On my Samsung Galaxy S10, I can connect using Android Developer Studio in debug mode, and deploy to my phone. But when running the project, the left eye is portrait, and the right eye is landscape. Moving my head left and right causes the left eye to scroll up and down.

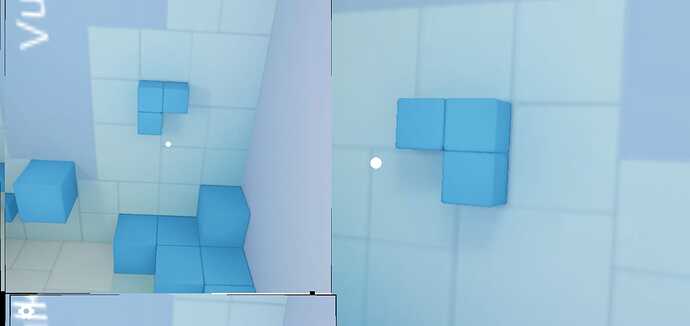

I’ve attached screenshot.

I’m not sure if it’s a device issue, as everything “works”, but the result is bad.

I can use a few other Cardboard apps (youtube etc) without any similar issue.

Unity: 2022.3.13f1
Dev Device: Macbook Air M2
Device: Galaxy S10
Device OS: 12

9468155--1330496--WhatsApp Image 2023-11-13 at 14.31.21.jpeg
9468155--1330496--WhatsApp Image 2023-11-13 at 14.31.21.jpeg1600×757 34.3 KB

2

i guess your link should be this one (for unity)

after confirming those settings,
i’d probably test on that specific unity version that they recommend..

and check any open issues from

1 Like
3

Thanks for your reply!

I tested on the older version with no luck. But then I played with a few more settings and found using Vulcan graphics API was the problem, the fix was using OpenGLES3 exclusively to fix the left eye orientation.

1 Like
