Updated:
I’ve been messing around with the tree creator some more and I’ve really gotten the hang of it. I thought I’d try to do a pine tree so I did I post the results in the post on the 6th page.

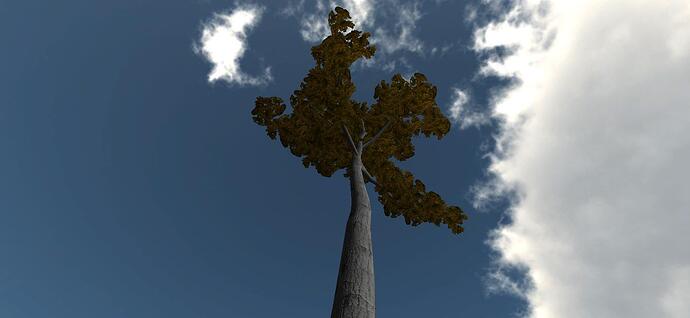

Huge update check out the new screenshots below this post
Since SpeedTree in Unity isn’t possible and Unity has horrible prefabed trees that are 12 ft fully grown trees. I’ve decided to start making a tree package for Unity that will resemble SpeedTree trees that are have lower tris and look much better and realistic than Unity’s prefabed trees.
So far I have 3 different trees 40 to 50 ft tall (much more to come) that are the same types of trees but are altered and look different. Making a forest scene with these trees will look much much better than traditional Unity trees.
All trees have relatively low in tris and have billboarded leaves to act like SpeedTree trees. I studied how the trees were done in Oblivion and tried to recreate it the best I could. Now this is still a work in progress so I need some feedback.
These were made with the Unity Tree Creator and will be available on the Asset store soon.
Updated Forest Example Showing the Power of RealTrees:
Unity trees as in Unity’s prefabed trees that they made including their Asset pack. Their Tree Creator is nice, but they do nothing to show off it’s true potential.
Everyone knows that Unity’s prefabed trees aren’t the best I’m not bagging…I’m just saying there are better ones out there or better ones that can be made using the Tree Creator like so…
My Tree only has 1,400 tris and Untiy’s Big Tree using the Tree Creator has 3,500 tris. See the difference my trees are much more realistic and have over half the tris as Unity’s Big Tree.
Yeah this is a bit off-the-mark. The example trees are example assets - it’s not that they’re not SpeedTree trees. What makes ST good is the technology behind it, the trees are just whatever you decide to make in it, and imo you can get great results with Unity’s Tree Creator. What you can’t get is the other ST stuff, like wind, rendering (on any surface/mesh) and fancy pants LOD’ing.
@ duke Yes, SpeedTree has a lot of nice features but it’s 10k. Using the wind with the billboarding in Unity you get a similar effect to the way Oblivion does their wind.
Here’s my attempt at a birch tree like in Oblivion. It’s not perfect because SpeedTree is pretty amazing, but it’s close.
Note: Oblivion graphics were on high and they have a lot of effects…
Interesting stuff you have there. I like first type of tree you made, that birch tree isnt that good.
You are right that Unity tree creator uses a lot of polys. Basically it uses more triangles than SpeedTree tree for leaves but it looks worse and more empty.
What is main stuff you should look up to is:
-SpeedTree trees have a lot of polys for bottom part of tree (bark) and it looks nice rounded. It is very important that on bottom where tree starts to fade with ground has even more polys and is detailed on that part. This is important becouse it actually creates ilusion that whole tree bark is detailed since this part of tree is most exposed to player when playing, becouse it is near to ground.
-SpeedTrees in Unreal Tournament 3 look better than Oblivion. Take a look at their normal maps. All trees in that game have very strong normal maps, i have checked it on my own. This adds a lot of depth to bark. Afcourse if you have tree with really flat type of bark then you dont do use that strong normals.
-Use 2 types of leaves texture. This adds more realism to leaves and more variation. Almost all trees in UT3 or Oblivion have 2 types of leaves.
-Ambient occlusion. Unity tree creator trees have AO by standart, but since you are making them in 3d app, you wont have it. You should somehow bake it on trees becouse it adds nice depth. Take a look at that birch tree picture you made from Oblivion, it has strong AO on top.
-The most important thing are rotating leaves. You would need to do that trough some script or somehow, but if you wont have rotating leaves you cant achive nearly anything similar to SpeedTree.
@ janpec Yeah I’m trying to hit all that stuff and that’s why I’m slowly getting there. I’m really starting to get the hang of the Tree Creator. I try to have 2 types of leaves textures but good leaves textures are very hard to come by to make them look good with Unity’s trees. I have to edit every texture I use. I have the rotating leaves that what the billboard does and it really helps to bring the SpeedTree feel.
Thanks for the suggestions, what exactly didn’t you like about the birch? I wasn’t working very long on that one so I didn’t have a chance to tweak it. This is my second attempt at the birch tell me what you think.
It’s hard to get the colors down because I have to tweak them using GIMP
So you are trying to emulate trees from a 5 year old game and you are coming up with something that is actually worse.
Anyway, the Unity tree creator is a nice add-on and all that, but it’s not very powerful. If someone wants really good trees, they’d have to model them in a 3d package. If they don’t want to do that, they can just play around with the tree creator and try and improve the results, which is what you’re doing.
AcidArrow, Oblivion uses SpeedTree which costs 10K per title. It’s FOR making trees, it being five years old is completely irrelevant. Don’t be so disrespectful and he has good ideas.
Good idea
Will definitely be of interest at least here, be it just to learn from examples.
But up to a given point I’ve to agree with what AcidArrow potentially meant, but I would like to be specific on what I mean exactly:
The trees are very specific.
For most games they might not be usable at all if the majority of your trees are “heavy trunk pines” basically. This kind of tree only exists in a dense forest where light does barely not reach the ground anymore, they don’t exist in the wild as standalone trees normally or at forest borders, your screenshot there shows how out of place they basically look
You mention Oblivion a few times in your comparision. Do you intend to offer Tree Creator based bush setups and alike along it, one of the tricks upon which Oblivions vegetation worked to look and especially feel as good as it did, which then can be used to give a stronger impression and feel of dense vegetation on the player level?
Optimizing trees for poly budget is great!
But the target should be to reduce without changing or destroying the visual look (larger leaves with better / denser textures) and no longer make it a replacement for the “high poly tree”. Your trees at least on this stills are seriously lacking the density of normal vegetation.
Your oblivion up-birch comparision shows it to a shocking degree. Yes speedtree has a few more tricks up its sleeves, after all the tech is $10k with the asset package being 2-4 times as expensive, but the lack of density here is also caused to a large degree by the leaf texture which covers nearly no area and does not give an impression of a dense, leaf filled tree at all.
In case you used the free ones that come with Unity I would definitely recommend to create a few own good ones with better constrast and generally a denser feeling than what Unity provides out of the box as I don’t see these textures as good at all (they worked for U2 style trees but with the new one they are worse than what TreeMagik G3 offers out of the box)
That are at least my points as a developer and as a player who has to experience or endure them in the end where they would destroy the impression pretty badly unless we talk about a Fallout alike post-apoc styled game.
@ Dreamora Yes, I have my own custom leaves textures but it just takes time to get them looking good with the Tree Creator (Hours of tweaking and editing). Once I really get the hang of things I’ll be able to create trees faster. I’m using the polys where needed, but increasing the LOD in the trunk sometimes isn’t worth the poly count. You’ll get a slightly smoother look for 200 more tris and the difference is hardly noticeable, but that’s why it takes time to tweak and edit. I’ll eventually find a perfect mix to create great looking trees. But I’m glad you’re interested, I’ll use your suggestions. And yes I know the trees are random but I’m just comparing to Oblivion right now I’ll get to the more realistic ones. I’m planning on having a HUGE collection of trees like SpeedTree does.
If anyone wants a tree made please give me an example and I’d be happy to give it a try.
Fully agree, on the trunk the gain is really hard to notice unless you cut a whole tree, cause good textures can really make a 8 sided trunk look like a 16 sided one yet the poly count is half as high.
My comment there was more related to leaves or what I would call “visual density” or volume of a tree, cause its the leaves that make it a tree and not a dead trunk in the end and if they barely reach out from the trunk they just feel very wrong and unnatural.
Its naturally always a balance act cause large leaves with detailed “multibranch leaf textures” have their backside on the fillrate impact due to overdraw and leaf crossings. As polygons normally are cheaper than pixels (in the sense that the budget for not so fast hardware is higher on the triangle end than on the pixels end), I would see to balance it towards using a few more leaves instead of a large leaf texture and larger leaves in case of a “which side to favor” situation.
Ok I get what you mean with the leaves. I am trying to create a more full look with the trees. I just found a setting that allows me to edit the leaves to get the leaves to look more full because it allows me to move and rotate all the leaves so they aren’t all bunched up right on the branch. I think I’ll have it down soon I’m getting the hang of it. I’m working on a bush right now, but I did have time to mess with the Birch and it’s looking much fuller now. I’ll have more time to mess with it in a little.
Have you thought about making them in ZBrush instead? Little more work, but you can come up with some very creative and unique looking trees, plus LOD’s via Decimator. Would require a little extra work for setting up wind effects though.
Oblivion has one advantage, soft vegetation. Difference between soft vegetation (unity 2.6) and current is huge. Anybody who is claiming, that current version is better is blind (and Unity team lickspittle). We definitely need soft shaders for unity vegetation (with normal maps for bark). Just try to take tree model and give it normal diffuse shader (plus normal map for bark). Difference is tremendous.
Frank i dont think you can make tree in zbrush. First it is not practical, and neither is usefull. Sculpting tree for normal map is out of option, since tree needs tiled normal map texture. Also you cant make 1 sided polys for leaves very well in Zbrush neither.
Ik Animation i think that most important part you have to hit are rotating and proper set leaves. Forgett about texture. It is important that you get mechanic correct. Leaves have to rotate towards player all the time. And if you take a notice at SpeedTree leaves you will see that almost all leaves are placed on Y standart vertical position and are not placed like yours in different dirrections. This way you can reduce poly count for trees on half and while they rotate it still looks way more full than normal created tree.
I think what Frank Oz meant: model your base mesh in ZBrush. Do all the main branches etc. there.
You guys need to stop thinking that there’s only one software solution for a problem.
I jump from Zbrush to Cinema to Blender to Photoshop to Cinema to Zbrush … just use the tool that fits best for what you want to achieve.
Also: Blender hat a very cool three creation script. It was geared towards rendering but I think with the right settings you could also use it for LowPoly stuff since the most important thing it did was fill in the small twigs and planes for leaves. I don’t remember if you could create fewer planes or thos HigPoly meshes only. Also it was a python script for BigBuckBunny. Don’t know if it still runs…
It was cool, tohugh.
That said: Yeah Speedtree might very well be awesome. I don’t see how the built-in tree editor is bad though. While maybe not being as advaced as Speedtree it is integrated into Unity. And I think you have quite a lot of options to create anything from realistic to fantasy. For any special looking trees there’s still modeling by hand.
It would probably be cool if at some point Speedtree was integrated into Unity for everybody who already has a license and wants to use it. Yet - personally I’m extremely happy with the integrated tree editor. I don’t have a Speedtree license and don’t plan on buying one. And I think the Editor integrated into Unity is pretty powerful already. And it’s not even a Pro-Only feature.
