Split Screen Rendering URP 2020.1

Unity Engine
,
1

To set up a split screen in URP, the docs on rendering from multiple cameras to the same render target (Rendering from multiple Cameras to the same render target | Universal RP | 8.2.0) all make a point of stating “Ensure that Output Target is set to Camera.” Herein lay the problem, there is no such option. The closest I can find is the “Output Texture” field to link a render texture to. What’s the workaround?

1 Like
2

The same issue here, the documentation is misleading or incompete.
Side by side rendering now gives me only one camera with the other one black.

7404980--905225--upload_2021-8-10_14-46-37.png832×478 50.3 KB

3

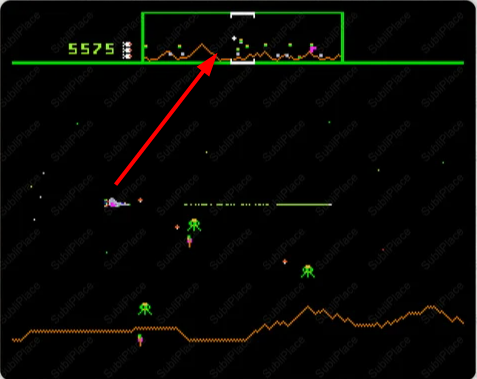

Bump. I’m running into the same issue. I’m working on a Defender remake and I want to use a 2nd camera to display a “radar” on the top portion of the screen:

4

any solution for this?

5

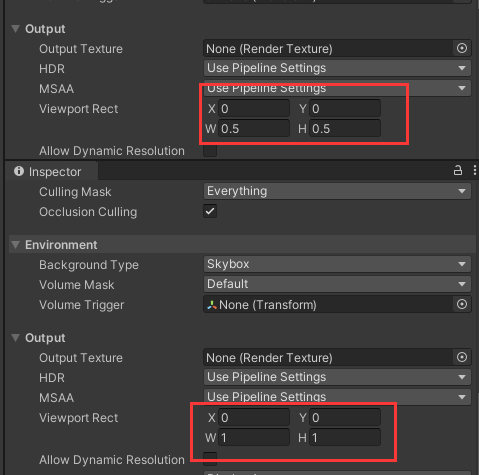

Don’t worry about it, just modify the Viewport Rect directly

Unity 2020.1.0f1

9368243--1310207--upload_2023-9-26_22-19-45.png479×559 30.2 KB

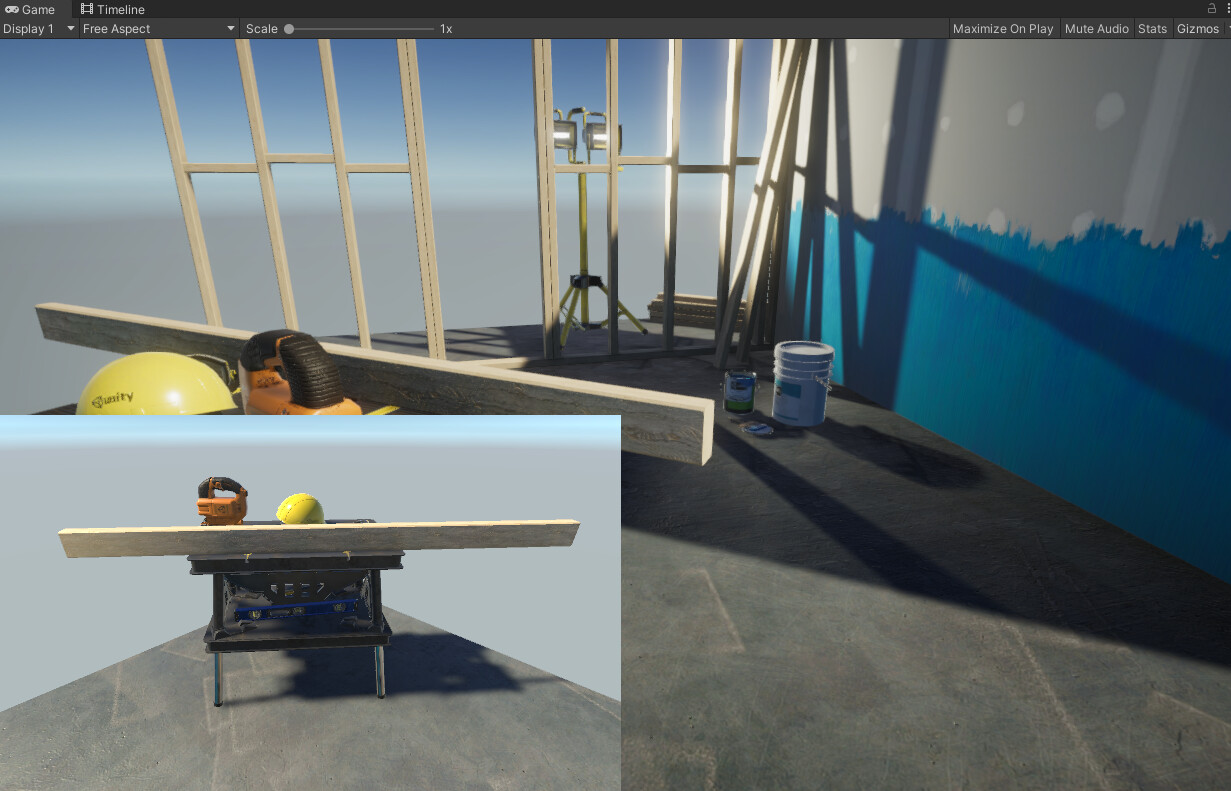

9368243--1310210--upload_2023-9-26_22-19-53.jpg1244×763 201 KB

9368243--1310198--upload_2023-9-26_22-16-14.jpg1231×791 183 KB


1 Like
6

Ok thank you for your help, I got it working by simply disabling the pixel perfect camera to enable split screen
