The code containing a collider won't run

Unity Engine
,
1

Okay, so as I have said, I am following a Pokemon game tutorial, and I have gotten to a section where the creator is changing the code that detects player object collision with grass to start a battle. Only it doesn’t work. There are several scripts involved, so I am going to start with the one that I have isolated the problem with.

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Player_Controller : MonoBehaviour
{
    [SerializeField] string name;
    [SerializeField] Sprite sprite;

    private Vector2 input;

    private Character character;
    private void Awake()
    {
        character = GetComponent<Character>();
    }

    public void HandleUpdate()
    {
        if (!character.IsMoving)
        {
            input.x = Input.GetAxisRaw("Horizontal");
            input.y = Input.GetAxisRaw("Vertical");

            // remove diagonal movement
            if (input.x != 0) input.y = 0;

            if (input != Vector2.zero)
            {
                StartCoroutine(character.Move(input, OnMoveOver));
            }
        }

        character.HandleUpdate();

        if (Input.GetKeyDown(KeyCode.Z))
            Interact();
    }

    void Interact()
    {
        var facingDir = new Vector3(character.Animator.MoveX, character.Animator.MoveY);
        var interactPos = transform.position + facingDir;

        // Debug.DrawLine(transform.position, interactPos, Color.green, 0.5f);

        var collider = Physics2D.OverlapCircle(interactPos, 0.3f, GameLayers.i.InteractableLayer);
        if (collider != null)
        {
            collider.GetComponent<Interactable>()?.Interact(transform);
        }
    }

    private void OnMoveOver()
    {
        var colliders = Physics2D.OverlapCircleAll(transform.position - new Vector3(0, character.OffsetY), 0.2f, GameLayers.i.TriggerableLayers);

        foreach (var collider in colliders)
        {
            Debug.Log("Work dammit");
            var triggerable = collider.GetComponent<IPlayerTriggerable>();
            if (triggerable != null)
            {
                triggerable.OnPlayerTriggered(this);

                break;
            }
        }
    }

    public string Name
    {
        get => name;
    }

    public Sprite Sprite
    {
        get => sprite;
    }

    public Character Character => character;
}

Okay, so the portion of the code that should activate the scripting that detects a collision between the grass and the player is in the OnMoveOver function.
The function works until it gets to the “foreach (var collider in colliders)” and that never activates the code within its parathesis. I created a break in the code, and when the game reaches that part, it considers and moves on. I suspect it is not detecting a collision. I want to investigate further into the reason, but I am not entirely sure how the foreach (var collider in colliders) part works and how it interacts with the var colliders line of code. If someone would explain that it might help me figure out where to investigate next.

2

I don’t see enough Debug.Log(); or Debug.DrawLine in your code.

3

Please post a link to the content that you’re referencing for better context.

4

There is a debug.log in the brackets of foreach (var collider in colliders), that says Work Dammit!. I keep changing them to reflect my frustration with each unsuccessful test. lol

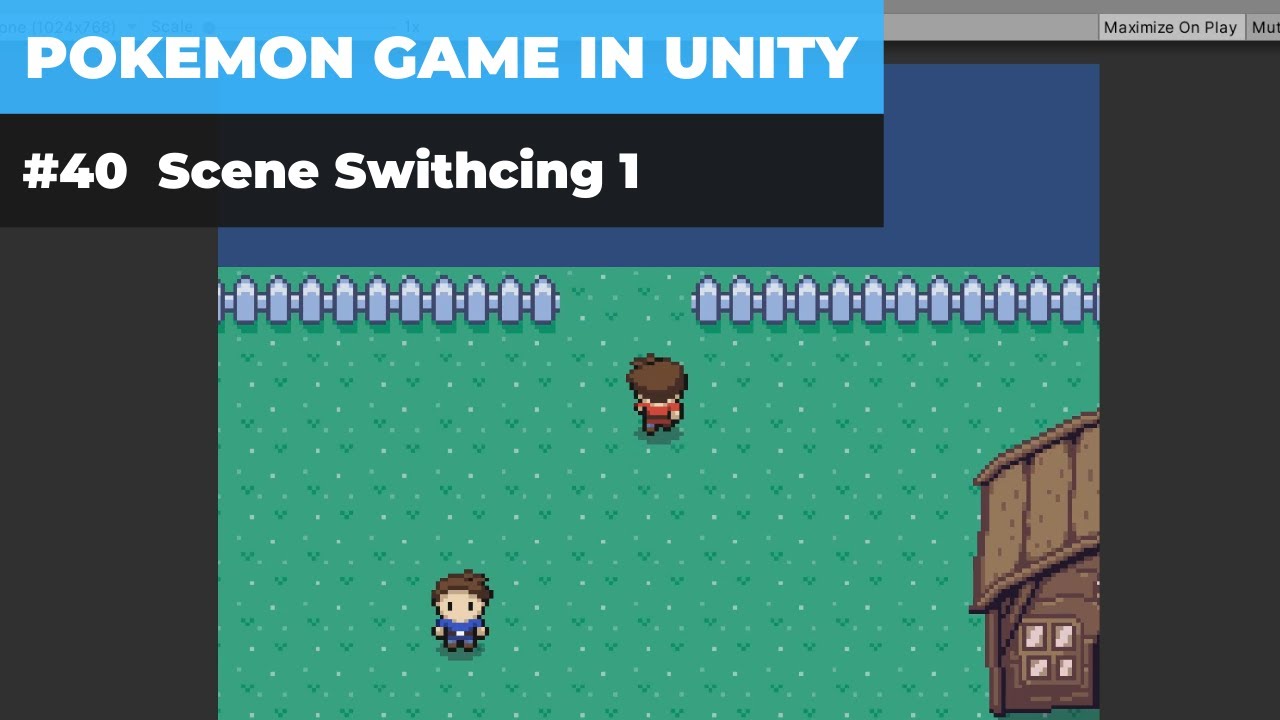

Here you go.

Everything worked fine until the 3 sections of the video where he refractors where the Overlapcircle code is from the previous videos. Also, the other parts where he changes the overlap collision do work It just the part that calls wild pokemon encounters that does not. The chain of code that should lead to that stops in the (var collider in colliders) lines of PlayerController script I posted in my first post.

5

The part in your code that stands out to me is: GameLayers.i.InteractableLayer
Physics2D.OverlapCircle takes a LayerMask. If InteractableLayer is just the layer number, then the Physics2D.OverlapCircle won’t work.
To convert a layerName or layer number to a mask:

var layerMask = LayerMask.GetMask ("InteractableLayer");
//or...
var layerMask = 1 << InteractableLayer;
1 Like
6

Thanks. Your suggestion pointed me in the right direction, where I found out I missed a piece of code: the creator of the video assigned to a script I did not post in the thread. The problem is that the creator moves really fast by just pasting code and moving on, so sometimes, just blinking, you can miss stuff. But this is the only tutorial of its kind I could find, so I just have to make do.
