Tilemap with sprite mask

Unity Engine
, ,
1

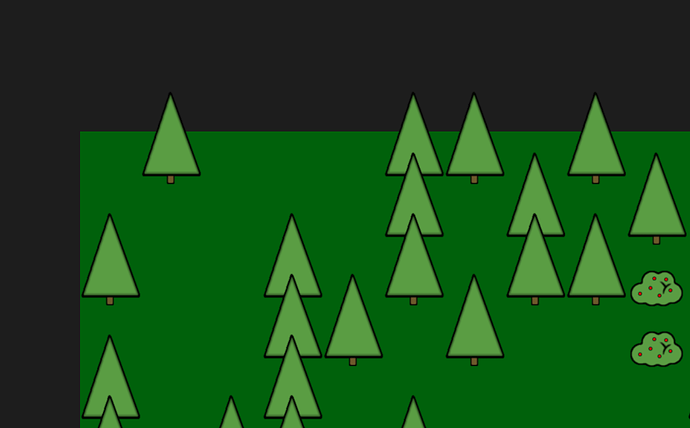

I have some tall sprites extending outside the bounds of the tilemap and I would like to trim the tops so that it remains contained. Here is a corner of my tilemap:

8648292--1163520--Screenshot 2022-12-09 125450.png
8648292--1163520--Screenshot 2022-12-09 125450.png965×599 82.6 KB

It seems there is a Mask Interaction option on the tilemap renderer. I have tried various combinations of Visible Inside Mask and attaching a Sprite Mask component to various game objects, but to no avail. I have also tried using the regular Mask component, but that didn’t change anything. Searching the nets I did not find anyone showing how to properly combine these two components.

Any ideas?

2

Is it really necessary and requires your intervention? Everything looks good.

3

create a new game object

add the sprite mask component

set the sprite on the sprite mask to something like a rectangle

click on the game object and move it above the part of the map you want to cut out

change the interaction on the tilemap to visible outside mask

4

Thank you flasker, you have pointed me in the right direction. This is what worked for me in the end, in case anyone else gets stuck:

  • Create a sprite mask in your scene as a game object, give it a square sprite (should be available by default)
  • Set its position to 0,0 and give it width,height as scale (e.g. my map is 500x500 tiles with 1 tile = 1 unit so I just simply set scale to 500,500)
  • Set the tilemap renderer’s Mask Interaction to Visible Inside Mask
