Too Long Animations List in Inspector

Unity Engine
1

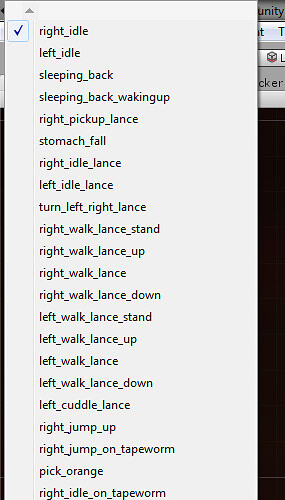

Hi, Is there other way to edit animation clips in Inspector other than drop down list?
Now, when I have 250+ clips, then I have to tediously and slowly wait for the list to scroll down and reveal that one animation I’m looking for? Any ideas? Thanks

5829178--618091--anim_list.jpg285×1440 159 KB

2

I can think of a few (shitty) workarounds:

  • Pressing a letter key might jump you through the list to the first entry starting with that letter.

  • Make a separate Animator Controller to just put in the clips you want to edit. Or make a script that implements IAnimationClipSource so you can just throw them all in an array instead of needing to make lots of states and stuff.

  • It would probably be possible to do some editor scripting using reflection to access the animation window so you can make a better interface for it, but that would take a bunch of effort.

1 Like
3

Thanks for the ideas!
1/ unfortunetly won’t work
2/ that’s interesting idea, thanks I’ll explore this
3/ oh no, but it would be perfect

4

Can resonate with this issue. It is brutal to find your callback function. Should have forward search matching.

5

Wat about having a nice tool with a tree-like controls, like the new Input System has?

6

Is there any asset that can help improve this inspector ? I have the same problem working on a pixel Art game and with all direction you have few hundreds animations to look into … Even just a scroll option would help a bit :stuck_out_tongue:

7

I managed to create a custom editor window with buttons to select animation clips.
For my project, all I needed was:
1 get currently selected AnimatorController
2 get the path of folder where controller is
3 get all AnimationClips from that folder
4 display all in window

Below are my code snippets for inspiration

(1 - 3)

public static AnimationClip[] GetAllMotionsForController()
                {
                        AnimatorController controller = GetCurrentController();
                        GetControllerInfo(controller, out string controllerPath, out string controllerFolder, out string controllerName);
                        return GetAllInstances<AnimationClip>(controllerFolder);
                }

(1)

public static AnimatorController GetCurrentController()
                {
                        AnimatorController controller = null;
                        EditorWindow[] tools = Resources.FindObjectsOfTypeAll<EditorWindow>();
                        int i;
                        int count = tools.Length;
                        for (i = 0; i < count; i++)
                        {
                                var toolType = tools[i].GetType();
                                var controllerProperty = toolType.GetProperty("animatorController", BindingFlags.NonPublic | BindingFlags.Public | BindingFlags.Instance);
                                if (controllerProperty != null)
                                {
                                        controller = controllerProperty.GetValue(tools[i], null) as AnimatorController;
                                        return controller;
                                }
                        }
                        return null;
                }

(2)

public static void GetControllerInfo(AnimatorController controller,
                        out string controllerPath, out string controllerFolder, out string controllerName)
                {
                        controllerPath = AssetDatabase.GetAssetPath(controller);
                        controllerFolder = controllerPath.Substring(0, controllerPath.LastIndexOf('/'));
                        int controllerFullNameStart = controllerPath.LastIndexOf('/') + 1;
                        int controllerFullNameEnd = controllerPath.LastIndexOf('.');
                        string controllerFullName = controllerPath.Substring(controllerFullNameStart, controllerFullNameEnd - controllerFullNameStart);
                        controllerName = controllerFullName.Split("__")[0];
                }

(3)

public static T[] GetAllInstances<T>(string parentFolder) where T : UnityEngine.Object
                {
                        string[] guids = AssetDatabase.FindAssets("t:" + typeof(T).Name, new[] { parentFolder });
                        T[] a = new T[guids.Length];
                        for (int i = 0; i < guids.Length; i++)
                        {
                                string path = AssetDatabase.GUIDToAssetPath(guids[i]);
                                a[i] = AssetDatabase.LoadAssetAtPath<T>(path);
                        }
                        return a;
                }

(4)

AnimationWindow animWin = EditorWindow.GetWindow<AnimationWindow>(false, "Animation", false);
                        AnimationClip[] motions = GlobalMethod.GetAllMotionsForController();
                        int count = motions.Length;
                        int i;
                        for (i = 0; i < count; i++)
                        {
                                if (PEGui.Button(motions[i].name, PELayout.V0, m_displayWidth, 18f))
                                        animWin.animationClip = motions[i];
                        }
8

Thanks Kybernetik. “Make a separate Animator Controller to just put in the clips you want to edit.” Better than nothing! The current method of scrolling through a huge list is not suitable for numerous animations. Shame that ululbulul’s solution seems complicated and hard, as predicted.

9

Actually there’s another option now: if you can upgrade to Unity 2023 they finally got around to making context menus searchable and scrollable. I haven’t specifically checked this menu, but it seems like a global revamp of all menus so it should automatically apply here too.
