Hello,

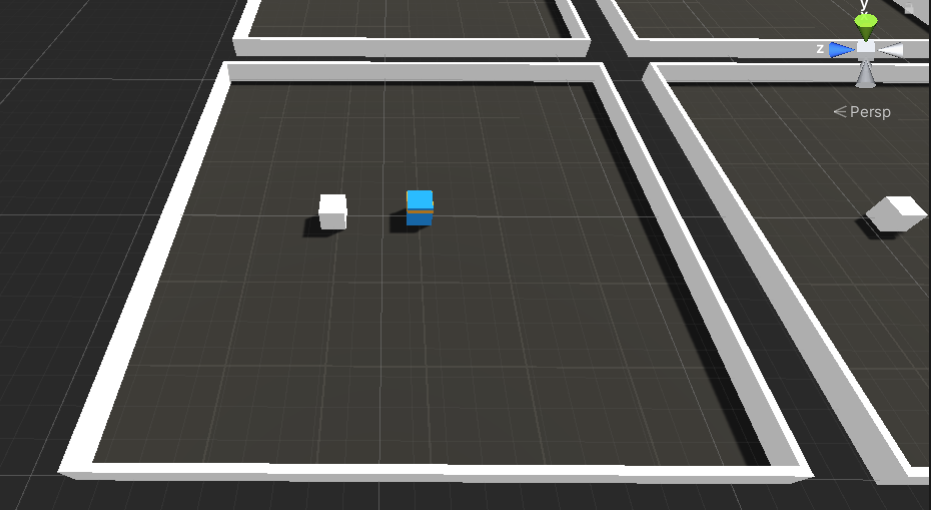

I was curious to find out what benefits SAC can bring to my projects over PPO so I’ve set up a simple scene where the agent is in a small level environment trying to fetch a target cube.

931×510 74.2 KB

Agent script:

public class AgentCube_1 : Agent
{
    public float agentRunSpeed = 3f;
    public float spawnAreaMarginMultiplier = 0.9f;
    public Transform Target;
    public GameObject ground;
    Bounds areaBounds;
    Rigidbody m_AgentRb;

    void Start()
    {
        m_AgentRb = GetComponent<Rigidbody>();
        areaBounds = ground.GetComponent<Collider>().bounds;
    }

    public override void OnEpisodeBegin()
    {
        // Move the target to a new spot
        Target.localPosition = GetRandomSpawnPos();
    }

    public override void OnActionReceived(ActionBuffers actionBuffers)
    {
        MoveAgent(actionBuffers);

        // Give reward
        float distanceToTarget = Vector3.Distance(this.transform.localPosition, Target.localPosition);
        if (distanceToTarget < 1f)
        {
            SetReward(1.0f);
            EndEpisode();
        }
        // Punish the agent if it is taking too long
        SetReward(-5f / 1000f);
    }

    public override void CollectObservations(VectorSensor sensor)
    {
        // Target and Agent positions
        sensor.AddObservation(Target.localPosition);
        sensor.AddObservation(this.transform.localPosition);
    }

    public void MoveAgent(ActionBuffers actionBuffers)
    {
        var dirToGo = Vector3.zero;
        var movementAction = actionBuffers.DiscreteActions[0];

        switch (movementAction)
        {
            case 1:
                dirToGo = transform.forward * 1f;
                break;
            case 2:
                dirToGo = transform.forward * -1f;
                break;
            case 3:
                dirToGo = transform.right * -0.75f;
                break;
            case 4:
                dirToGo = transform.right * 0.75f;
                break;
        }
        m_AgentRb.AddForce(dirToGo * agentRunSpeed,
            ForceMode.VelocityChange);
    }

    public override void Heuristic(in ActionBuffers actionsOut)
    {
     // removed to reduce line amount
    }

    public Vector3 GetRandomSpawnPos()
    {
        var foundNewSpawnLocation = false;
        var randomSpawnPos = Vector3.zero;
        while (foundNewSpawnLocation == false)
        {
            var randomPosX = Random.Range(-areaBounds.extents.x * spawnAreaMarginMultiplier,
                areaBounds.extents.x * spawnAreaMarginMultiplier);

            var randomPosZ = Random.Range(-areaBounds.extents.z * spawnAreaMarginMultiplier,
                areaBounds.extents.z * spawnAreaMarginMultiplier);
            randomSpawnPos = ground.transform.localPosition + new Vector3(randomPosX, 0.5f, randomPosZ);
            var worldspacepos = transform.TransformPoint(randomSpawnPos);

            if (Physics.CheckBox(worldspacepos, new Vector3(0.5f, 0.1f, 0.5f)) == false)
            {
                foundNewSpawnLocation = true;
            }
        }
        return randomSpawnPos;
    }

}

Hyperparameters:
behaviors:
HiderAgent:
trainer_type: sac
hyperparameters:
learning_rate: 0.0003
learning_rate_schedule: constant
batch_size: 512
buffer_size: 51200
buffer_init_steps: 0
tau: 0.005
steps_per_update: 16
save_replay_buffer: false
init_entcoef: 0.05
reward_signal_steps_per_update: 16
network_settings:
normalize: false
hidden_units: 128
num_layers: 2
reward_signals:
extrinsic:
gamma: 0.99
strength: 1.0
max_steps: 200000
time_horizon: 64
summary_freq: 10000

Agent max steps: 1000 - this does not reset the position of the agent but changes the position of the target
Agent space type: Discrete
Agents in scene: 16

While PPO works great, when I try to use SAC the agent chooses a random direction and rams the outer wall indefinitely while racking up reward penalties and never picking up the target.

What could be the issue here?

2

I’ll kick this over to the team for some guidance.

3

Hmm, that’s strange - SAC is actually fine with training a lot of our example environments that are very similar (e.g. PushBlock, Dynamic Crawler). Can you post the Tensorboard curves? I’d also try setting the init_entcoef parameter a bit higher, say 0.1.
