UI Icons Garbled

Unity Engine
1

I know this is a Windows issue, but am hoping someone can shed some light I’ve yet to find on Google.

I’m having a pretty major issue with my UI icons becoming garbled in some Windows applications. The two I can see this in are: Unity and 3ds max.

For example:

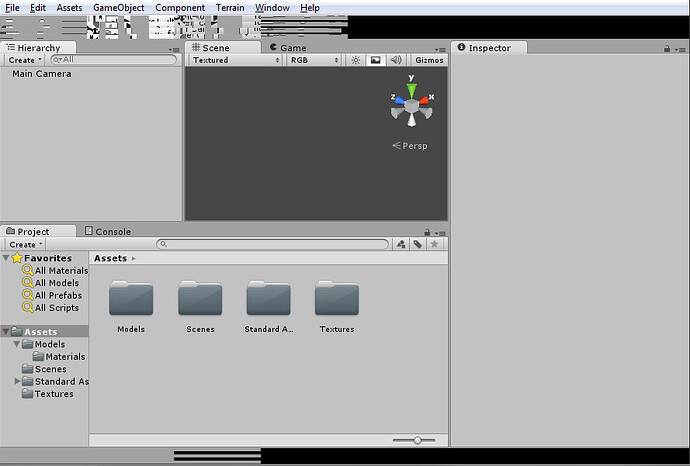

1266182--55998--$garbled1.jpg889×601 56.2 KB

(notice the rendering issues with the top toolbar and status bar at the bottom)

…and in 3ds max:

1266182--55999--$garbled2.jpg848×596 196 KB

(garbled application bar and UI toolbar dock)

Some notes:

  • I’ve installed the latest ATI Catalyst drivers.
  • I’m on 3 monitors (two ATI cards).
  • Windows is up-to-date.
  • Never had this problem before - I hadn’t used these programs in a month or two, but they worked fine the last time.
  • I have rebuilt Windows’ icon cache (appears it’s only for desktop/explorer icons.)

Anyone else ever dealt with this? I’d rather spend a day or two trying to figure it out instead of spending several days reinstalling everything just because of one little bug…

2

Just a head’s up, I was able to narrow it down to an issue with multiple monitors.

I have an ATI Radeon HD 4500 and Radeon HD 3400 for 3 monitors. When I disable the HD 3400 completely, my UI in Unity and 3ds max appear normal. When I enable the 3400, everything turns to plop (as seen in the screenshots above.)

It seems as long as the 3400 is on and controlling at least 1 screen, the UI icons become garbled.

I’m in the process of figuring out what to do next.

3

Forgot to mention I’m also Windows 7 - as it turns out, I was able to fix the problem by disabling Aero (I’ve switched the theme to Windows 7 Basic, ultimately.)

I’d imagine it must have been a problem with a recent Windows update.

Thanks, Microsoft! As usual, you’re a pain in the ass!

4

In the process, I was having similar issues with MonoDevelop AFTER solving the problem mentioned above. The MD interface wouldn’t load properly.

I reinstalled GTK# (a .NET lib used for MonoDevelop) and all is well at this point.

I tried re-enabling Aero after the GTK# reinstall, but still having problems – I was hoping GTK# would solve everything as it’s a GUI toolkit.

Still not using Aero (no need anyway.)

5

I had a similar issue with my previous ATI Radeon card - it seems that my GPU memory had worn out and replacing the GPU resolved the issue for me.
