WheelCollider.GetWorldPose returns NaN rotation

Unity Engine
,
1

Hello Everyone,

I’ve set up a car with 4 Wheel Colliders and everything is functioning properly, except for the fact that the rear wheels of the vehicle don’t rotate, but they do change their position (respond to the suspension). I eventually tracked this down to the WheelCollider.GetWorldPose function, and after logging the rotation, I found that it returns a NaN quaternion (rear-left and rear-right Wheels). I have seen from another thread that PhysX can spit out NaNs with really high forces, but I’m not creating these types of forces here.


Another issue I’ve found is that during game mode, the rear Wheel Collider’s main gizmos disappear, except for the two smaller gizmos:
(Meshes simplified for troubleshooting)

9819450--1411296--problem during gameplay.PNG
9819450--1411296--problem during gameplay.PNG884×489 69.4 KB

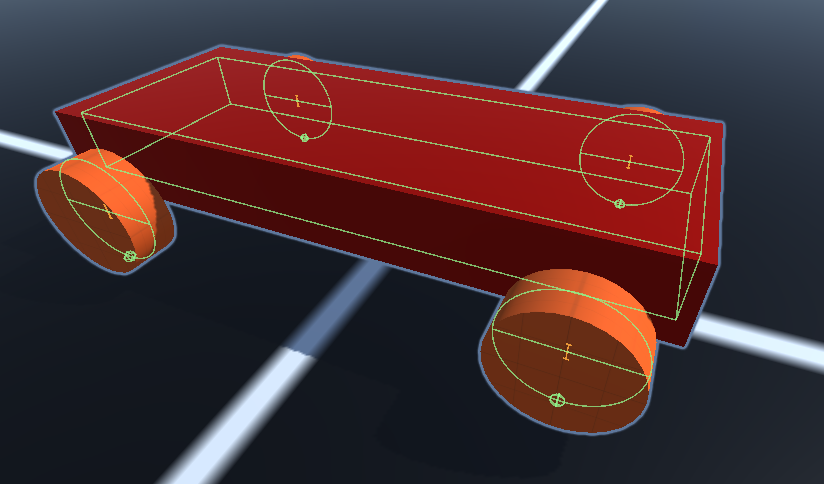

While in edit mode, everything looks normal:

9819450--1411293--scene view.PNG
9819450--1411293--scene view.PNG824×484 76.7 KB

Finally, here is the code in question:

void UpdateWheel(WheelCollider collider, MeshRenderer mesh)
{
Vector3 position = Vector3.zero;
Quaternion rotation = Quaternion.identity;

collider.GetWorldPose(out position, out rotation);
//Debug.Log(collider.name + ": " + rotation);

mesh.transform.position = position;
mesh.transform.rotation = rotation;
}

I think this might be an issue with the wheel collider itself and I’m aware that the Wheel Collider isn’t very polished, so this is probably a signal for me to create a custom Wheel Collider or use an asset. Any help would be greatly appreciated.

2

Update: After some tedious troubleshooting (commenting out parts of the code one by one), I found out that the cause of the problem was the differential code which, in the first frame of the game when all the inputs were 0, output the signed 32-bit integer limit (-2147483648). This Torque value was then fed into the 2 wheel colliders (the car was RWD) and caused this issue. So, the problem actually was that PhysX got too small of a value. The line that did the damage was multiplying 0 by 0.5f, which caused a NaN, and then 0 - NaN, which output the integer limit. To prevent this I just checked if the variable that caused the issue was zero before dividing. Just a quick reminder that computers are both somehow terrible and great at math at the same time. Hope this is helpful to anyone with the same issue.
