Why doesn't this Fake BRDF shader work?

Unity Engine
, , ,
1

I’m trying to recreate the fake BRDF shader described in here and / or this video. This is my graph:

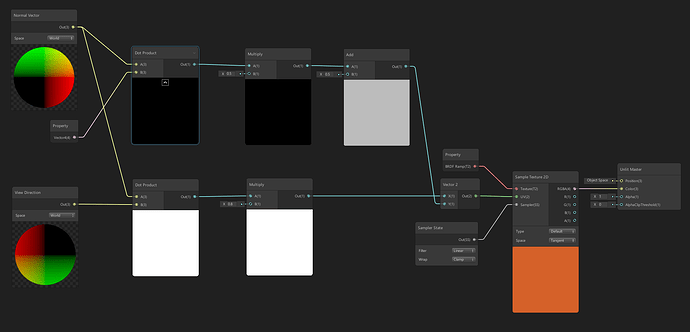

4735646--448775--upload_2019-7-11_11-52-35.png1816×875 70.7 KB

Everything looked pretty straightforward, I’m using a property with a reference to _WorldSpaceLightPos0 to get the light position, however when I plug the shader into an object I get incorrect results:

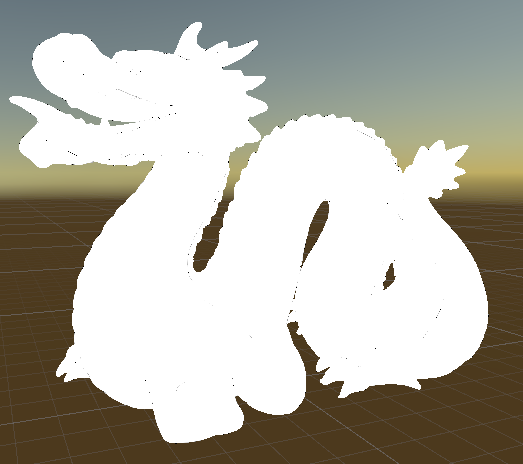

The dot product between the normals and the light direction seems to work fine as it generates the output I expect, however the dot product between the normals and the view direction seems to have something weird going on, as if I plug it directly to the color output I get overblown values:


While, judging from the article I linked earlier, I should expect a value between 0 and 1 (1 when directly facing the normal, 0 at right angles)

Anyone could help me understand what’s going on?

2

Solved this myself: just needed to normalize the output of the view direction node.

1 Like
3

Thanks man!

4

This is very interesting. How can the best texture be created? The calculations look quite cheap.
