Wireframe Transparent Texture

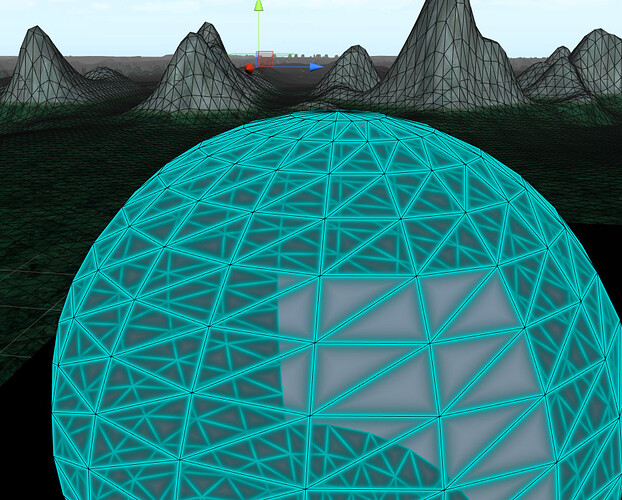

I just tried to convert Skrawk’s awesome wireframe shader to a transparent one, here’s the result… the Cull Off (to view back of mesh) has issues, the transparent isnt transparent, alpha of zero is still opaque.
If anyone knows why, i would love to understand why it displays that.

player:
https://dl.dropboxusercontent.com/u/114667999/wireframe-transparent/wireframe-transparent.html

Shader "Custom/Wireframe"  //from scrawkblog.com
{
    Properties
    {
        _WireColor("WireColor", Color) = (1,0,0,1)
        _Color("Color", Color) = (1,1,1,1)
    }
    SubShader
    {

        Pass
        {

        Tags {"Queue"="Transparent" "RenderType"="Transparent"}
        LOD 200
        ZWrite On
        Cull Off
        Blend SrcAlpha OneMinusSrcAlpha

            CGPROGRAM
            #include "UnityCG.cginc"
            #pragma target 5.0
            #pragma vertex vert
            #pragma geometry geom
            #pragma fragment frag


            half4 _WireColor, _Color;

            struct v2g
            {
                float4  pos : SV_POSITION;
                float2  uv : TEXCOORD0;
            };

            struct g2f
            {
                float4  pos : SV_POSITION;
                float2  uv : TEXCOORD0;
                float3 dist : TEXCOORD1;
            };

            v2g vert(appdata_base v)
            {
                v2g OUT;
                OUT.pos = mul(UNITY_MATRIX_MVP, v.vertex);
                OUT.uv = v.texcoord; //the uv's arent used in this shader but are included in case you want to use them
                return OUT;
            }

            [maxvertexcount(3)]
            void geom(triangle v2g IN[3], inout TriangleStream<g2f> triStream)
            {

                float2 WIN_SCALE = float2(_ScreenParams.x/2.0, _ScreenParams.y/2.0);

                //frag position
                float2 p0 = WIN_SCALE * IN[0].pos.xy / IN[0].pos.w;
                float2 p1 = WIN_SCALE * IN[1].pos.xy / IN[1].pos.w;
                float2 p2 = WIN_SCALE * IN[2].pos.xy / IN[2].pos.w;

                //barycentric position
                float2 v0 = p2-p1;
                float2 v1 = p2-p0;
                float2 v2 = p1-p0;
                //triangles area
                float area = abs(v1.x*v2.y - v1.y * v2.x);

                g2f OUT;
                OUT.pos = IN[0].pos;
                OUT.uv = IN[0].uv;
                OUT.dist = float3(area/length(v0),0,0);
                triStream.Append(OUT);

                OUT.pos = IN[1].pos;
                OUT.uv = IN[1].uv;
                OUT.dist = float3(0,area/length(v1),0);
                triStream.Append(OUT);

                OUT.pos = IN[2].pos;
                OUT.uv = IN[2].uv;
                OUT.dist = float3(0,0,area/length(v2));
                triStream.Append(OUT);

            }

            half4 frag(g2f IN) : COLOR
            {
                //distance of frag from triangles center
                float d = min(IN.dist.x, min(IN.dist.y, IN.dist.z));
                //fade based on dist from center
                float e = exp2(d*-.2);
                // float e = round(  exp2(d*-.9)  );

                half4 result = half4(
                0,
                e,
                e,
                e+.2
                );

                return result;
            }

            ENDCG

        }
    }
}

If the graphics card can’t handle Cull Off to display these kinds of things, (anyone know why?) the other option is to have two copies of the mesh, one using Cull Front, and one using Cull Back, set to transparent. that would work.

Then all that’s missing is to understand the Blend values, If someone knows a tutorial on blend values that would be great. because it’s very undocumented online.

it would be cool to have a webplayer showcasing 20 different Blend settings, so that we can figure them out and make cooler visuals :slight_smile:

Does forward/deffered rendering make a difference to blend results?
