Hi, I’m relatively new to trying out Unity’s uGUI, and I’ve run into an issue with trying to scale up the dropbox and its items.

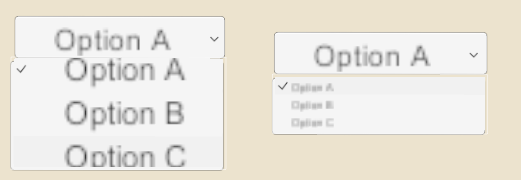

I’ve tried setting the dimensions of the dropbox itself (right side), but that leaves the items as tiny and trying to cram inside of it.
I’ve also tried setting the items in the template (left side), but then the items are too large and overlap. I’m sure I’m just missing something obvious, but any help is appreciated!
I’m having the same issue. If I add code to force the dropdown items to be larger the viewport doesn’t expand to fit them.
As less people seem to answer UI questions I’m not holding out much hope here, but if anyone has some info on how to make dropdown items larger I’d appreciate it.
The particular issue is that at high resolution the list items are too small to click.
hi, I think you and @Strategos are having trouble with basic canvas setup, unless it’s something else, so far I haven’t noticed this kind of issue with any UI element.
To change item height, just navigate to template under dropdown, change Item box height. To change item text size, select template “Item Label” and change it’s font size.
That’s all you have to do, never used dropdown and it took 2 minutes or so. Both items are available from Dropdown component directly.
Reason for not getting proper font size just might be something else - I bet you haven’t checked your canvas settings? Maybe your UI is just scaling along viewport size? Unless you lock it with “Scale with Screen Size” to target resolution, don’t expect some magic to happen, scaling viewport will cause all kinds of (predictable once familiar with system) “scaling” and movement of UI elements. World space canvases are a bit different thing also but I take it you are using Screen Space Canvas.
IMHO - check out all the Unity UI tutorials, these will pretty much answer all the questions related to UI basics.
My problem was 4 months ago and it’s been solved in the mean time
Unfortunately I don’t really remember what my issue was, I think it was something about the scale being set to some weird number (the items were being generated dynamically) which were fixed by a simple .SetScale after instantiation.
