Hi,
I’m currently trying to create a character controller based off of the new third-person controller from the new standard assets package released by Unity. My goal is to be able to change the direction of gravity into all four directions on demand (up, down, left, right). I’ve got the up and down directions working as intended, but I’ve reached my limits trying to figure out what I’m doing wrong with horizontal gravity.
In my frustration, my code is a little unoptimized and a bit of a mess. I would appreciate any help in trying to identify what I’m doing wrong or what I’m missing here. I’ve got the gravitational force working as intended but I’m missing something to produce the correct walking ability and animation. Here’s a video of how it looks and the code as well.

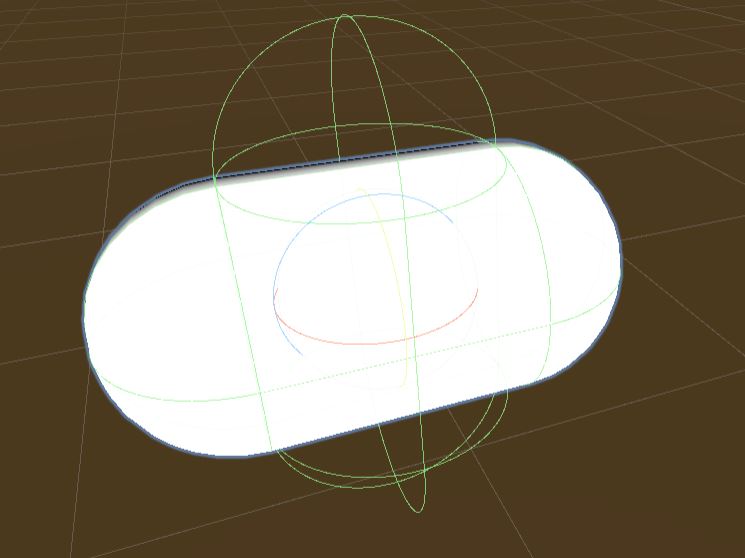

pzhn4f
using UnityEngine;
using UnityEngine.InputSystem;
[RequireComponent(typeof(PlayerInput))]
public class PlayerController : MonoBehaviour
{
[Header("Player")]
[Tooltip("Move speed of the character in m/s")]
public float MoveSpeed = 2.0f;
[Tooltip("Sprint speed of the character in m/s")]
public float SprintSpeed = 5.335f;
[Tooltip("How fast the character turns to face movement direction")]
[Range(0.0f, 0.3f)]
public float RotationSmoothTime = 0.12f;
[Tooltip("Acceleration and deceleration")]
public float SpeedChangeRate = 10.0f;
[Space(10)]
[Tooltip("The height the player can jump")]
public float JumpHeight = 1.2f;
[Space(10)]
[Tooltip("Time required to pass before being able to jump again. Set to 0f to instantly jump again")]
public float JumpTimeout = 0.50f;
[Tooltip("Time required to pass before entering the fall state. Useful for walking down stairs")]
public float FallTimeout = 0.15f;
[Header("Player Grounded")]
[Tooltip("If the character is grounded or not. Not part of the CharacterController built in grounded check")]
public bool Grounded = true;
[Tooltip("Useful for rough ground")]
public float GroundedOffset = -0.14f;
[Tooltip("The radius of the grounded check. Should match the radius of the CharacterController")]
public float GroundedRadius = 0.28f;
[Tooltip("What layers the character uses as ground")]
public LayerMask GroundLayers;
[Header("Cinemachine")]
[Tooltip("The follow target set in the Cinemachine Virtual Camera that the camera will follow")]
public GameObject CinemachineCameraTarget;
[Tooltip("How far in degrees can you move the camera up")]
public float TopClamp = 70.0f;
[Tooltip("How far in degrees can you move the camera down")]
public float BottomClamp = -30.0f;
[Tooltip("Additional degress to override the camera. Useful for fine tuning camera position when locked")]
public float CameraAngleOverride = 0.0f;
[Tooltip("For locking the camera position on all axis")]
public bool LockCameraPosition = false;
// player
private float _speed;
private float _animationBlend;
private float _targetRotation = 0.0f;
private float _rotationVelocityX;
private float _rotationVelocityY;
private float _rotationVelocityZ;
private float _verticalVelocity;
private float _horizontalVelocity;
// timeout deltatime
private float _jumpTimeoutDelta;
private float _fallTimeoutDelta;
// animation IDs
private int _animIDSpeed;
private int _animIDGrounded;
private int _animIDJump;
private int _animIDFreeFall;
private int _animIDMotionSpeed;
private Animator _animator;
private CharacterController _controller;
private PlayerControllerInput _input;
private GameObject _mainCamera;
private const float _threshold = 0.01f;
private bool _hasAnimator;
private Vector3 _desiredRotationAngles;
private byte _rotationAxis = 1;
private void Awake()
{
// get a reference to our main camera
if (_mainCamera == null)
{
_mainCamera = GameObject.FindGameObjectWithTag("MainCamera");
}
}
private void Start()
{
_hasAnimator = TryGetComponent(out _animator);
_controller = GetComponent<CharacterController>();
_input = GetComponent<PlayerControllerInput>();
AssignAnimationIDs();
// reset our timeouts on start
_jumpTimeoutDelta = JumpTimeout;
_fallTimeoutDelta = FallTimeout;
_desiredRotationAngles = new Vector3(0.0f, 90.0f, 0.0f);
}
private void Update()
{
_hasAnimator = TryGetComponent(out _animator);
JumpAndGravity();
GroundedCheck();
Move();
}
private void AssignAnimationIDs()
{
_animIDSpeed = Animator.StringToHash("Speed");
_animIDGrounded = Animator.StringToHash("Grounded");
_animIDJump = Animator.StringToHash("Jump");
_animIDFreeFall = Animator.StringToHash("FreeFall");
_animIDMotionSpeed = Animator.StringToHash("MotionSpeed");
}
private void GroundedCheck()
{
if (_input.Rotate)
{
Grounded = false;
_controller.Move(_input.Gravity.normalized * Time.deltaTime * 1.5f);
return;
}
// set sphere position, with offset
Vector3 spherePosition = new Vector3(transform.position.x, transform.position.y - GroundedOffset, transform.position.z);
Grounded = Physics.CheckSphere(spherePosition, GroundedRadius, GroundLayers, QueryTriggerInteraction.Ignore);
// update animator if using character
if (_hasAnimator)
{
_animator.SetBool(_animIDGrounded, Grounded);
}
}
private void Move()
{
// set target speed based on move speed, sprint speed and if sprint is pressed
float targetSpeed = SprintSpeed;
// a simplistic acceleration and deceleration designed to be easy to remove, replace, or iterate upon
// note: Vector2's == operator uses approximation so is not floating point error prone, and is cheaper than magnitude
// if there is no input, set the target speed to 0
if (_input.Move == Vector2.zero) targetSpeed = 0.0f;
// a reference to the players current horizontal velocity
float currentHorizontalSpeed = new Vector3(_controller.velocity.x, 0.0f, _controller.velocity.z).magnitude;
float speedOffset = 0.1f;
float inputMagnitude = _input.AnalogMovement ? _input.Move.magnitude : 1f;
// accelerate or decelerate to target speed
if (currentHorizontalSpeed < targetSpeed - speedOffset || currentHorizontalSpeed > targetSpeed + speedOffset)
{
// creates curved result rather than a linear one giving a more organic speed change
// note T in Lerp is clamped, so we don't need to clamp our speed
_speed = Mathf.Lerp(currentHorizontalSpeed, targetSpeed * inputMagnitude, Time.deltaTime * SpeedChangeRate);
// round speed to 3 decimal places
_speed = Mathf.Round(_speed * 1000f) / 1000f;
}
else
{
_speed = targetSpeed;
}
_animationBlend = Mathf.Lerp(_animationBlend, targetSpeed, Time.deltaTime * SpeedChangeRate);
// normalise input direction
Vector3 inputDirection = new Vector3(_input.Move.x, 0.0f, _input.Move.y).normalized;
// note: Vector2's != operator uses approximation so is not floating point error prone, and is cheaper than magnitude
// if there is a move input rotate player when the player is moving
if (_input.Move != Vector2.zero)
{
if (_rotationAxis == 0)
{
// Movement rotates on X axis
_targetRotation = inputDirection.x > 0 ? 90.0f : -90.0f;
float rotationX = Mathf.SmoothDampAngle(transform.eulerAngles.x, _targetRotation, ref _rotationVelocityX, RotationSmoothTime);
float rotationZ = Mathf.SmoothDampAngle(transform.eulerAngles.z, _desiredRotationAngles.z, ref _rotationVelocityZ, RotationSmoothTime * 2.0f);
// Rotate to face input direction relative to camera position
transform.rotation = Quaternion.Euler(rotationX, 0.0f, rotationZ);
}
else if (_rotationAxis == 1)
{
// Movement rotates on Y axis
_targetRotation = inputDirection.x > 0 ? 90.0f : -90.0f;
float rotationY = Mathf.SmoothDampAngle(transform.eulerAngles.y, _targetRotation, ref _rotationVelocityY, RotationSmoothTime);
float rotationZ = Mathf.SmoothDampAngle(transform.eulerAngles.z, _desiredRotationAngles.z, ref _rotationVelocityZ, RotationSmoothTime * 2.0f);
// Rotate to face input direction relative to camera position
transform.rotation = Quaternion.Euler(0.0f, rotationY, rotationZ);
}
}
else
{
if (_rotationAxis == 0)
{
// Movement rotates on X axis
float rotationZ = Mathf.SmoothDampAngle(transform.eulerAngles.z, _desiredRotationAngles.z, ref _rotationVelocityZ, RotationSmoothTime * 2.0f);
Quaternion expectedRotation = Quaternion.Euler(transform.rotation.eulerAngles.x, 0.0f, rotationZ);
if (!transform.rotation.Equals(expectedRotation))
transform.rotation = expectedRotation;
}
else if (_rotationAxis == 1)
{
float rotationZ = Mathf.SmoothDampAngle(transform.eulerAngles.z, _desiredRotationAngles.z, ref _rotationVelocityZ, RotationSmoothTime * 2.0f);
Quaternion expectedRotation = Quaternion.Euler(0.0f, transform.rotation.eulerAngles.y, rotationZ);
if (!transform.rotation.Equals(expectedRotation))
transform.rotation = expectedRotation;
}
}
if (_rotationAxis == 0)
{
Vector3 targetDirection = Quaternion.Euler(_targetRotation, 0.0f, _desiredRotationAngles.z) * Vector3.forward;
// move the player
_controller.Move(targetDirection.normalized * (_speed * Time.deltaTime) + new Vector3(_horizontalVelocity, _verticalVelocity, 0.0f) * Time.deltaTime);
}
else if (_rotationAxis == 1)
{
Vector3 targetDirection = Quaternion.Euler(0.0f, _targetRotation, _desiredRotationAngles.z) * Vector3.forward;
// move the player
_controller.Move(targetDirection.normalized * (_speed * Time.deltaTime) + new Vector3(_horizontalVelocity, _verticalVelocity, 0.0f) * Time.deltaTime);
}
// update animator if using character
if (_hasAnimator)
{
_animator.SetFloat(_animIDSpeed, _animationBlend);
_animator.SetFloat(_animIDMotionSpeed, inputMagnitude);
}
}
private void JumpAndGravity()
{
Vector3 gravityNormal = _input.Gravity.normalized;
if (gravityNormal.Equals(Vector3.up))
{
// Movement rotation axis is Y
_desiredRotationAngles = new Vector3(0.0f, 90.0f, 180.0f);
_rotationAxis = 1;
}
if (gravityNormal.Equals(Vector3.down))
{
// Movement rotation axis is Y
_desiredRotationAngles = new Vector3(0.0f, 90.0f, 0.0f);
_rotationAxis = 1;
}
if (gravityNormal.Equals(Vector3.right))
{
// Movement rotation axis is X
_desiredRotationAngles = new Vector3(90.0f, 0.0f, 90.0f);
_rotationAxis = 0;
}
if (gravityNormal.Equals(Vector3.left))
{
// Movement rotation axis is X
_desiredRotationAngles = new Vector3(90.0f, 0.0f, -90.0f);
_rotationAxis = 0;
}
if (Grounded)
{
// reset the fall timeout timer
_fallTimeoutDelta = FallTimeout;
// update animator if using character
if (_hasAnimator)
{
_animator.SetBool(_animIDJump, false);
_animator.SetBool(_animIDFreeFall, false);
}
if (gravityNormal.Equals(Vector3.up))
{
if (_verticalVelocity > 0.0f)
{
_verticalVelocity = 2.0f;
_horizontalVelocity = 0.0f;
}
}
if (gravityNormal.Equals(Vector3.down))
{
if (_verticalVelocity < 0.0f)
{
_verticalVelocity = -2.0f;
_horizontalVelocity = 0.0f;
}
}
if (gravityNormal.Equals(Vector3.right))
{
if (_horizontalVelocity > 0.0f)
{
_horizontalVelocity = 2.0f;
_verticalVelocity = 0.0f;
}
}
if (gravityNormal.Equals(Vector3.left))
{
if (_horizontalVelocity < 0.0f)
{
_horizontalVelocity = -2.0f;
_verticalVelocity = 0.0f;
}
}
// Jump
if (_input.Jump && _jumpTimeoutDelta <= 0.0f)
{
// the square root of H * -2 * G = how much velocity needed to reach desired height
float jumpVelocity = -_input.Gravity.normalized.y * Mathf.Sqrt(JumpHeight * -2.0f * -10.0f);
if (_rotationAxis == 0)
_horizontalVelocity = jumpVelocity;
else
_verticalVelocity = jumpVelocity;
// update animator if using character
if (_hasAnimator)
{
_animator.SetBool(_animIDJump, true);
}
}
// jump timeout
if (_jumpTimeoutDelta >= 0.0f)
{
_jumpTimeoutDelta -= Time.deltaTime;
}
}
else
{
// reset the jump timeout timer
_jumpTimeoutDelta = JumpTimeout;
// fall timeout
if (_fallTimeoutDelta >= 0.0f)
{
_fallTimeoutDelta -= Time.deltaTime;
}
else
{
// update animator if using character
if (_hasAnimator)
{
_animator.SetBool(_animIDFreeFall, true);
}
}
// if we are not grounded, do not jump
_input.Jump = false;
}
// apply gravity over time if under terminal (multiply by delta time twice to linearly speed up over time)
if (_rotationAxis == 0)
{
_horizontalVelocity += _input.Gravity.x * Time.deltaTime;
_verticalVelocity = 0.0f;
}
else
{
_verticalVelocity += _input.Gravity.y * Time.deltaTime;
_horizontalVelocity = 0.0f;
}
}
private void OnDrawGizmosSelected()
{
Color transparentGreen = new Color(0.0f, 1.0f, 0.0f, 0.35f);
Color transparentRed = new Color(1.0f, 0.0f, 0.0f, 0.35f);
if (Grounded) Gizmos.color = transparentGreen;
else Gizmos.color = transparentRed;
// when selected, draw a gizmo in the position of, and matching radius of, the grounded collider
Gizmos.DrawSphere(new Vector3(transform.position.x, transform.position.y - GroundedOffset, transform.position.z), GroundedRadius);
}
}
Thanks
