Hey guys,
Can someone provide me with some information about how to implement a very simple Grid/Map Editor via the Inspector and a Scriptable Object? I tried various implementations but Im not happy at all.
Basically, what Im looking for is the simplest map editor ever: a 2d array grid of Sprites edited via the Inspector and saved as Scriptable Object.

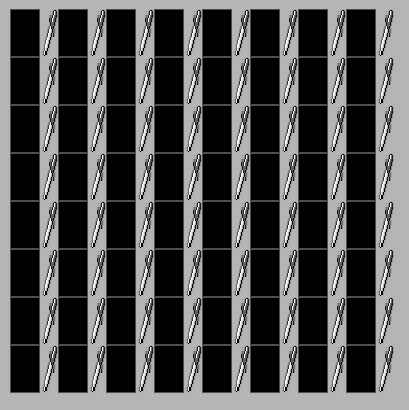

Attached is the code Im using right now, as well as a screen. This shows the implementation of using a Color (was not able to remove the Eyedropper).
But: I would prefer using Sprites to determine the Tile that is placed on a grid space. But Sprites do not show up in the Inspector at all (I see just that selection ring and the beginning of the filename).
I guess I have to replace Color with a CustomPropertyDrawer - any advice here?
[CreateAssetMenu(fileName = "MapData", menuName = "New Map")]
public class MapData : ScriptableObject
{
private const int defaultGridSize = 3;
[Range(1, 30)]
public int gridSize = defaultGridSize;
public CellRow[] cells = new CellRow[defaultGridSize];
public Color[,] GetCells()
{
Color[,] ret = new Color[gridSize, gridSize];
for (int i = 0; i < gridSize; i++)
{
for (int j = 0; j < gridSize; j++)
{
ret[i, j] = cells[i].row[j];
}
}
return ret;
}
[System.Serializable]
public class CellRow
{
[ColorUsageAttribute(false)]public Color[] row = new Color[defaultGridSize];
}
}
