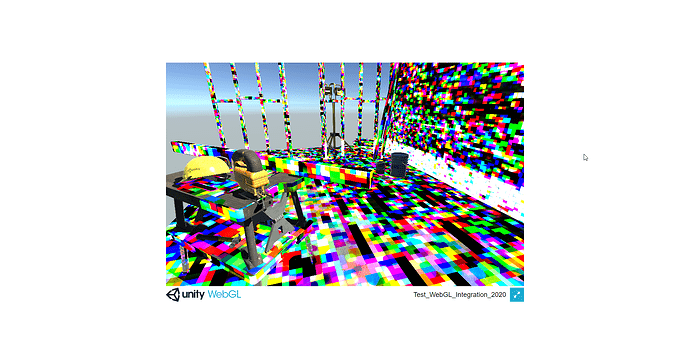

Hi all, I tried building the sample scene which comes with the URP on Unity 2020.11.f1 using WebGL 1.0 as graphics API (to test on Safari mobile, where 2.0 is not supported yet) and I am seeing some visual artefacts:
It looks fine when using WebGL 2.0. The artefacts appear both on Chrome desktop and mobile. The only options changed where graphics API to WebGL 1.0, Color Space to Gamma (since linear is not supported on WebGL 1.0) and I disabled post-processing on the camera (for the same reason).
In comparison, the same scene with the same settings built on 2019.4.12f1 looks fine, both on desktop and mobile - is this a regression?
This certainly is a regression. Can you report it as a bug, and add the screenshots and the Unity version numbers in the info? Thanks!
Btw does the issue reproduce on Chrome on desktop if you disable Auto Graphics API in build settings, and only enable WebGL 1? That would allow diagnosing whether it is something specifically in Safari, or something in WebGL 1.
Thanks for the bug report (and sorry for missing your original reply here @leon_r42 )
Reading the resolution of bug 1289332, there is a correspondence log
[…] it seems that this is caused by the Lightmap Encoding being set to “High Quality” in the Player Settings. In previous versions it was set to “Normal Quality” by default, that’s why the problem didn’t appear. Could you try changing the Lightmap Encoding to the “Normal Quality” option and see if it helps to resolve the visual artifacts? (Edit->Project Settings->Player->Other Settings->Rendering->Lightmap Encoding)
I can confirm that the issue does not appear when the encoding is set to
“Normal Quality”.
and the issue was closed as rejected, since it is occurring only on WebGL 1.0, and there was a clean workaround available. We are in the process of minimizing any work necessary for WebGL 1.0, and hoping that Apple would finally ship WebGL 2.0… it has been 4.5 years now.
Hopefully that workaround resolves the issue for you as well!
